Installation Procedure

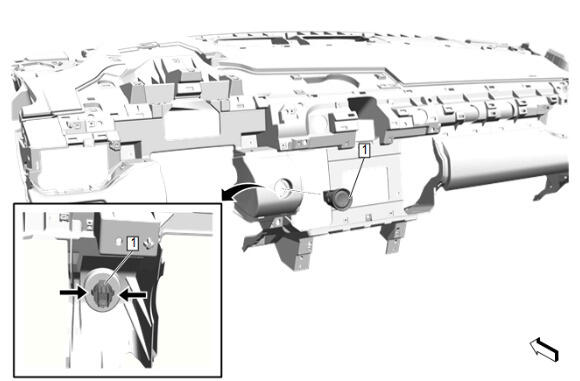

  1. GM6468966Courtesy of GENERAL MOTORS COMPANY

    Ignition and Start Switch (1) - Install

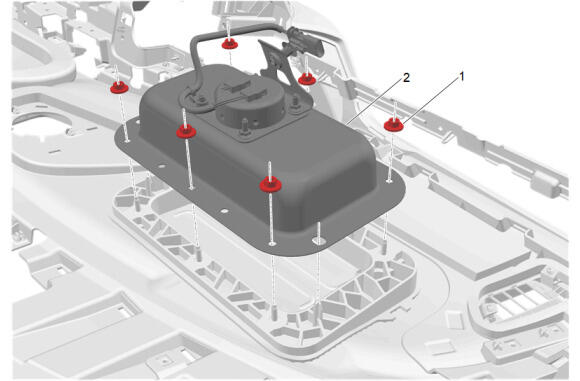

  2. GM5975102Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Never install the passenger airbag module into the instrument panel assembly that airbag module chute is cut. This may cause incorrect deployment when the passenger airbag is deployed.

    Instrument Panel Airbag (2) - Install

  3. CAUTION:

    Refer to Fastener Caution .

  4. Instrument Panel Airbag Nut (1) - Install and tighten [6x] - Fastener Specifications

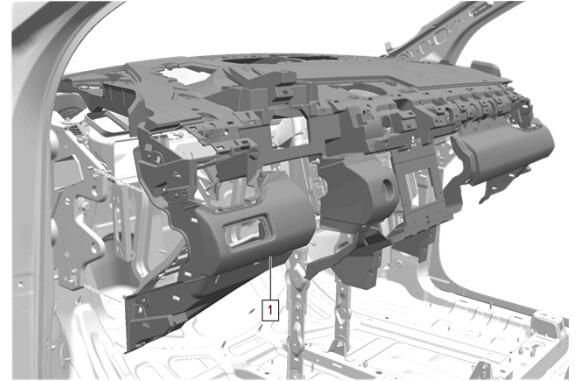

  5. GM6467043Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, position the instrument panel (1) in the vehicle.

  6. Connect the electrical connectors and install the wiring harness retainers as necessary.
  7. Instrument Panel (1) - Install

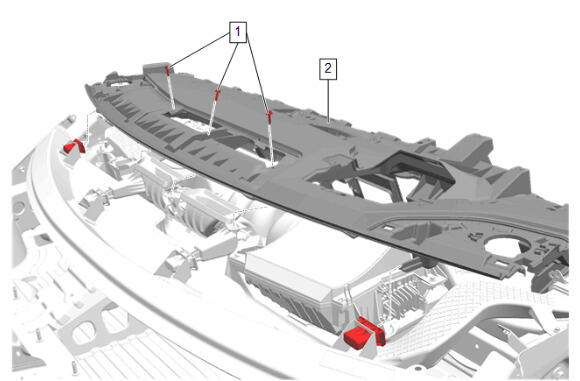

  8. GM6467042Courtesy of GENERAL MOTORS COMPANY

    Windshield Defroster Outlet Duct Bolt (1) - Install and tighten [3x] - Fastener Specifications

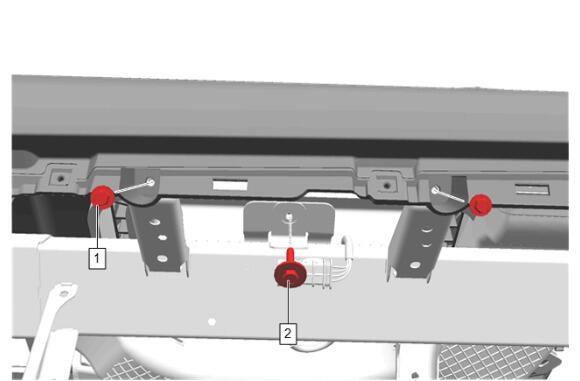

  9. GM6478732Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  10. Instrument Panel Airbag Bolt (2) - Install and tighten - Fastener Specifications
  11. Instrument Panel Bolt (1) - Install and tighten [2x] - Fastener Specifications

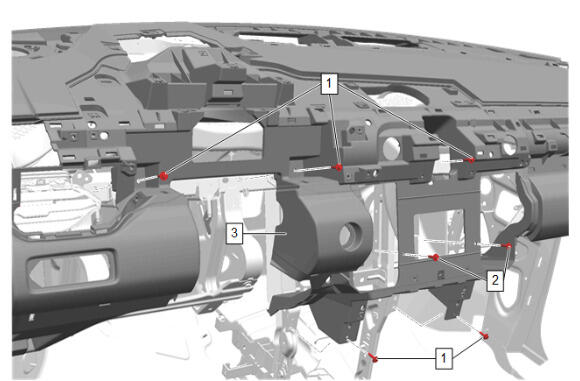

  12. GM6467040Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct Bolt (2) - Install and tighten [2x] - Fastener Specifications

  13. Instrument Panel Bolt (1) - Install and tighten [5x] - Fastener Specifications

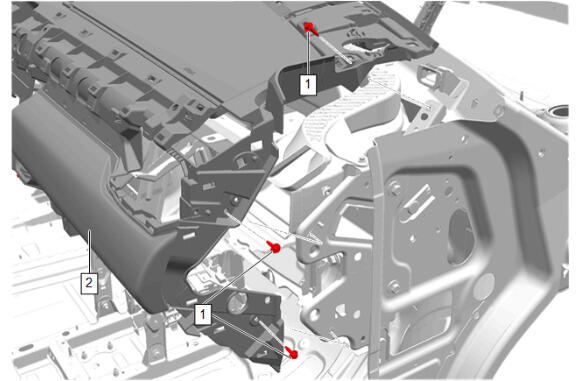

  14. GM6467039Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [3x] - Fastener Specifications

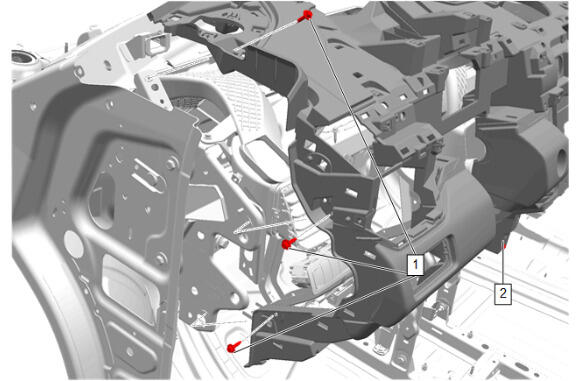

  15. GM6467038Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [3x] - Fastener Specifications

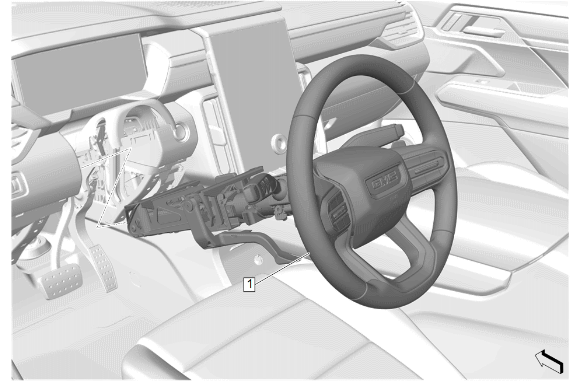

  16. GM6675687Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel and Column Assembly (1) - Install

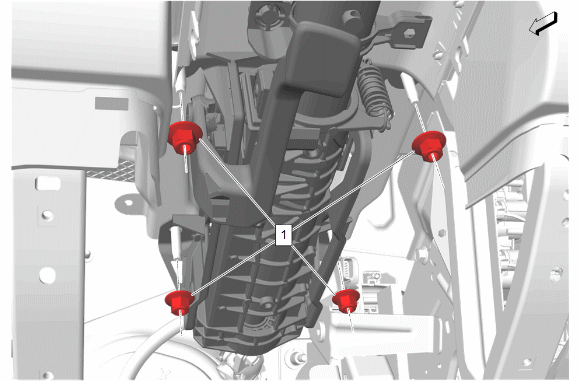

  17. GM6675686Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Support the steering column while installing the steering column nuts.

    Steering Column Nut (1) - Install and hand tighten [4x]

  18. Connect the electrical connector and install the wiring harness retainers as necessary.

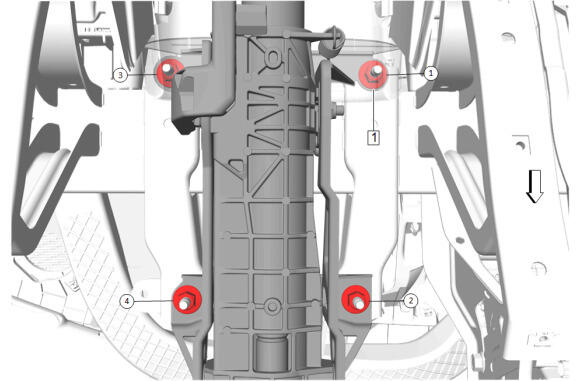

  19. GM6675691Courtesy of GENERAL MOTORS COMPANY

    Steering Column Nut (1) - Tighten in sequence [4x] - Fastener Specifications

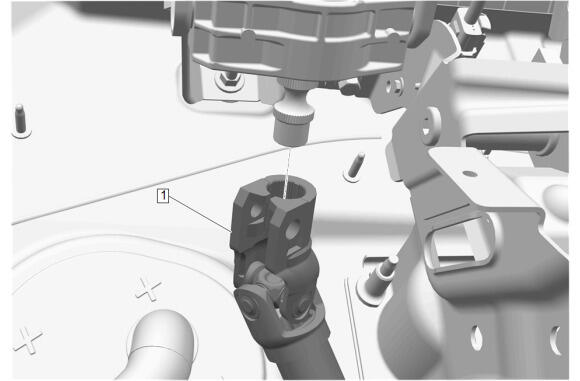

  20. GM6396228Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the match marks on the upper intermediate steering shaft and steering column are aligned.

    Intermediate Steering Shaft (1) @ Steering Column - Install

  21. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

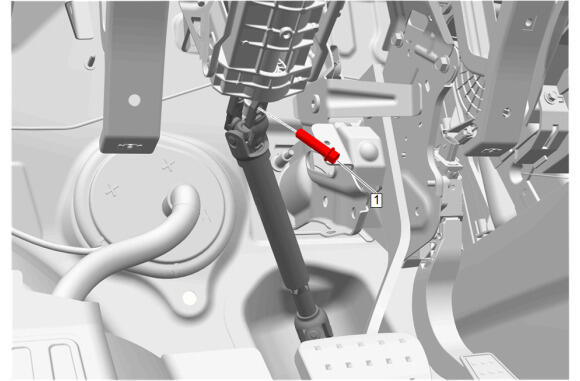

  22. GM6396226Courtesy of GENERAL MOTORS COMPANY

    Intermediate Steering Shaft Upper Bolt (1) - Install and tighten - Fastener Specifications

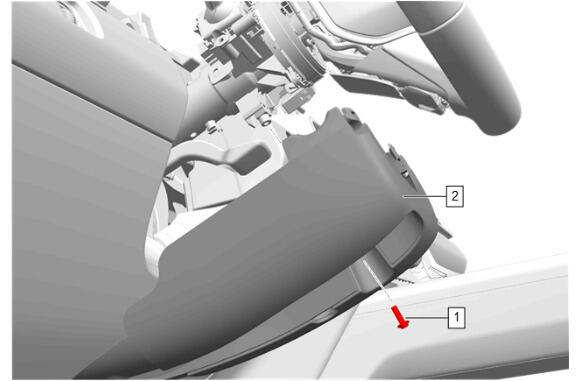

  23. GM6467071Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover (2) - Install

  24. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

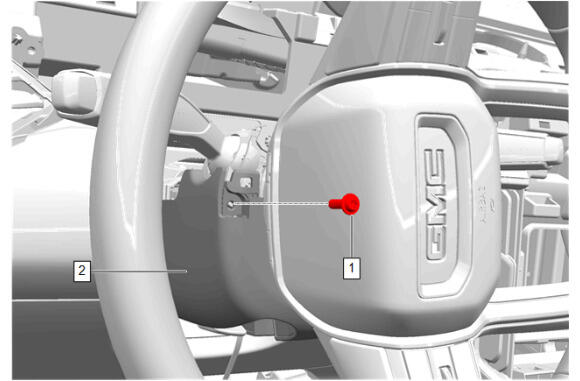

  25. GM6467070Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the left of the centered position.

  26. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

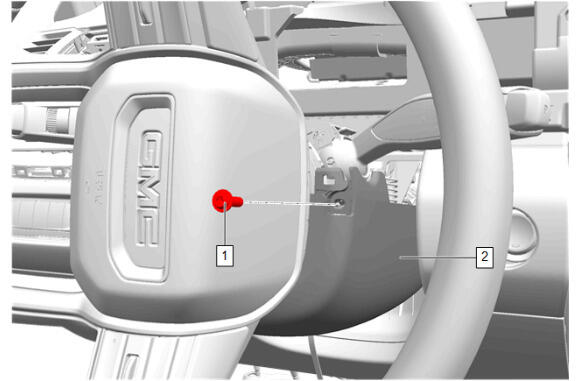

  27. GM6467069Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the right of the centered position.

  28. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
  29. Turn the steering wheel to the centered position.
  30. Remove the device used to prevent steering column rotation.

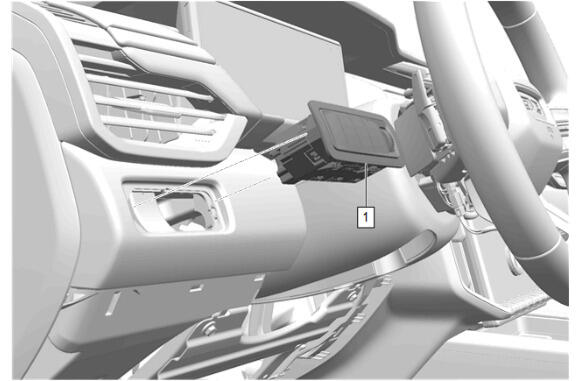

  31. GM6475077Courtesy of GENERAL MOTORS COMPANY

    Dimmer Switch (1) - Install

  32. Connect the electrical connector
  33. GM6467061Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (2) - Install

  34. Instrument Panel Trim Pad Bolt (1) - Install and tighten [3x] - Fastener Specifications
  35. GM6467060Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad Bolt (1) - Install and tighten [8x] - Fastener Specifications

  36. GM6467053Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (2) - Install

  37. Instrument Panel Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
  38. GM6467052Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Install and tighten [3x] - Fastener Specifications

  39. GM6467066Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator - Right Side (2) - Install

  40. Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install [3x]
  41. GM6467059Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (2) - Install

  42. Instrument Panel Knee Bolster Bolt (1) - Install and tighten [3x] - Fastener Specifications
  43. GM6467058Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Release Cable Handle (3) - Install

  44. Data Link Connector (2) - Install
  45. Data Link Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications
  46. GM6467063Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator - Left Side (2) - Install

  47. NOTE:

    Quantity of retainers may vary based on option content.

  48. Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install [4x]

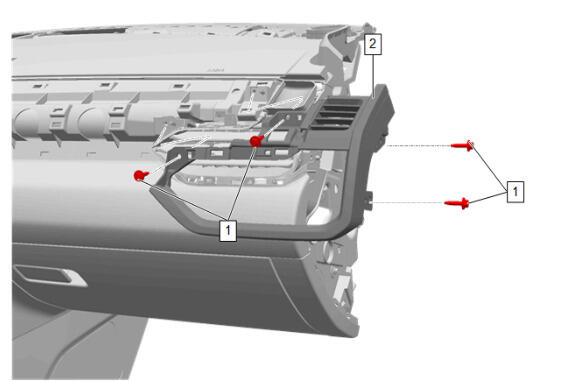

  49. GM6467037Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Air Outlet Bezel - Right Side (2) - Install

  50. Instrument Panel Air Outlet Bezel Bolt (1) - Install and tighten [4x] - Fastener Specifications
  51. GM6467068Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Right Side (1) - Install

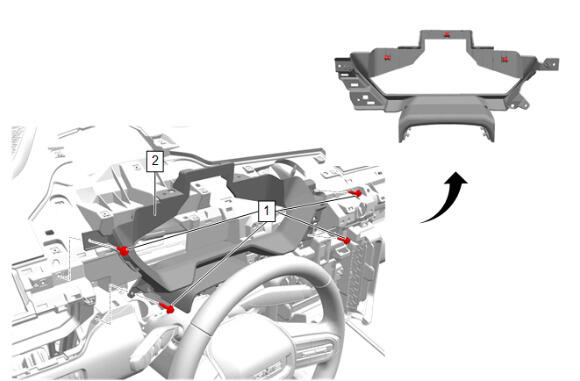

  52. GM6467044Courtesy of GENERAL MOTORS COMPANY

    Clip the instrument panel steering column upper trim cover to the instrument panel steering column lower trim cover.

  53. Instrument Panel Cluster Trim Plate (2) - Install
  54. Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [4x] - Fastener Specifications

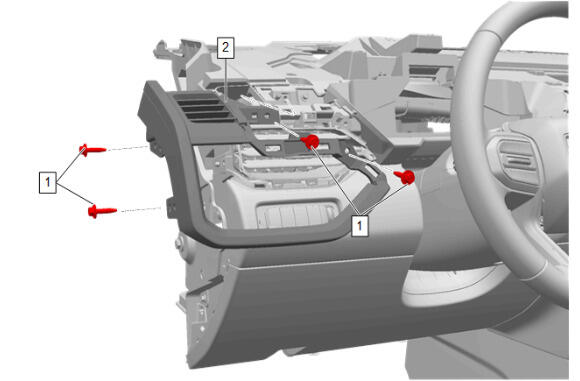

  55. GM6467036Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Air Outlet Bezel - Left Side (2) - Install

  56. Instrument Panel Air Outlet Bezel Bolt (1) - Install and tighten [4x] - Fastener Specifications
  57. GM6467067Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install

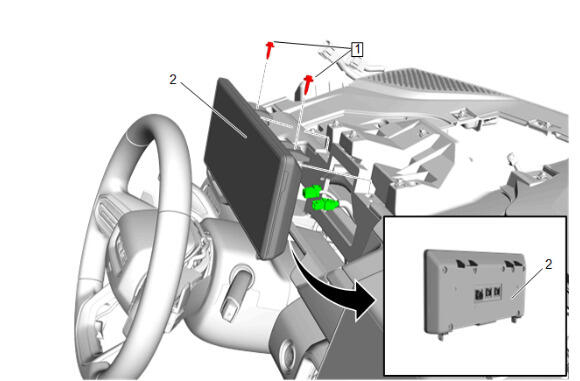

  58. GM6455254Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  59. Instrument Panel Cluster Control Module (2) - Install
  60. Instrument Cluster Bolt (1) - Install and tighten [2x] - Fastener Specifications
  61. GM6467086Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  62. Instrument Panel Trim Plate Applique - Right Side (1) - Install
  63. GM6467084Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Pad (1) - Install

  64. GM6467085Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique - Left Side (1) - Install

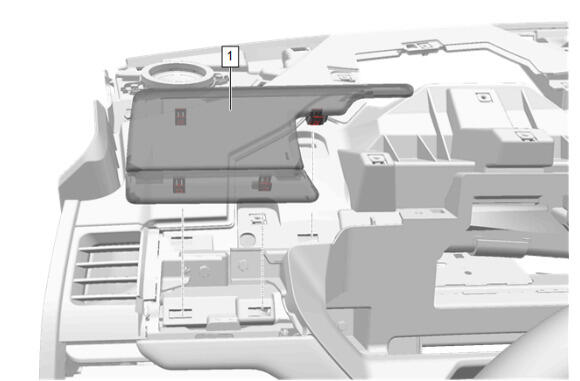

  65. GM6467083Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (1) - Install

  66. GM6467087Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel Bracket (2) - Install

  67. Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [10x] - Fastener Specifications
  68. GM6463571Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  69. Radio Control (2) - Install
  70. Radio Control Bolt (1) - Install and tighten [4x] - Fastener Specifications
  71. GM6467024Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation

  72. GM6467055Courtesy of GENERAL MOTORS COMPANY

    { If equipped } Connect the electrical connector.

  73. Instrument Panel Instrument Cluster Hood (2) - Install
  74. Instrument Panel Upper Trim Pad Bolt (1) - Install and tighten [5x] - Fastener Specifications
  75. GM6455252Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  76. Radio Front Center Speaker (2) - Install
  77. Radio Front Center Speaker Bolt (1) - Install and tighten [2x] - Fastener Specifications
  78. GM6455253Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Grille (1) - Install

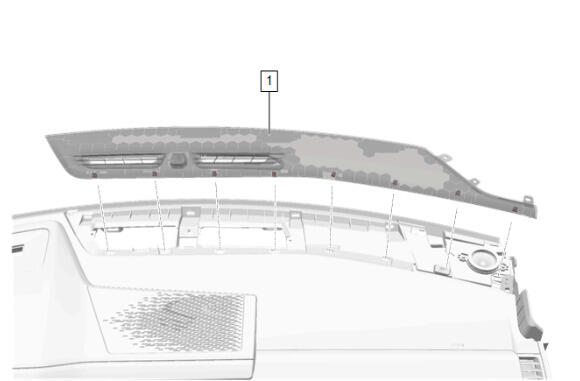

  79. GM6467054Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  80. Instrument Panel Extension (1) - Install

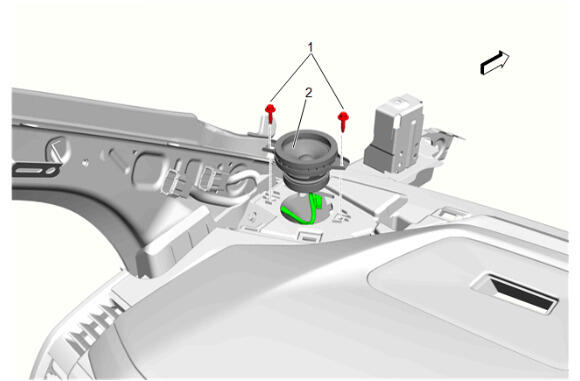

  81. GM6457489Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  82. Radio Front Speaker - Left Side and Right Side (2) - Install [2x]
  83. Radio Front Speaker Bolt - Left Side and Right Side (1) - Install and tighten [4x] - Fastener Specifications

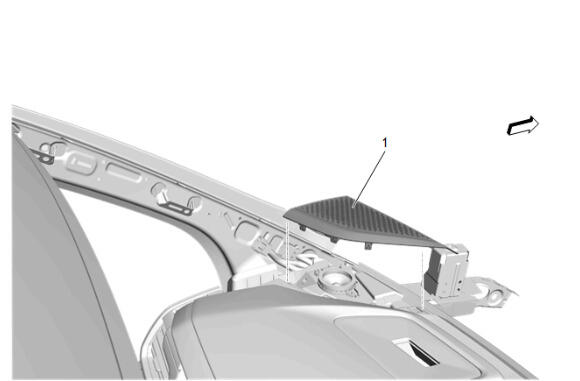

  84. GM6457488Courtesy of GENERAL MOTORS COMPANY

    Radio Front Speaker Grille - Left Side and Right Side (1) - Install [2x]

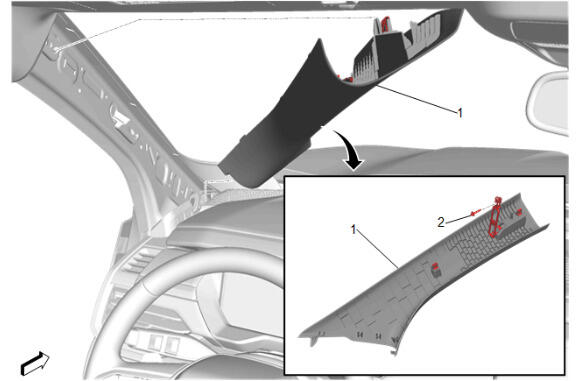

  85. GM6465288Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  86. Windshield Garnish Molding Bolt - Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
  87. Align the retainer clips with the slots in the A pillar and press both the left side and right side windshield garnish molding (1) into place.
  88. Windshield Garnish Molding - Left Side and Right Side (1) - Install [2x]
  89. Enable the SIR System. SIR Disabling and Enabling
