Rear Roof Antenna Cable Routing

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

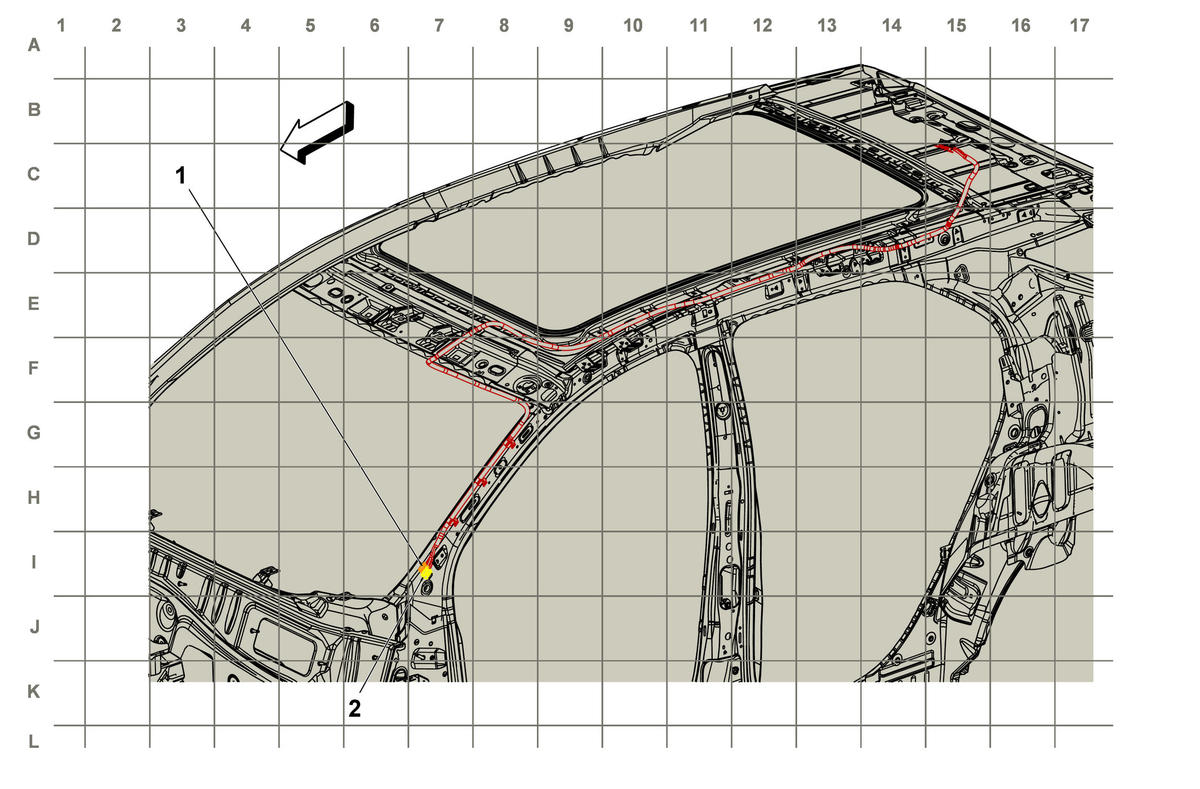

GM4595351Courtesy of GENERAL MOTORS COMPANY
Rear Roof Antenna Cable Routing

Harness Name Callout
X205 Antenna Jumper Harness to Instrument Panel Harness X205 Antenna Jumper Harness to Instrument Panel Harness ((IOS/IOT/IOU)-UE1) , or X205 Antenna Jumper to Instrument Panel Harness (IOR+U2K) , or X205 Antenna Jumper to Instrument Panel Harness (UE1) 1
X206 Antenna Harness to Instrument Panel Harness (-U2K) X206 Antenna Harness to Instrument Panel Harness (-U2K) 2
