Forward Lamp Harness Routing
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

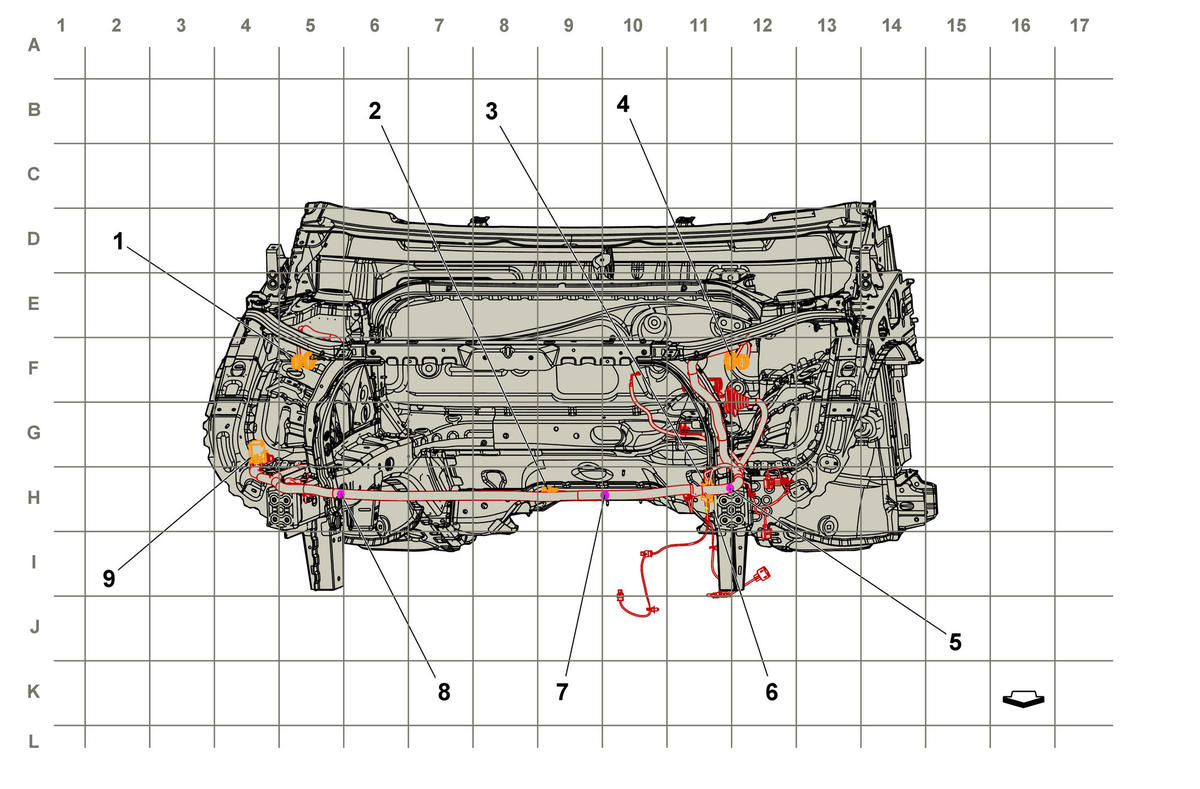

Forward Lamp Harness Routing
| Harness Name | Callout |
|---|---|
| X120 Forward Lamp Harness to Headlamp Assembly - Right X120 Forward Lamp Harness to Headlamp Assembly - Right (-V9V) , or X120 Forward Lamp Harness to Headlamp Assembly - Right (V9V) | 1 |
| X102 Forward Lamp Harness to Active Grille Air Shutter Harness X102 Forward Lamp Harness to Active Grille Air Shutter Harness (VTI) | 2 |
| X103 Forward Lamp Harness to Cooling Fan Harness X103 Forward Lamp Harness to Cooling Fan Harness | 3 |
| X110 Forward Lamp Harness to Headlamp Assembly - Left X110 Forward Lamp Harness to Headlamp Assembly - Left (-V9V) , or X110 Forward Lamp Harness to Headlamp Assembly - Left (V9V) | 4 |
| J109 Forward Lamp Harness (TR6) | 5 |
| X104 Cooling Fan Harness to Forward Lamp Harness X104 Cooling Fan Harness to Forward Lamp Harness | 6 |
| J108 Forward Lamp Harness | 7 |
| J107 Forward Lamp Harness (TR6 or TR7) | 8 |
| X101 Body Harness to Forward Lamp Harness X101 Body Harness to Forward Lamp Harness | 9 |
