X103 Forward Lamp Harness to Cooling Fan Harness
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

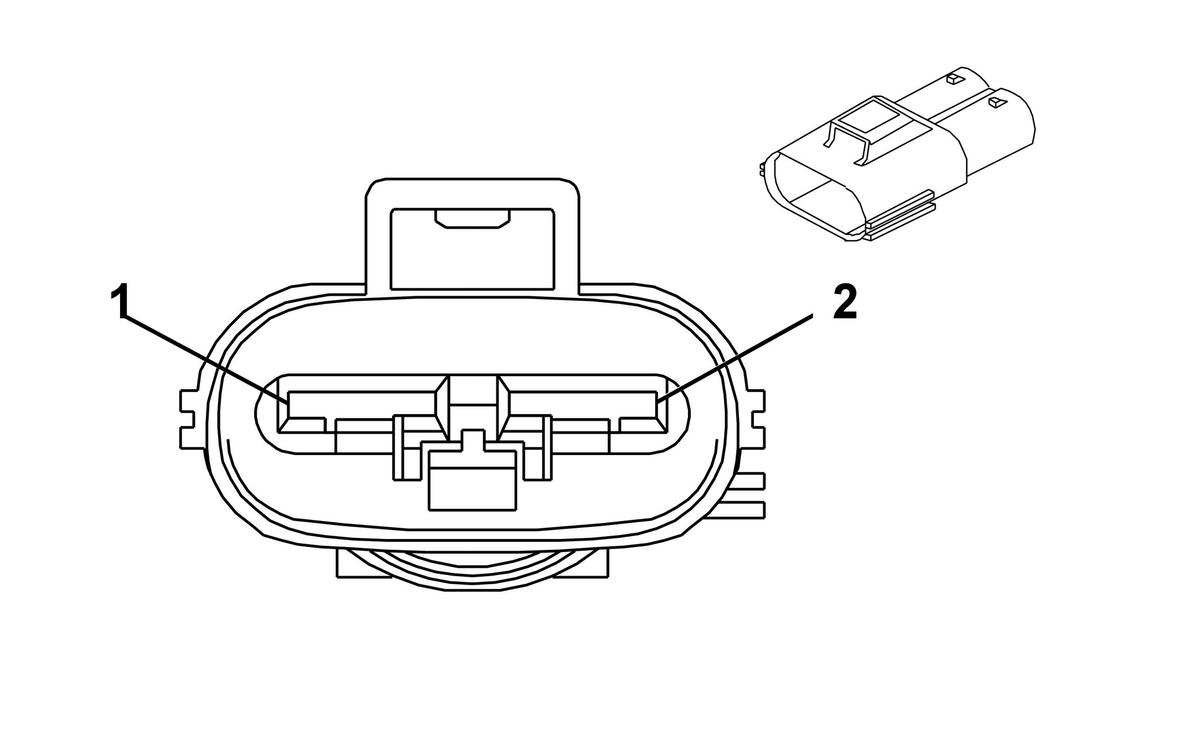

Connector Part Information
- Harness Type: Forward Lamp Harness
- OEM Connector: 7283-3215-30
- Service Connector: 13580875
- Description: 2 -Way F 375 Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Cooling Fan Harness
- OEM Connector: 7286-1076-30
- Service Connector: Service by Harness -
- Description: 2 -Way M 9.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-22 (RD) |
No Tool Required |
| II |
Not required |
J-35616-21 (RD) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
8 |
RD / BU |
302 |
I |
- |
Battery Positive Voltage |
1 |
8 |
RD / BU |
302 |
II |
- |
| 2 |
- |
- |
- |
- |
- |
Not Occupied |
2 |
- |
- |
- |
- |
- |
