X102 Forward Lamp Harness to Active Grille Air Shutter Harness (VTI)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

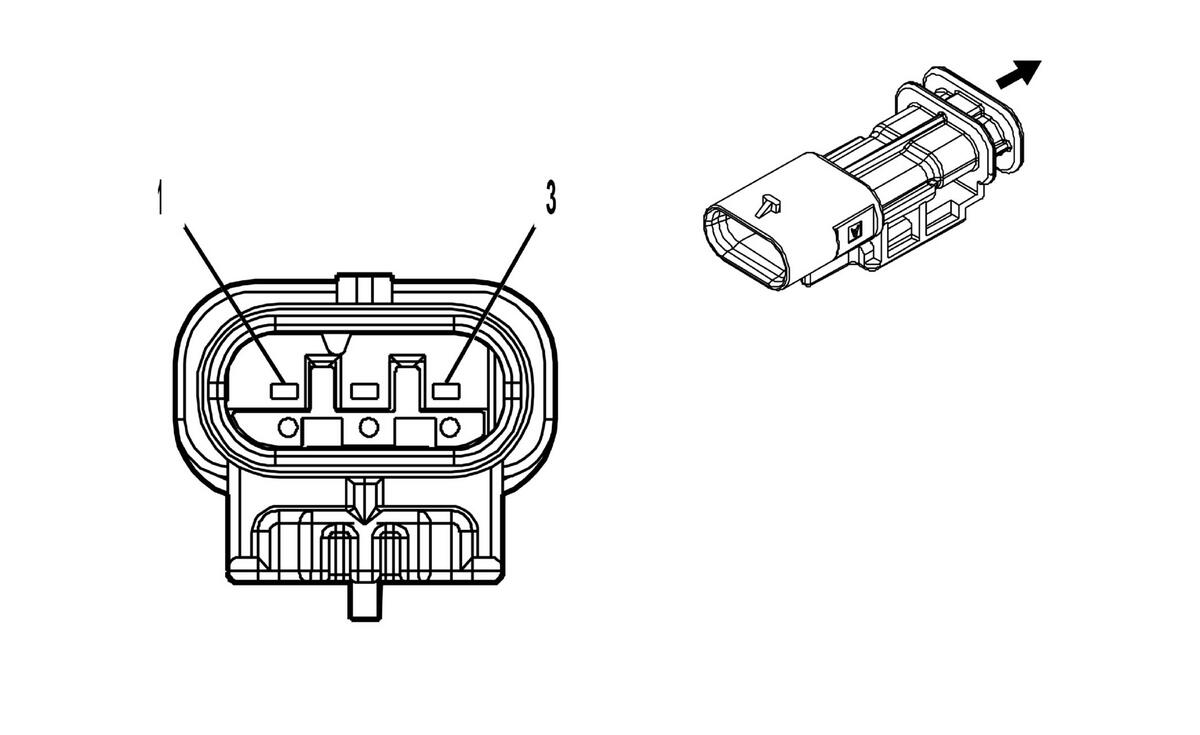

Connector Part Information
- Harness Type: Forward Lamp Harness
- OEM Connector: 13506522
- Service Connector: Not Available
- Description: 3 -Way F 1.2 MCON-LL Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Active Grille Air Shutter Harness
- OEM Connector: 34899-3021
- Service Connector: Service by Harness -
- Description: 3 -Way M 1.2 MCON-LL Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| II |
Not required |
J-35616-17 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.35 |
VT / BU |
5705 |
I |
- |
Powertrain Main Relay Control |
1 |
0.35 |
VT / BU |
5705 |
II |
- |
| 2 |
0.35 |
GN / VT |
4621 |
I |
- |
Engine Control Module LIN Bus 1 |
2 |
0.35 |
GN / VT |
4621 |
II |
- |
| 3 |
0.5 |
BK |
1150 |
I |
- |
Ground |
3 |
0.35 |
BK |
1150 |
II |
- |
