Driver Door Harness Routing (GMC)

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

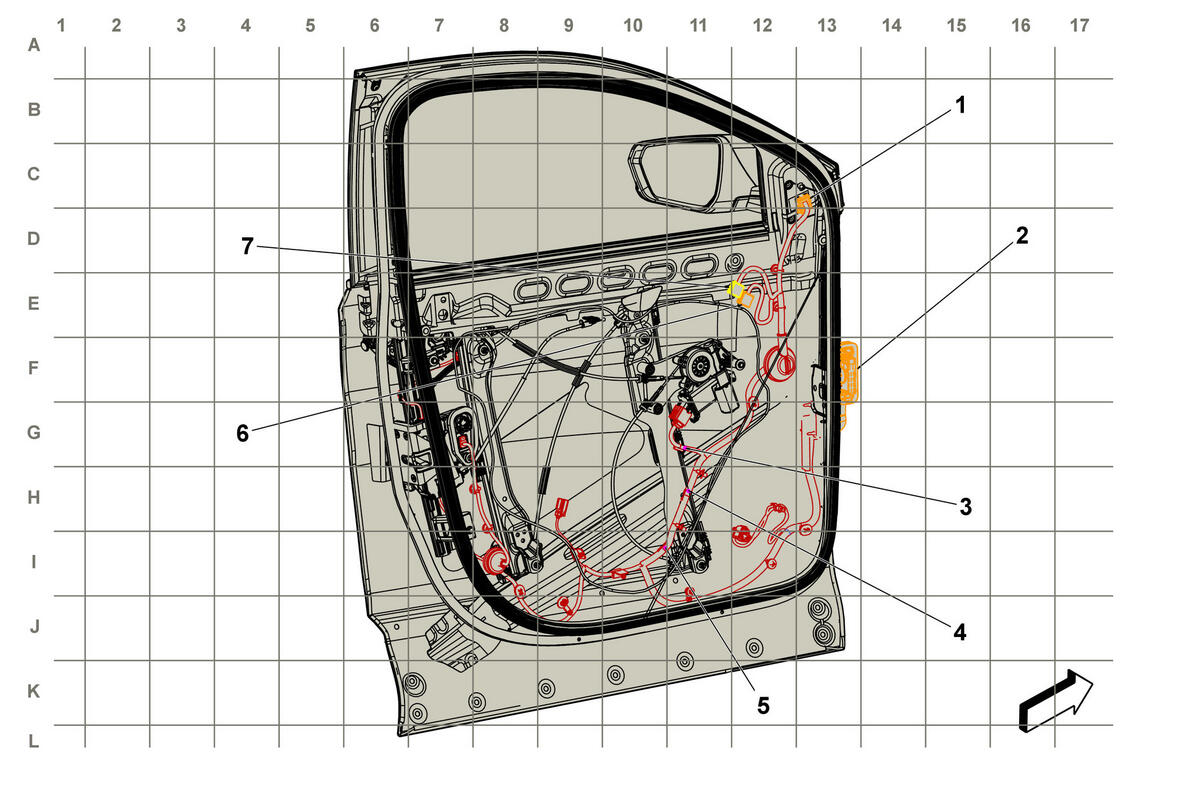

GM4650249Courtesy of GENERAL MOTORS COMPANY
Driver Door Harness Routing (GMC)

Harness Name Callout
X510 Driver Door Harness to Driver Outside Rearview Mirror X510 Driver Door Harness to Driver Outside Rearview Mirror 1
X500 Driver Door Harness to Body Harness X500 Driver Door Harness to Body Harness 2
J502 Driver Door Harness 3
J501 Driver Door Harness 4
J500 Driver Door Harness 5
X505 Driver Door Harness to Driver Door Trim Harness X505 Driver Door Harness to Driver Door Trim Harness 6
X506 Driver Door Harness to Driver Door Trim Harness X506 Driver Door Harness to Driver Door Trim Harness 7
