X500 Driver Door Harness to Body Harness

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

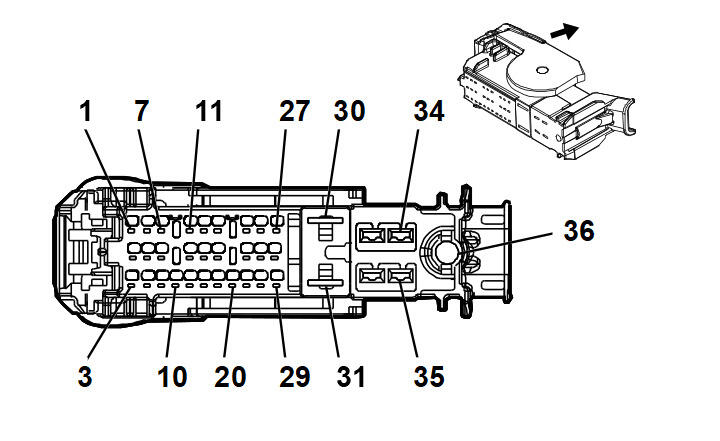

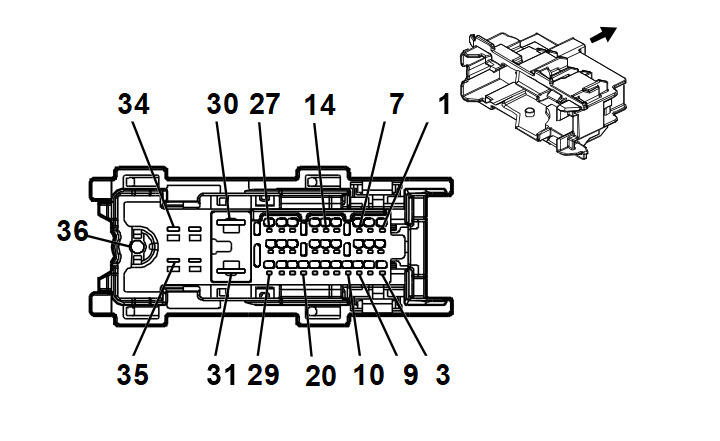

Connector Part Information Harness Type: Driver Door Harness OEM Connector: 13519700 Service Connector: Service by Harness - See Part Catalog Description: 36 -Way F 1.2, 2.8, 6.3, Coaxial Series (BK)	Connector Part Information Harness Type: Body Harness OEM Connector: 13519701 Service Connector: Not Available Description: 36 -Way M 1.2, 2.8, 6.3, Coaxial Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-16 (LT GN)	No Tool Required
II	Not required	J-35616-42 (RD)	No Tool Required
III	Not required	J-35616-4A (PU)	No Tool Required
IV	Not required	No Tool Required	No Tool Required
V	13575824	J-35616-5 (PU)	J-38125-11A
VI	19301536	J-35616-43 (RD)	J-38125-11A
VII	84616651	J-35616-17 (LT GN)	J-38125-215A
VIII	84888592	J-35616-5 (PU)	J-38125-11A
IX	Service by Cable	No Tool Required	J-38125-12A

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.35	RD / BN	1440	I	-	Battery Positive Voltage	1	0.35 0.35	RD / BN RD / BN	1440 1440	VII VII	- -CE1
2	0.35	WH	6816	I	-	Indicator Dimming Control	2	0.35	WH	6816	VII	-
3	0.35	BN / YE	2267	I	-	Outside Rearview Mirror Heater Control	3	0.35	BN / YE	2267	VII	-
4	0.5	BU / WH	1314	I	(DWK/DWL/DWW/DLF)	Left Front Turn Signal Lamp Control	4	0.5	BU / WH	1314	VII	(DWK/DWL/DWW)-DLF
5	0.35	GN / WH	7530	I	-	Driver Seat Memory Control Module LIN Bus 1	5	0.35	GN / WH	7530	VII	(A45/A74)
6	0.35	BN / WH	781	I	-	Driver Door Lock Switch Unlock Signal Driver Door Lock Switch Unlock Signal	6	0.35	BN / WH	781	VII	-
7	0.35	GY / YE	1760	I	UKC	Left Side Object Detection LED Control Left Side Object Detection LED Control	7	0.35	GY / YE	1760	VII	UKC
8	0.35	WH	3398	I	-	Passenger Outside Rearview Mirror Motor Common Control	8	0.35	WH	3398	VII	((DLF/DWK/DWW))/(DWL-A45)
9	0.35	YE / VT	3397	I	-	Passenger Outside Rearview Mirror Motor Up [+] Down [-] Control	9	0.35	YE / VT	3397	VII	((DLF/DWK/DWW))/(DWL-A45)
10	0.35	GN / BK	3396	I	-	Passenger Outside Rearview Mirror Motor Right [+] Left [-] Control	10	0.35	GN / BK	3396	VII	((DLF/DWK/DWW))/(DWL-A45)
11	0.35	VT / YE	3409	I	DWW	Outside Rearview Mirror Motor Unfold Control	11	0.35	VT / YE	3409	VII	DWW
12	0.35	WH / BN	3410	I	DWW	Mirror Outside Rearview Mirror Fold Control	12	0.35	WH / BN	3410	VII	DWW
13	0.35	BK / YE	1691	I	DD8+DWL	Automatic Day/Night Mirror Low Reference	13	0.35	BK / YE	1691	VII	DD8+DWL+UEU
14	0.35	VT / GY	3561	I	-	Driver Door Passive Entry Antenna Low Signal Driver Door Passive Entry Antenna Low Signal	14	0.35	VT / GY	3561	VII	-
15	0.35	WH	615	I	(A45/A74)	Seat Memory Switch Signal 1 Seat Memory Switch Signal 1	15	0.35	WH	615	VII	(A45/A74)
16	0.35	BU / GN	614	I	(A45/A74)	Seat Memory Switch Set Signal Seat Memory Switch Set Signal	16	0.35	BU / GN	614	VII	(A45/A74)
17	0.35	VT	3560	I	-	Driver Door Passive Entry Antenna High Signal Driver Door Passive Entry Antenna High Signal	17	0.35	VT	3560	VII	-
18	0.35	GY / BK	6113	I	(TB5/TC2)	Exterior Liftgate Control Switch Signal Exterior Liftgate Control Switch Signal	18	0.35	GY / BK	6113	VII	(TB5/TC2)
19	0.35	BK	1550	I	(A45/A74)	Ground Ground	19	0.35	BK	1550	VII	(A45/A74)
20	0.35	YE / WH	1690	I	DD8+DWL	Mirror Dimming Signal	20	0.35	YE / WH	1690	VII	DD8+DWL+UEU
21	0.35	GN / YE	6134	I	-	Body Control Module LIN Bus 3 Body Control Module LIN Bus 3	21	0.35	GN / YE	6134	VII	-
22	0.35	WH / YE	7557	I	-	Interior Door Handle Accent Lighting Control	22	0.35	WH / YE	7557	VII	-
23	0.35	WH / YE	3574	I	-	Driver Door Open Switch Signal	23	0.35	WH / YE	3574	VII	Z88
24	0.35	GN	6112	I	(TB5/TC2)	Liftgate Mode Switch Signal Liftgate Mode Switch Signal	24	0.35	GN	6112	VII	(TB5/TC2)
25	0.35	BK / OG	6628	I	(AJG/AY0)	Left Front Side Impact Sensor Low Reference Left Front Side Impact Sensor Low Reference	25	0.35	BK / OG	6628	VII	(AJG/AY0)
26	0.35	YE	6817	I	-	LED Backlight Dimming Control 1 LED Backlight Dimming Control 1	26	0.35	YE	6817	VII	-
27	0.35	OG / GN	2132	I	(AJG/AY0)	Left Front Side Impact Sensor Signal Left Front Side Impact Sensor Signal	27	0.35	OG / GN	2132	VII	(AJG/AY0)
28	0.35	BN / YE	780	I	-	Driver Door Lock Switch Lock Signal Driver Door Lock Switch Lock Signal	28	0.35	BN / YE	780	VII	-
29	0.35	GN / WH	3570	I	(ATH/AVJ)	Driver Door Handle Switch Signal Driver Door Handle Switch Signal	29	0.35	GN / WH	3570	VII	(ATH/AVJ)
30	-	-	-	-	-	Battery Positive Voltage	30	2.5	RD / BN	3640	VI	-
31	2.5	BK	1550	II	-	Ground Ground	31	2.5	BK	1550	VI	-
32	1.5 0.75	BU BU	201 201	III III	UQA UZ6	Left Front Speaker 1 [+] Control Left Front Speaker 1 [+] Control	32	1.5 0.75 0.75 1.5 0.75	BU BU BU BU BU	201 201 201 201 201	VIII V V VIII V	UQA+(IOS/IOT/IOU) NKC+UZ6-IOR - UQA+(IOS/IOT/IOU) NKC+UZ6-IOR
33	0.75	BU / WH	195	III	-	Door Lock Control	33	1 1	BU / WH BU / WH	195 195	V V	(MAH/MBC/MCX)-MAM -
34	1.5 0.75	BN / BU BN / BU	118 118	III III	UQA UZ6	Left Front Speaker [-] Control 1 Left Front Speaker [-] Control 1	34	0.75 0.75 1.5 0.75 0.75	BN / BU BN / BU BN / BU BN / BU BN / BU	118 118 118 118 118	V V VIII V V	NKC+UZ6-IOR - UQA+(IOS/IOT/IOU) NKC+UZ6-IOR -
35	0.75	BN / YE	294	III	-	Door Lock Actuator Unlock Control	35	0.75	BN / YE	294	V	-
36	-	-	-	-	-	Not Occupied	36	-	-	-	-	-
36C	0	BK	2628	IV	UV2	Left Sideview Camera Video Signal [+]	36C	0	BK	2628	IX	UV2
36S	0	BARE	2625	IV	UV2	Left Sideview Camera Video Signal [-]	36S	0	BARE	2625	IX	UV2
