X510 Driver Door Harness to Driver Outside Rearview Mirror
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

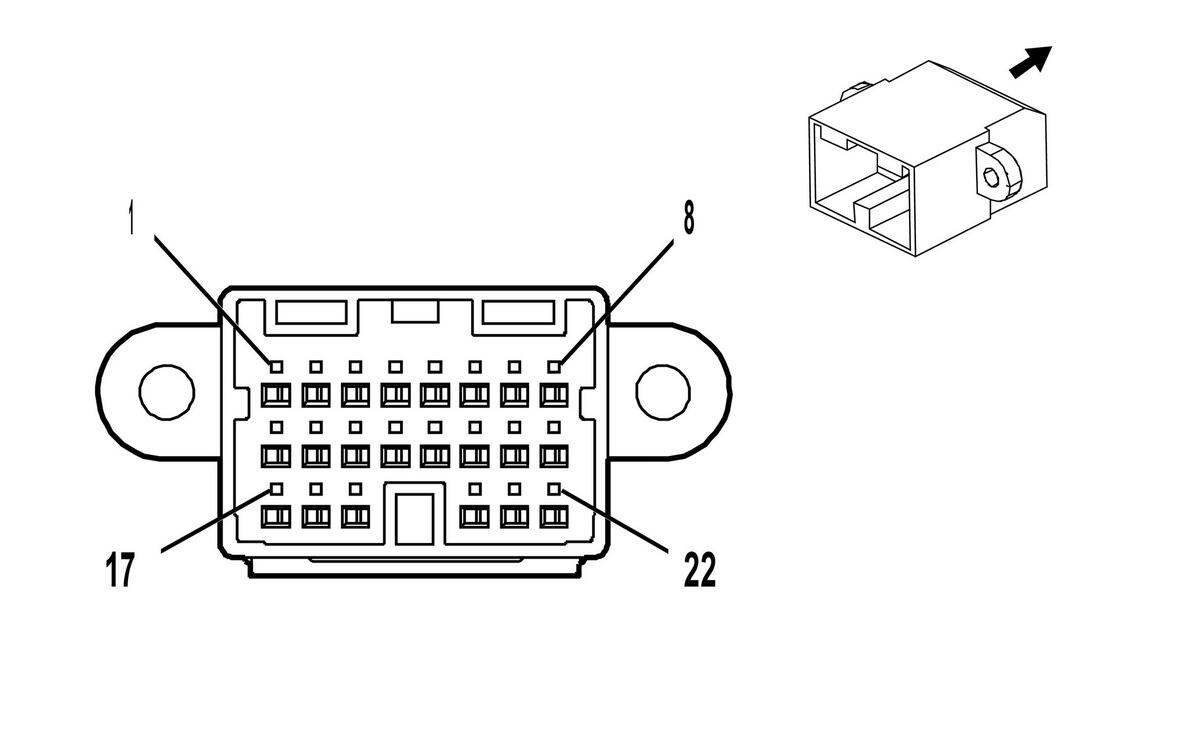

 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Driver Door Harness
- OEM Connector: 13589328
- Service Connector: Service by Harness -
- Description: 22 -Way F 0.64 Series (BK)
|
Connector Part Information
- Harness Type: Driver Outside Rearview Mirror Harness
- OEM Connector: Not Available
- Service Connector: Service by Harness -
- Description: 22 -Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| II |
Not required |
J-35616-65B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
- |
- |
Not Occupied |
1 |
- |
- |
- |
- |
- |
| 2 |
0.35 |
YE / WH |
1690 |
I |
DD8+DWL |
Mirror Dimming Signal |
2 |
0.35 |
YE / WH |
1690 |
II |
DD8+DWL |
| 3 |
- |
- |
- |
- |
- |
Not Occupied |
3 |
- |
- |
- |
- |
- |
| 4 |
0.35 |
BK / BN |
3393 |
I |
- |
Driver Outside Rearview Mirror Position Sensor Low Reference |
4 |
0.35 |
BK / BN |
3393 |
II |
- |
| 5 |
0.35 |
VT / YE |
3409 |
I |
DWW |
Outside Rearview Mirror Motor Unfold Control |
5 |
0.35 |
VT / YE |
3409 |
II |
DWW |
| 6 |
- |
- |
- |
- |
- |
Not Occupied |
6 |
- |
- |
- |
- |
- |
| 7 |
0.35 |
BK |
1550 |
I |
UKC |
Ground |
7 |
0.35 |
BK |
1550 |
II |
UKC |
| 8 |
- |
- |
- |
- |
- |
Not Occupied |
8 |
- |
- |
- |
- |
- |
| 9 |
0.35 |
WH / YE |
3395 |
I |
- |
Driver Outside Rearview Mirror Position Sensor Left [-] Right [+] Signal |
9 |
0.35 |
WH / YE |
3395 |
II |
- |
| 10 |
0.35 |
BN / YE |
2267 |
I |
- |
Outside Rearview Mirror Heater Control |
10 |
0.35 |
BN / YE |
2267 |
II |
- |
| 11 |
0.35 |
VT / BU |
3390 |
I |
- |
Driver Outside Rearview Mirror Motor Up [+] Down [-] Control |
11 |
0.35 |
VT / BU |
3390 |
II |
- |
| 12 |
- |
- |
- |
- |
- |
Not Occupied |
12 |
- |
- |
- |
- |
- |
| 13 |
0.35 |
BN / BK |
3389 |
I |
- |
Driver Outside Rearview Mirror Motor Right [+] Left [-] Control |
13 |
0.35 |
BN / BK |
3389 |
II |
- |
| 14 |
0.35 |
BK |
1550 |
I |
- |
Ground |
14 |
0.35 |
BK |
1550 |
II |
- |
| 15 |
0.35 |
YE / BN |
3391 |
I |
- |
Driver Mirror Motor Common Control |
15 |
0.35 |
YE / BN |
3391 |
II |
- |
| 16 |
- |
- |
- |
- |
- |
Not Occupied |
16 |
- |
- |
- |
- |
- |
| 17 |
0.5 |
BU / WH |
1314 |
I |
(DWK/DWL/DWW/DLF) |
Left Front Turn Signal Lamp Control |
17 |
0.5 |
BU / WH |
1314 |
II |
(DWK/DWL/DWW/DLF) |
| 18 |
0.35 |
GY / BN |
3394 |
I |
- |
Driver Outside Rearview Mirror Position Sensor Up [+] Down [-] Signal |
18 |
0.35 |
GY / BN |
3394 |
II |
- |
| 19 |
0.35 |
GY / YE |
1760 |
I |
UKC |
Left Side Object Detection LED Control |
19 |
0.35 |
GY / YE |
1760 |
II |
UKC |
| 20 |
0.35 |
BK / YE |
1691 |
I |
DD8+DWL |
Automatic Day/Night Mirror Low Reference |
20 |
0.35 |
BK / YE |
1691 |
II |
DD8+DWL |
| 21 |
0.35 |
VT / RD |
3392 |
I |
- |
Driver Outside Rearview Mirror Position Sensor 5V Reference |
21 |
0.35 |
VT / RD |
3392 |
II |
- |
| 22 |
0.35 |
WH / BN |
3410 |
I |
DWW |
Mirror Outside Rearview Mirror Fold Control |
22 |
0.35 |
WH / BN |
3410 |
II |
DWW |
