Driver Door Harness Routing (Chevrolet)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Driver Door Harness Routing (Chevrolet)

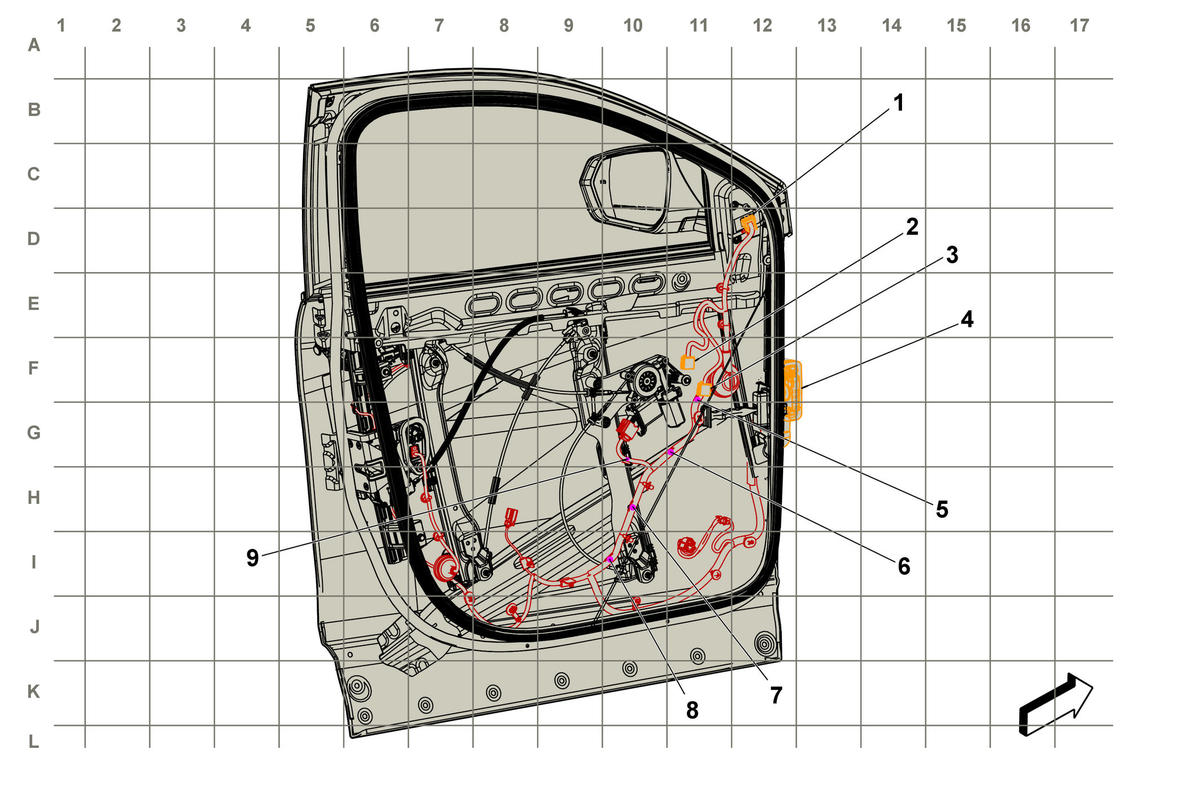

| Harness Name | Callout |
|---|---|
| X510 Driver Door Harness to Driver Outside Rearview Mirror X510 Driver Door Harness to Driver Outside Rearview Mirror | 1 |
| X506 Driver Door Harness to Driver Door Trim Harness X506 Driver Door Harness to Driver Door Trim Harness | 2 |
| X505 Driver Door Harness to Driver Door Trim Harness X505 Driver Door Harness to Driver Door Trim Harness | 3 |
| X500 Driver Door Harness to Body Harness X500 Driver Door Harness to Body Harness | 4 |
| J500 Driver Door Harness | 5 |
| J503 Driver Door Harness (DWW) | 6 |
| J501 Driver Door Harness | 7 |
| J504 Driver Door Harness (DWW) | 8 |
| J502 Driver Door Harness | 9 |
