Installation Procedure

  1. GM5605789Courtesy of GM

    Front End Upper Tie Bar (1) - Install

  2. Connect the wiring harness retainers and position the harness as necessary.
  3. GM5605762Courtesy of GM
    CAUTION:

    Refer to Fastener Caution .

    Front End Upper Tie Bar Bolt (1) - Install and tighten - Fastener Specifications

  4. GM5605761Courtesy of GM

    Front End Upper Tie Bar Bolt (1) - Install and tighten [3x] - Fastener Specifications

  5. GM5605760Courtesy of GM

    Front End Upper Tie Bar Bolt (1) - Install and tighten - Fastener Specifications

  6. GM5605759Courtesy of GM

    Front End Upper Tie Bar Bolt (1) - Install and tighten [3x] - Fastener Specifications

  7. GM5020580Courtesy of GM

    Intake Air Duct (2) - Reposition

  8. Intake Air Duct Retainer (1) - Install
  9. GM5584886Courtesy of GM

    Dual Horn (2) - Install

  10. Horn Nut (1) - Install and tighten - Fastener Specifications
  11. Connect the electrical connector.
  12. GM5568592Courtesy of GM

    Radiator Air Upper Baffle (1) - Install

  13. GM5572432Courtesy of GM

    Front End Sheet Metal Diagonal Brace @ Upper Tie Bar (2) - Install [2x]

  14. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  15. Front End Sheet Metal Diagonal Brace Bolt (1) - Install and tighten [4x] - Fastener Specifications
  16. GM5572426Courtesy of GM
    NOTE:
    • Some components not shown for graphic clarity.
    • Right side shown, left side similar.

    Front End Sheet Metal Diagonal Brace @ Radiator (2) - Install

  17. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  18. Front End Sheet Metal Diagonal Brace Bolt (1) - Install and tighten [4x] - Fastener Specifications

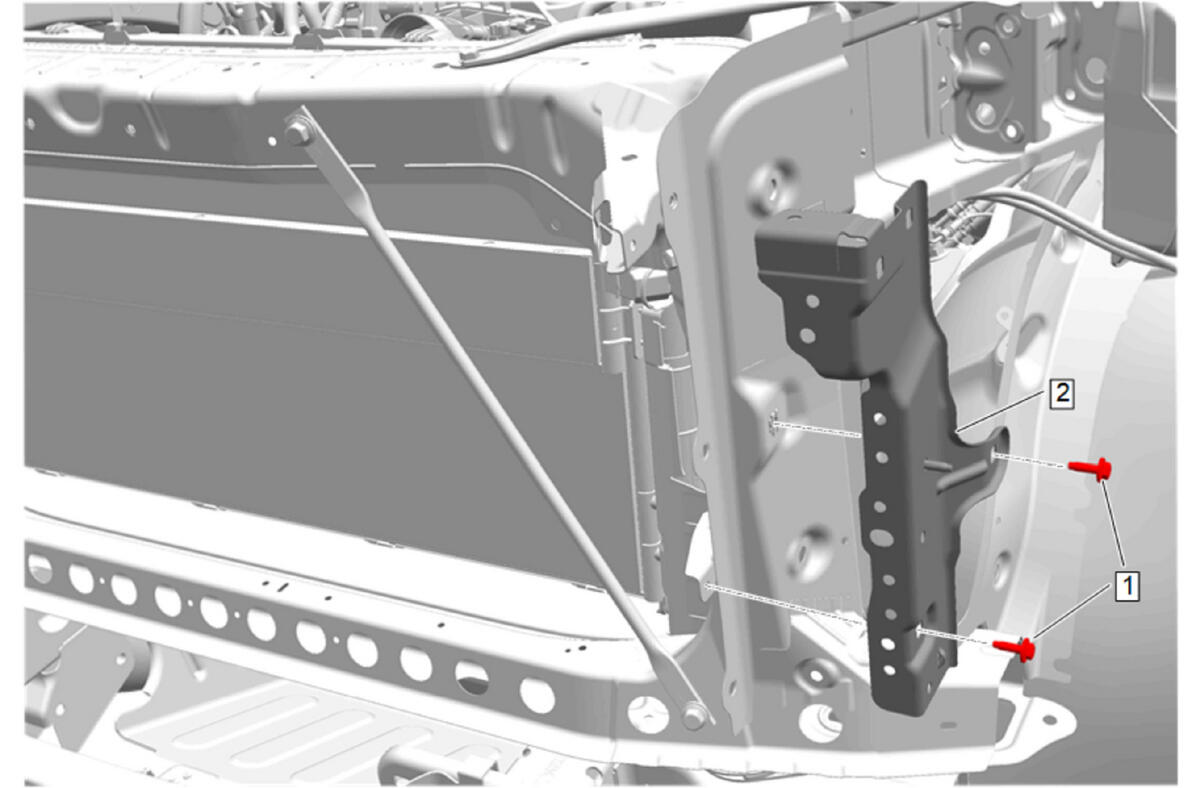

  19. GM5731353Courtesy of GM

    Headlamp Bracket (2) - Install [2x]

  20. Headlamp Bolt (1) - Install and tighten [2x] - Fastener Specifications

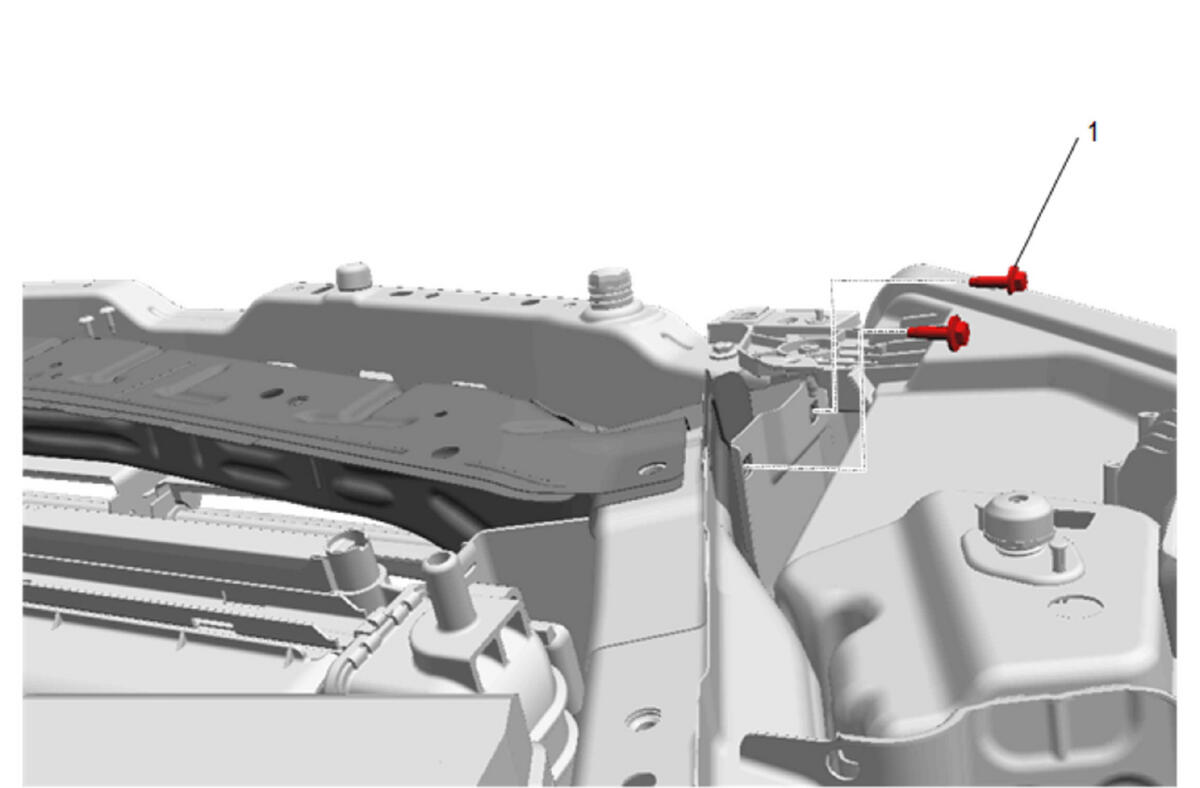

  21. GM5605763Courtesy of GM

    Front End Upper Tie Bar Bolt (1) @ Headlamp Bracket - Install and tighten [2x] - Fastener Specifications

  22. GM5552336Courtesy of GM

    Front Grille Support Reinforcement (2) - Install

  23. Front Grille Support Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
  24. GM5548894Courtesy of GM

    Front Bumper Shutter (2) - Install

  25. Front Bumper Shutter Bolt (1) - Install and tighten [9x] - Fastener Specifications
  26. GM5558254Courtesy of GM

    Connect the electrical connector. (2)

  27. Ambient Air Temperature Sensor (1) - Install
  28. GM5544169Courtesy of GM

    Front Bumper Fascia Upper Stiffener (1) - Install

  29. GM5544167Courtesy of GM

    Install and tighten the left and right side front bumper fascia upper stiffener bolt (2). Fastener Specifications

  30. Tighten the left and right side front bumper fascia upper stiffener nut (1). Fastener Specifications
  31. GM5605353Courtesy of GM

    Connect all electrical connectors.

  32. Secure the wiring harness retaining tab.
  33. Secure the front headlamp guide pin to the front bumper fascia guide (1).
  34. Front Headlamp (2) - Install [2x]
  35. GM5605352Courtesy of GM

    Headlamp Bolt (1) - Install and tighten [6x] - Fastener Specifications

  36. GM5605350Courtesy of GM

    Headlamp Bolt (1) - Install and tighten [6x] - Fastener Specifications

  37. GM5573123Courtesy of GM

    Reposition the hood primary latch release cable (1) from the upper tie bar.

  38. GM5573765Courtesy of GM

    Hood Primary Latch Release Cable (3) - Install

  39. Connect the electrical connector.
  40. Hood Primary and Secondary Latch (2) - Install
  41. Hood Primary and Secondary Latch Bolt (1) - Install and tighten [2x] - Fastener Specifications
  42. GM5589691Courtesy of GM

    Front Bumper Fascia (2) - Install - Front Bumper Fascia Removal and Installation (with WTX) , or Front Bumper Fascia Removal and Installation (with RC1)

  43. After installation, aim the front headlamps. Front Headlamp Aiming
