Fastener Specifications

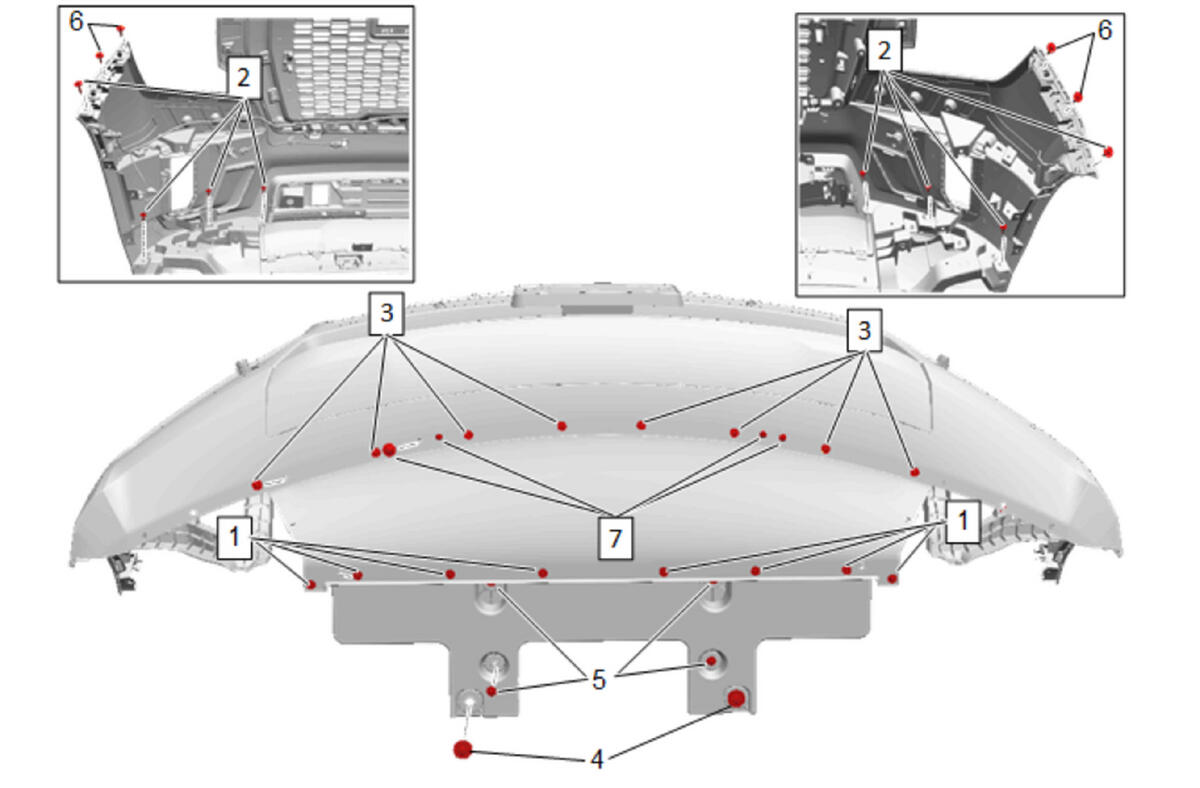

GM5587740Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia with WTX

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Air Deflector Bolt [ 8x ] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (with WTX) , or Front Bumper Fascia Removal and Installation (with RC1)
2 Front Bumper Fascia Bolt [ 8x ] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (with WTX) , or Front Bumper Fascia Removal and Installation (with RC1)
3 Front Bumper Fascia Extension Bolt @ Fascia [ 8x ] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (with WTX) , or Front Bumper Fascia Removal and Installation (with RC1)
4 Front Bumper Fascia Extension Bolt @ Skid Shield [ 2x ] - - 22 N.m (16 lb ft) Front Bumper Fascia Removal and Installation (with WTX) , or Front Bumper Fascia Removal and Installation (with RC1)
5 Front Bumper Fascia Extension Bolt [ 4x ] - - 9 N.m (80 lb in) Front Bumper Fascia Removal and Installation (with WTX) , or Front Bumper Fascia Removal and Installation (with RC1)
6 Front Bumper Fascia Guide Bolt [ 4x ] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (with WTX) , or Front Bumper Fascia Removal and Installation (with RC1)
7 Front Bumper Fascia Lower Bracket Bolt [ 4x ] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (with WTX) , or Front Bumper Fascia Removal and Installation (with RC1)

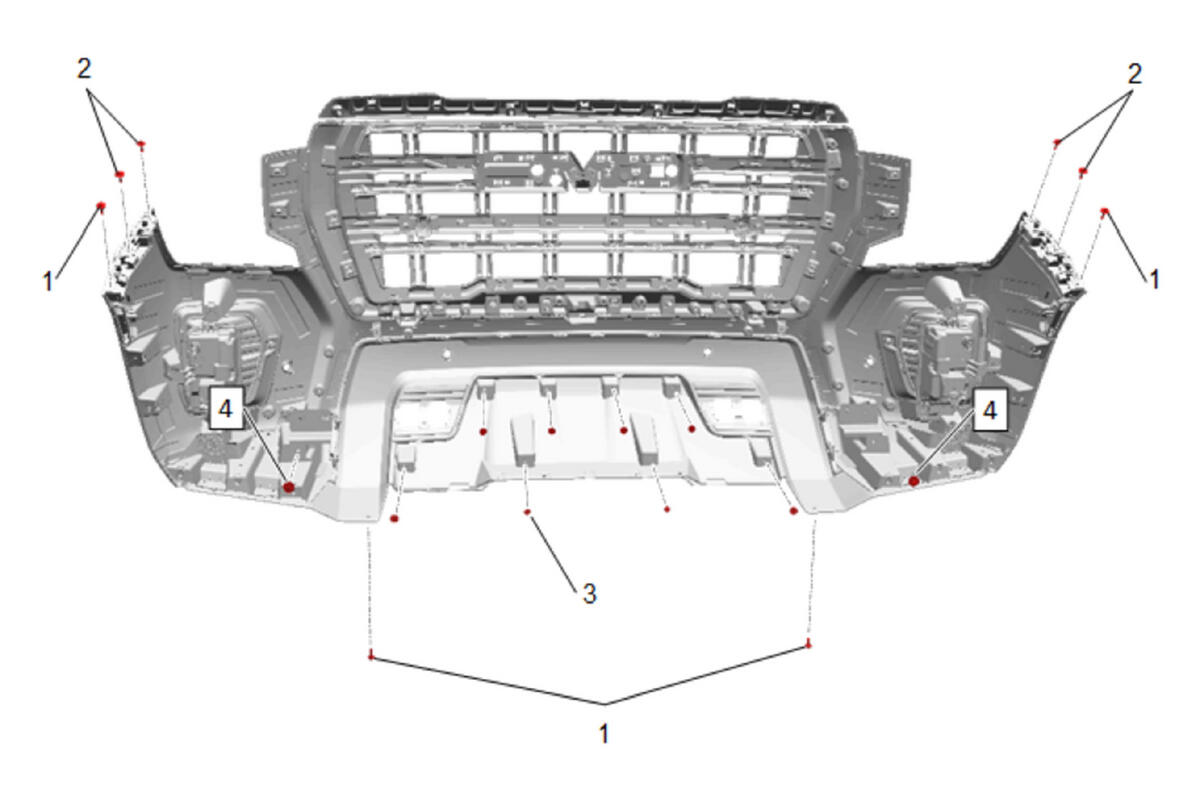

GM5621223Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia with RC1

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt [ 4x ] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (with WTX) , or Front Bumper Fascia Removal and Installation (with RC1)
2 Front Bumper Fascia Guide Bolt [ 4x ] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (with WTX) , or Front Bumper Fascia Removal and Installation (with RC1)
Front Bumper Fascia Guide Replacement
3 Front Bumper Fascia Skid Plate Bolt [ 8x ] - - 9 N.m (80 lb in) Front Bumper Fascia Skid Plate Replacement (without AT4) , or Front Bumper Fascia Skid Plate Replacement (with AT4)
4 Front Bumper Fascia Support Brace Bolt [ 2x ] - - 9 N.m (80 lb in) Front Bumper Fascia Removal and Installation (with WTX) , or Front Bumper Fascia Removal and Installation (with RC1)

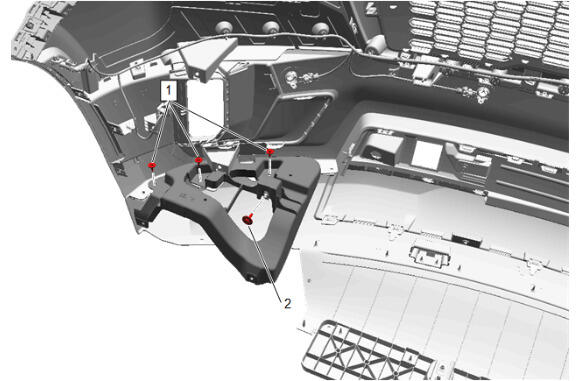

GM5589760Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Reinforcement and Brace Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Reinforcement Bolt - - 2.5 N.m (22 lb in) Front Bumper Fascia Lower Reinforcement Replacement
2 Front Bumper Fascia Support Brace Bolt - - 9 N.m (80 lb in) Front Bumper Fascia Removal and Installation (with WTX) , or Front Bumper Fascia Removal and Installation (with RC1)
GM5543919Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Seal

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt @ fascia seal [ 5x ] - - 2.5 N.m (22 lb in) Front Bumper Fascia Seal Replacement

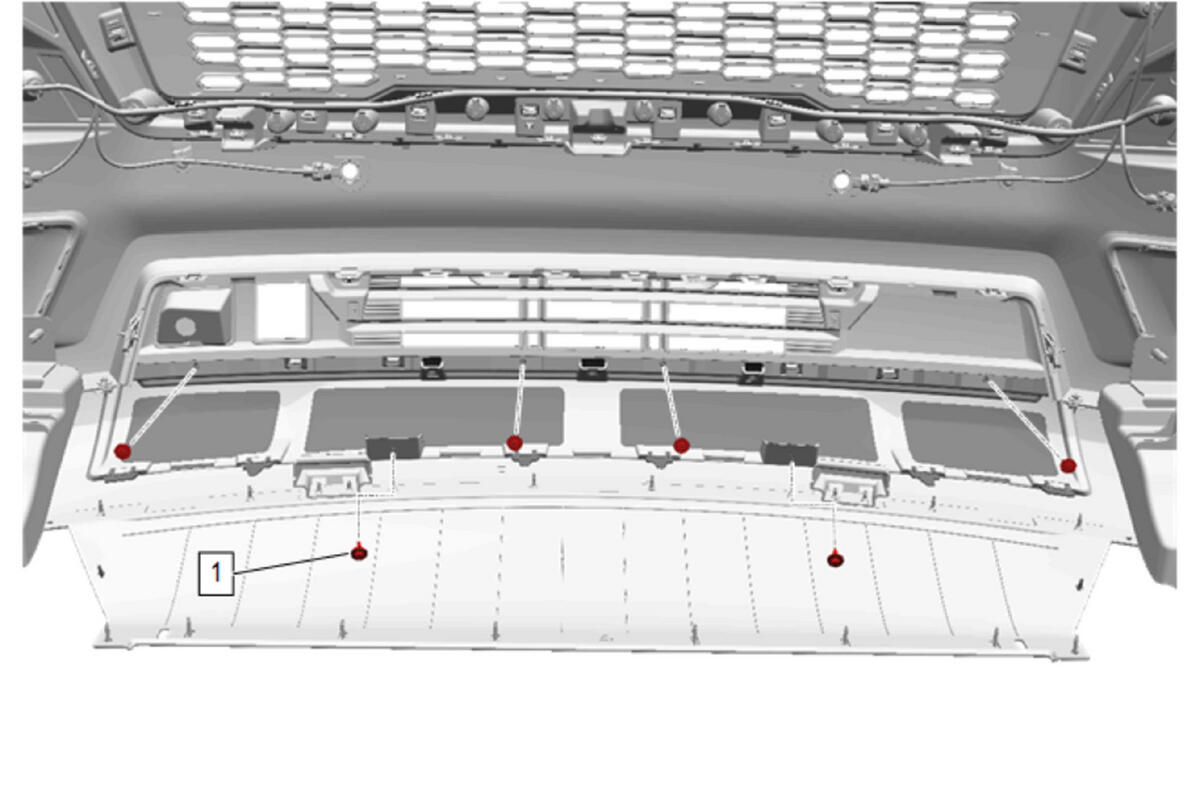

GM5591703Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Skid Plate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Skid Plate Bolt [ 6x ] - - 2.5 N.m (22 lb in) Front Bumper Fascia Skid Plate Replacement (without AT4) , or Front Bumper Fascia Skid Plate Replacement (with AT4)
GM5607674Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Upper Stiffener

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Upper Stiffener Bolt [ 2x ] - - 9 N.m (80 lb in) Front Bumper Fascia Upper Stiffener Replacement
2 Front Bumper Fascia Upper Stiffener Nut [ 2x ] - - 9 N.m (80 lb in) Front Bumper Fascia Upper Stiffener Replacement

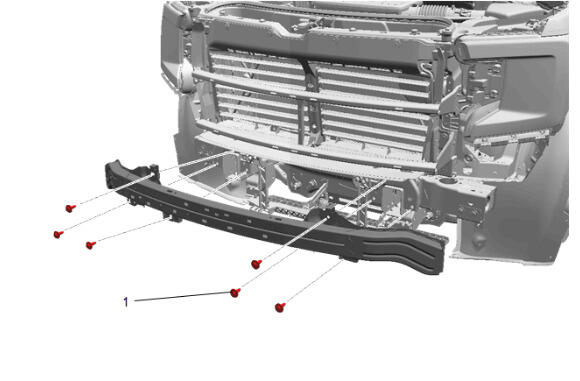

GM5591972Courtesy of GENERAL MOTORS COMPANY
Front Bumper Impact Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Impact Bar Bolt [ 6x ] - - 58 N.m (43 lb ft) Front Bumper Impact Bar Replacement
GM5590581Courtesy of GENERAL MOTORS COMPANY
Front Bumper Lower Shutter

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Shutter Bolt [ 4x ] - - 6 N.m (53 lb in) Front Bumper Lower Shutter Replacement
GM5590580Courtesy of GENERAL MOTORS COMPANY
Front Bumper Shutter

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Shutter Bolt [ 9x ] - - 6 N.m (53 lb in) Front Bumper Shutter Replacement
GM5590592Courtesy of GENERAL MOTORS COMPANY
Front Grille Support Reinforcement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Grille Support Bracket Bolt [ 4x ] - - 9 N.m (80 lb in) Front Grille Support Reinforcement Replacement

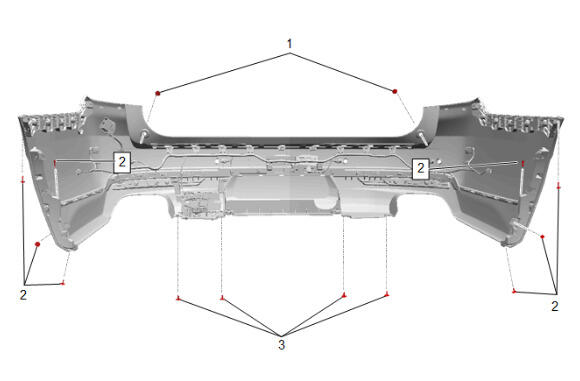

GM5591376Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Adjust Bumper Bolt
[ 2x ]		 - - 2.5 N.m (22 lb in) Rear Bumper Fascia Removal and Installation
2 Rear Bumper Fascia Bolt [ 8x ] - - 2.5 N.m (22 lb in) Rear Bumper Fascia Removal and Installation
3 Rear Bumper Fascia Lower Bracket Bolt [ 4x ] - - 7 N.m (62 lb in) Rear Bumper Fascia Removal and Installation

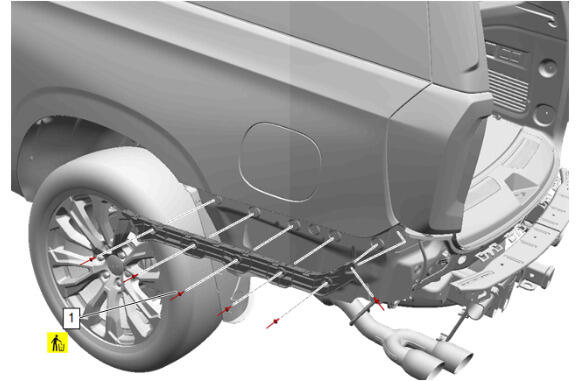

GM5591426Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia Guide

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Guide Rivet [ 6x ] Yes - - Rear Bumper Fascia Guide Replacement
GM5569478Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Impact Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Impact Bar Bolt @ Lower Frame
[ 3x ]		 - - 160 N.m (118 lb ft) Rear Bumper Impact Bar Replacement
2 Rear Bumper Impact Bar Bolt @ Outer Frame [ 2x ] - - 100 N.m (74 lb ft) Rear Bumper Impact Bar Replacement
