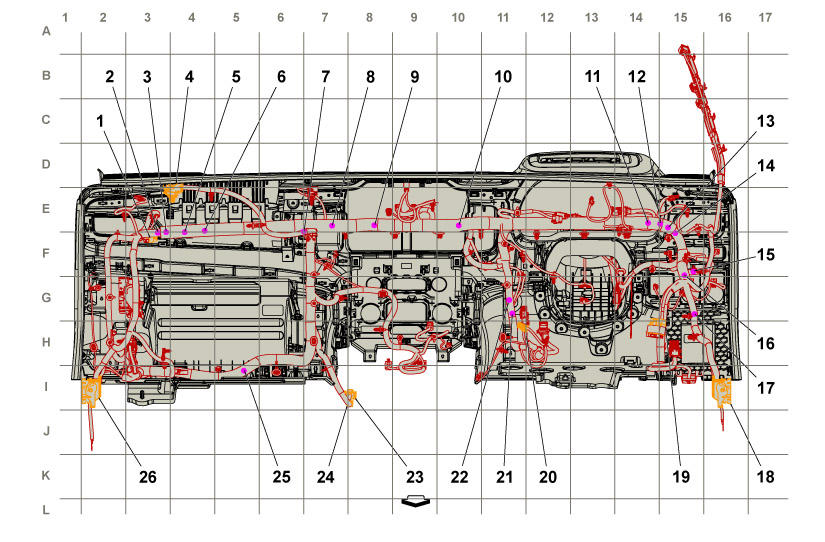

Instrument Panel - Instrument Panel Harness (-GFW-5W4-9C1)
Instrument Panel - Instrument Panel Harness (-GFW-5W4-9C1)
| Harness Name | Callout |
|---|---|
| X254 Instrument Panel Harness to Passenger Instrument Panel Air Bag Jumper Harness X254 Instrument Panel Harness to Passenger Instrument Panel Air Bag Jumper Harness | 1 |
| J253 Instrument Panel Harness | 2 |
| J252 Instrument Panel Harness | 3 |
| X270 Headliner Harness to Instrument Panel Harness X270 Headliner Harness to Instrument Panel Harness | 4 |
| J251 Instrument Panel Harness | 5 |
| J250 Instrument Panel Harness | 6 |
| J243 Instrument Panel Harness | 7 |
| J248 Instrument Panel Harness | 8 |
| J249 Instrument Panel Harness | 9 |
| J242 Instrument Panel Harness | 10 |
| J238 Instrument Panel Harness | 11 |
| J237 Instrument Panel Harness | 12 |
| J236 Instrument Panel Harness | 13 |
| J235 Instrument Panel Harness | 14 |
| J254 Instrument Panel Harness | 15 |
| J234 Instrument Panel Harness | 16 |
| J231 Instrument Panel Harness | 17 |
| X225 Instrument Panel Harness to Body Harness X225 Instrument Panel Harness to Body Harness | 18 |
| X250 Trailer Brake Provisional Harness to Instrument Panel Harness ((Z82-JL1)+Early) X250 Trailer Harness to Instrument Panel Harness | 19 |
| X257 Instrument Panel Harness to HVAC Harness X257 Instrument Panel Harness to HVAC Harness | 20 |
| J241 Instrument Panel Harness | 21 |
| J246 Instrument Panel Harness | 22 |
| X256 Instrument Panel Harness to Floor Console Harness X256 Instrument Panel Harness to Floor Console Harness (D07/DCK) | 23 |
| X255 Floor Console Harness to Instrument Panel Harness (USR) X255 Floor Console to Instrument Panel (USR) | 24 |
| J247 Instrument Panel Harness | 25 |
| X275 Instrument Panel Harness to Body Harness X275 Instrument Panel Harness to Body Harness | 26 |
