X255 Floor Console to Instrument Panel (USR)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

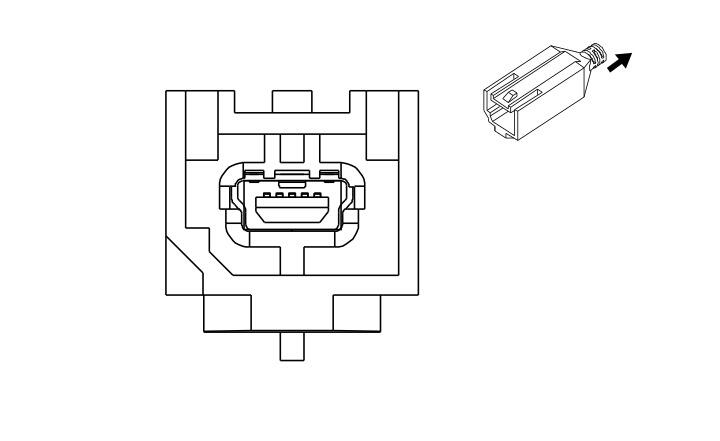

Connector Part Information
- Harness Type: Floor Console LVDS
- OEM Connector: 13584760
- Service Connector: Service by Cable Assembly -
- Description: 5-Way F 2.0 Mini-B USB Type (BK)
|
Connector Part Information
- Harness Type: Instrument Panel LVDS
- OEM Connector: 13576672
- Service Connector: Service by Cable Assembly -
- Description: 5-Way M 2.0 Mini-B USB Type (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
LVDS |
- |
I |
- |
Auxiliary Audio/Video Jack 2 USB Signal |
- |
- |
LVDS |
- |
I |
- |
