Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

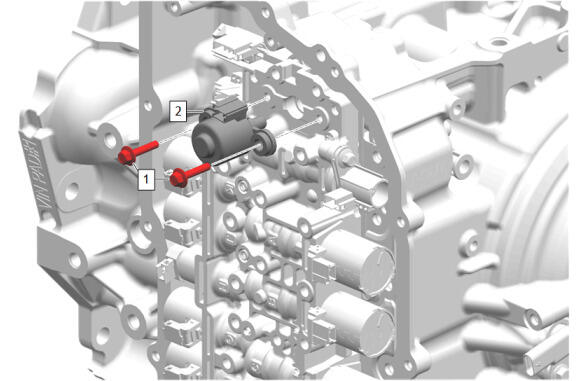

Park Inhibitor Solenoid (2) - Install
Control Valve Solenoid Body Bolt (1) - Install and tighten [2x] 8 N.m (71 lb in)
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Install the control valve body cover (1) to the transmission. Control Valve Body Cover Replacement (LGX) , or Control Valve Body Cover Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

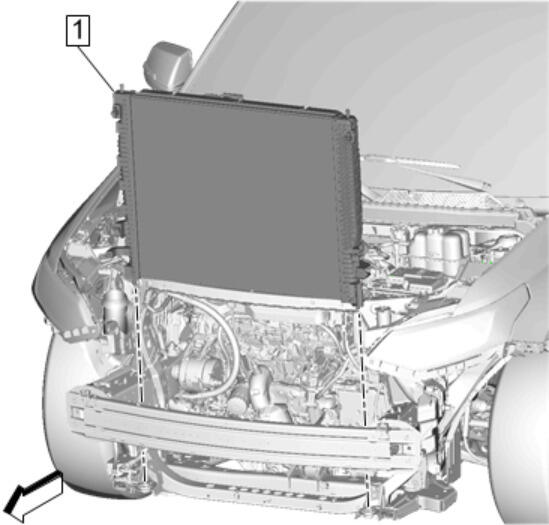

Engine Coolant Fan Module Radiator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

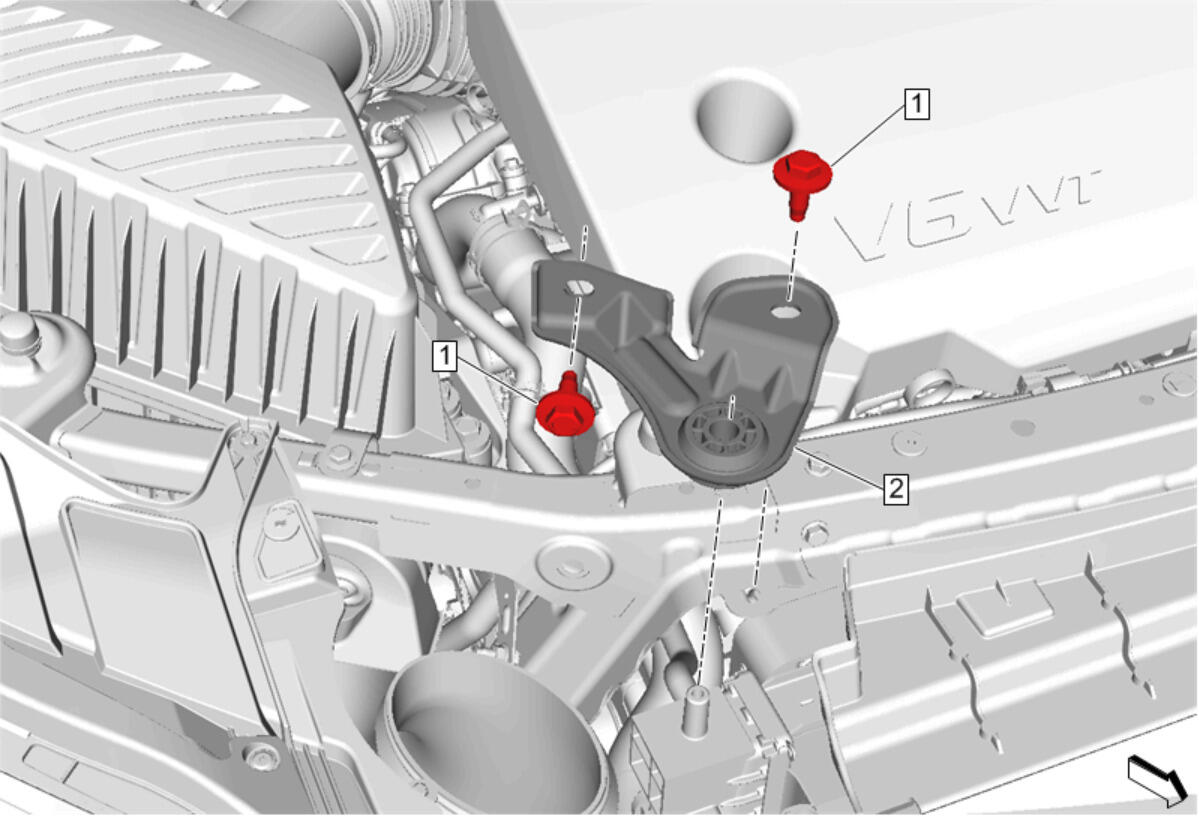

Radiator Upper Bracket-Right Side (2) - Install - Radiator Upper Bracket Replacement - Right Side (LGX) , or Radiator Upper Bracket Replacement - Right Side (LSY)
Courtesy of GENERAL MOTORS COMPANY

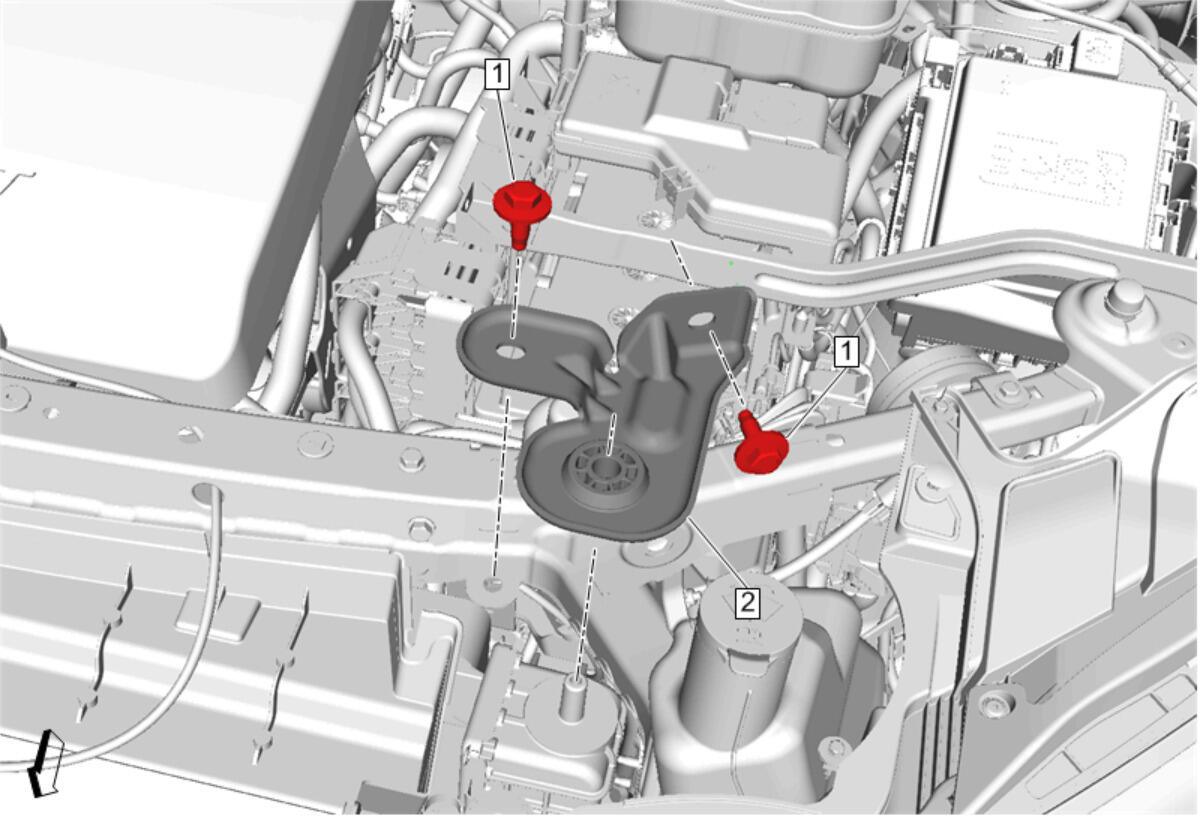

Radiator Upper Bracket-Left Side (2) - Install - Radiator Upper Bracket Replacement - Left Side (LGX) , or Radiator Upper Bracket Replacement - Left Side (LSY)
Courtesy of GENERAL MOTORS COMPANY

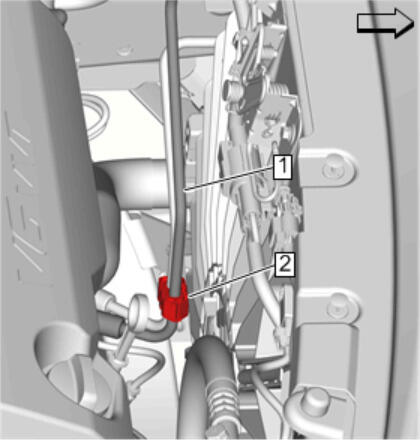

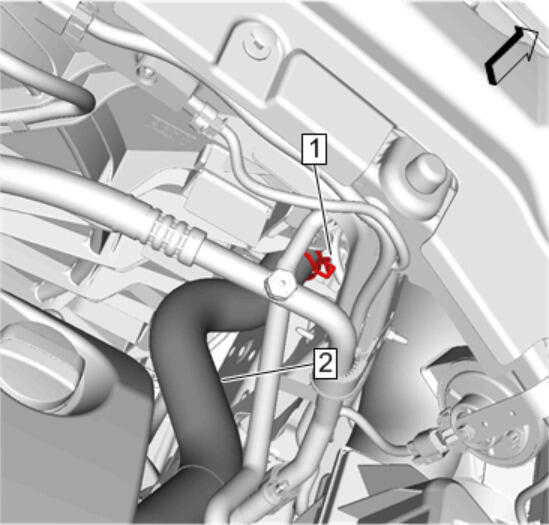

Transmission Fluid Cooler Pipe Clip (2) @Engine Coolant Fan - Install
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Inlet Pipe (1) @Radiator - Install - Transmission Fluid Cooler Inlet Pipe Replacement (LGX, with V08) , or Transmission Fluid Cooler Inlet Pipe Replacement (LCV, LGX, without V08)
Courtesy of GENERAL MOTORS COMPANY

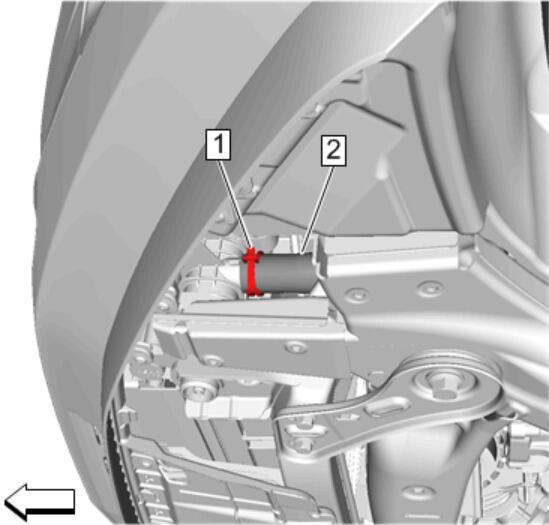

Transmission Fluid Cooler Outlet Pipe (1) @Radiator - Install - Transmission Fluid Cooler Outlet Pipe Replacement (LGX, with V08) , or Transmission Fluid Cooler Outlet Pipe Replacement (LCV, LGX, without V08)
Wiring Harness@Engine Coolant Fan - Connect
Courtesy of GENERAL MOTORS COMPANY

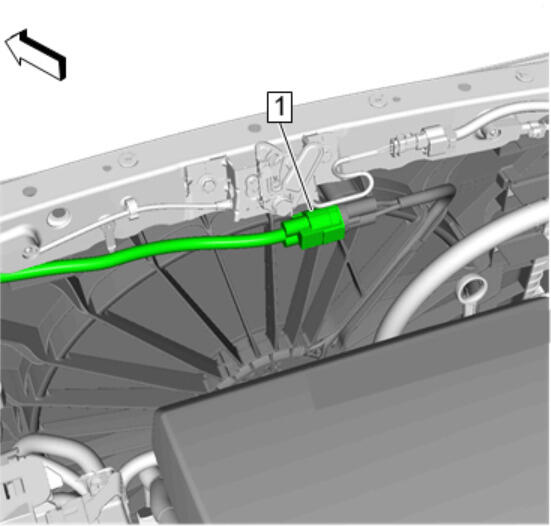

Electrical Connector (1) @Engine Coolant Fan - Connect
Radiator Surge Tank Inlet Hose@Radiator - Install - Radiator Surge Tank Inlet Hose Replacement (LGX From Radiator Surge Tank to Radiator and Radiator Surge Tank Outlet Pipe) , or Radiator Surge Tank Inlet Hose Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose (2) @Radiator - Install - Radiator Inlet Hose Replacement (LSY) , or Radiator Inlet Hose Replacement (LGX)
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose (2) @Radiator - Install - Radiator Outlet Hose Replacement (LGX Radiator Outlet Hose Tee to Engine Oil Cooler) , or Radiator Outlet Hose Replacement (LSY) , or Radiator Outlet Hose Replacement (LGX Radiator Outlet Hose Tee to Radiator) , or Radiator Outlet Hose Replacement (LGX Radiator Outlet Hose Tee to Water Pump Inlet Pipe) , or Radiator Outlet Hose Replacement (LGX without V08)
Courtesy of GENERAL MOTORS COMPANY

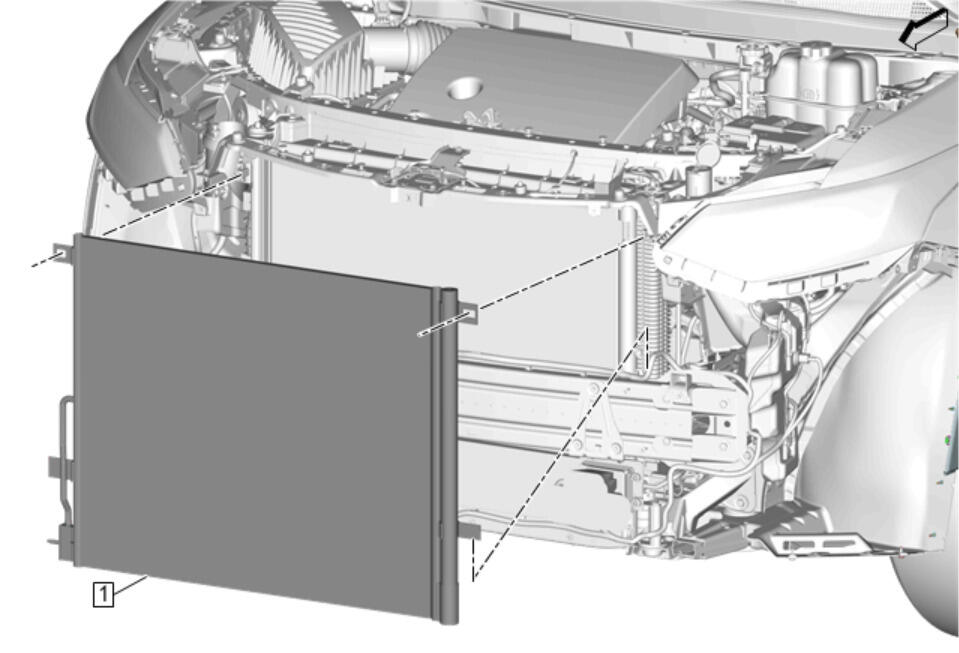

Air Conditioning Condenser (1) - Install - Air Conditioning Condenser Replacement (With V08) , or Air Conditioning Condenser Replacement (without V08)
Radiator Air Front Lower Baffle - Install - Radiator Air Front Lower Baffle Replacement (LSY) , or Radiator Air Front Lower Baffle Replacement (LGX)
Radiator Air Front Upper Baffle - Install - Radiator Air Front Upper Baffle Replacement (LSY) , or Radiator Air Front Upper Baffle Replacement (LGX)
Courtesy of GENERAL MOTORS COMPANY

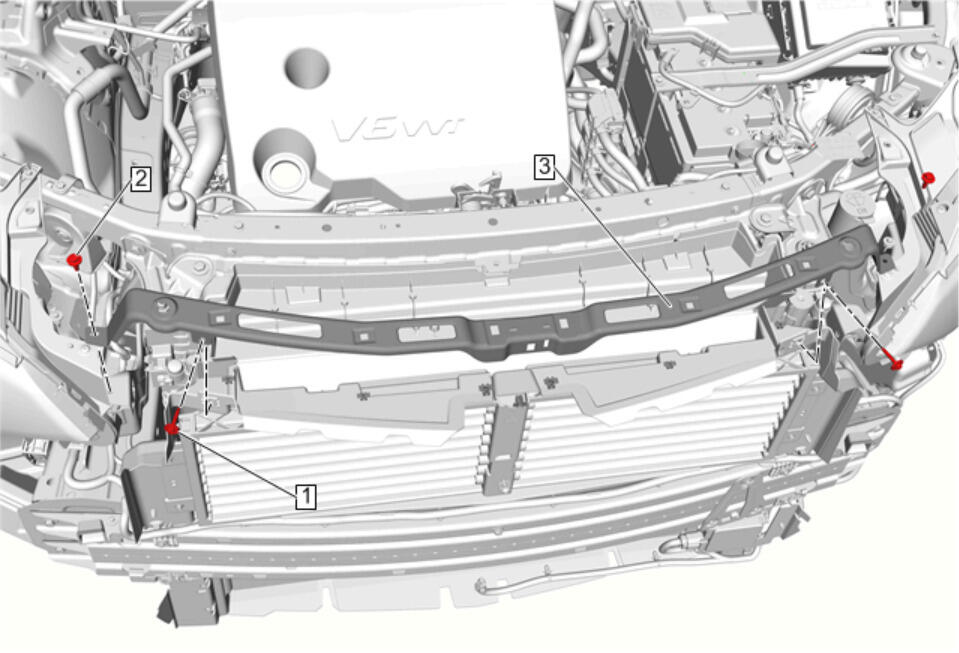

Front Bumper Fascia Center Support- Upper (3) - Install - Front Bumper Fascia Center Support Replacement - Upper
Front Bumper Fascia - Install - Front Bumper Fascia Removal and Installation
Intake Air Splash Shield - Install - Intake Air Splash Shield Replacement
Fill the cooling system to the proper level. Cooling System Draining and Filling (Static Fill LGX) , or Cooling System Draining and Filling (GE 47716 LGX) , or Cooling System Draining and Filling (Static Fill LSY) , or Cooling System Draining and Filling (GE 47716 LSY)
Start the engine and check for coolant leaks.
