Radiator Upper Bracket Replacement - Right Side (LGX)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

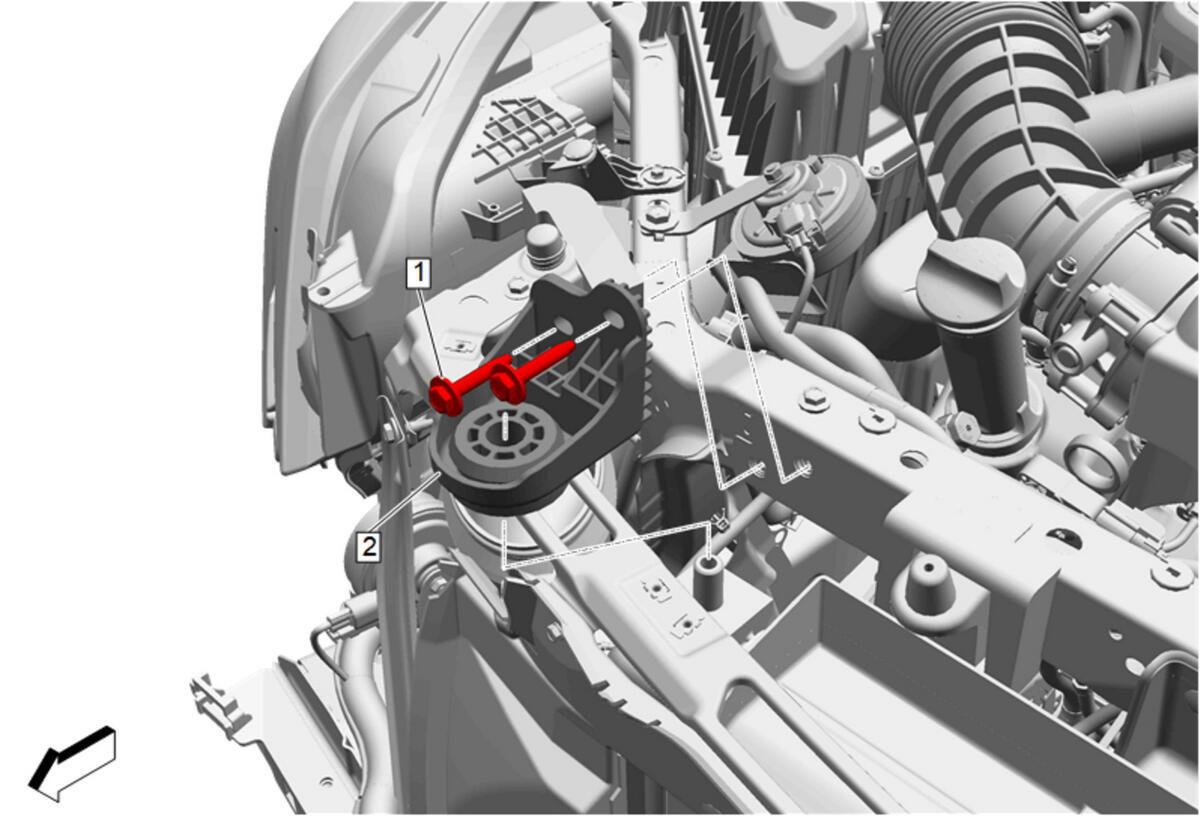

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Radiator Upper Bracket Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Radiator Upper Bracket - Right Side |
