Air Conditioning Condenser Replacement (without V08)

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

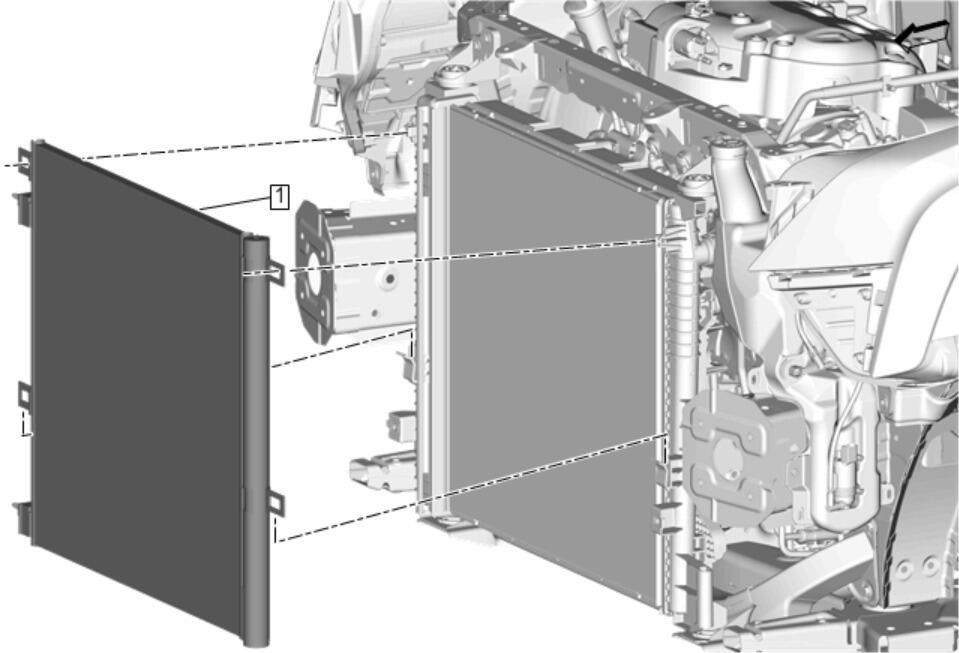

GM4296487Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Callout Component Name

Preliminary Procedures

  1. Air Conditioning Compressor and Condenser Hose@Air Conditioning Condenser - Remove - Air Conditioning Compressor and Condenser Hose Replacement (LGX) Air Conditioning Compressor and Condenser Hose Replacement (LSY)
  2. Air Conditioning Refrigerant Heat Exchanger@Air Conditioning Condenser - Remove - Air Conditioning Refrigerant Heat Exchanger Replacement (LSY without C69) Air Conditioning Refrigerant Heat Exchanger Replacement (LSY with C69) Air Conditioning Refrigerant Heat Exchanger Replacement (LGX with C69)
  3. Radiator Air Upper Baffle Replacement (LSY)Radiator Air Upper Baffle Replacement (LGX)
  4. Radiator Air Front Lower Baffle Replacement (LSY)Radiator Air Front Lower Baffle Replacement (LGX)
1 Air Conditioning Condenser
NOTE:

Some components not shown for graphic clarity.
