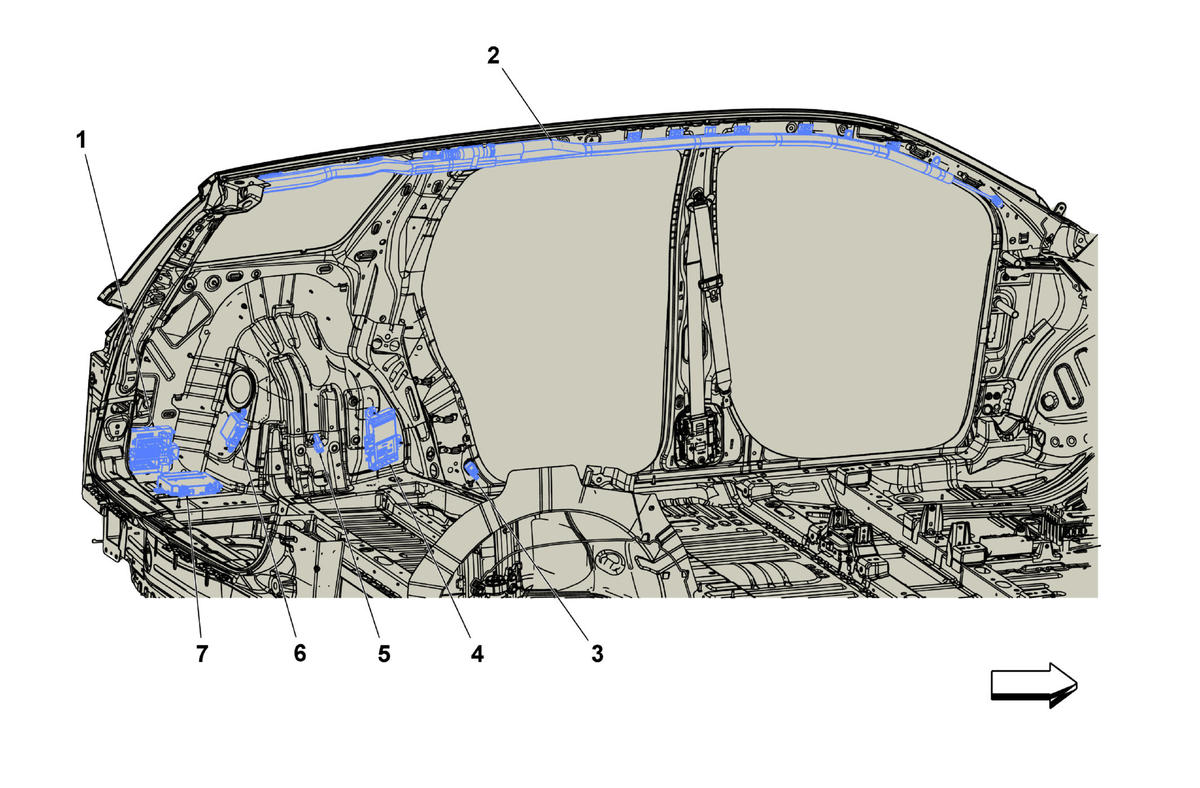

Left Rear Side of Passenger Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. X53A Fuse Block - Rear Body X53A Fuse Block - Rear Body X1 , or X53A Fuse Block - Rear Body X2 , or X53A Fuse Block - Rear Body X3 |
| 2. F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left |
| 3. B63LR Side Impact Sensor - Left Rear B63LR Side Impact Sensor - Left Rear |
| 4. K124 Active Safety Control Module (UGN) K124 Active Safety Control Module X1 (UGN) , or K124 Active Safety Control Module X2 (UGN) |
| 5. R6E Terminating Resistor - High Speed Extension Bus 1 R6E Terminating Resistor - High Speed Extension Bus 1 |
| 6. K182 Parking Assist Control Module (UD5/UD7) K182 Parking Assist Control Module X1 (UD5/UKG) , or K182 Parking Assist Control Module X2 (UD5/UKG) , or K182 Parking Assist Control Module X3 (UD5/UKG) |
| 7. K157 Video Processing Control Module (UVH) K157 Video Processing Control Module X1 , or K157 Video Processing Control Module X3 , or K157 Video Processing Control Module X4 , or K157 Video Processing Control Module X5 |
