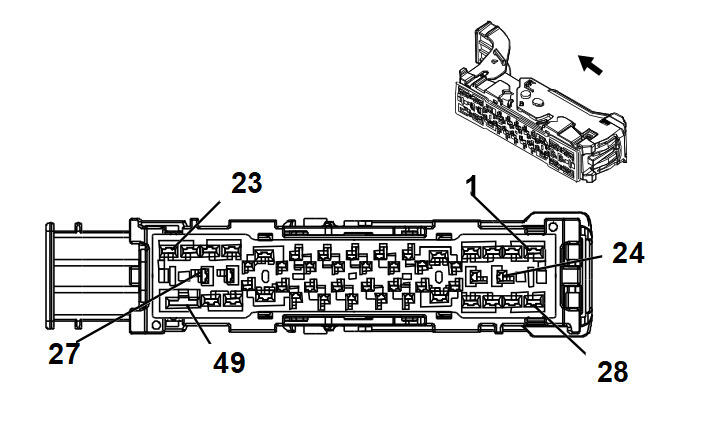

X53A Fuse Block - Rear Body X2
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 23161962
- Service Connector: 19352072
- Description: 49-Way F 1.5, 2.8, 6.3 Kaizen Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
13575835 |
J-35616-42 (RD) |
J-38125-11A |
| II |
19332534 |
J-35616-2A (GY) |
J-38125-557 |
| III |
85544080 |
J-35616-4A (PU) |
J-38125-11A |
| IV |
Not Available |
J-35616-2A (GY) |
J-38125-11A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.5 |
RD/BN |
4940 |
Battery Positive Voltage |
II |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.5 |
RD/GY |
1740 |
Battery Positive Voltage |
II |
- |
| 8 |
0.35 |
RD/BU |
4540 |
Battery Positive Voltage |
II |
|
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
RD/BU |
3940 |
Battery Positive Voltage |
II |
UG1 |
| 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.35 |
GY/VT |
3264 |
Logistics Mode Relay Close Control |
II |
|
| 13 |
0.35 |
VT/BU |
3263 |
Logistics Mode Relay Open Control |
II |
|
| 14 |
0.35 |
YE |
5704 |
Endgate Latch Relay Coil Control |
II |
TB4 |
| 15 |
0.35 |
GN/BN |
5706 |
Endgate Latch Relay Control |
II |
TB4 |
| 16 |
0.75 |
BU/WH |
6128 |
Rear Closure Unlatch Actuator Unlatch Control |
II |
TB4 |
| 17 |
0.35 |
RD/BU |
5240 |
Battery Positive Voltage |
II |
AAB+DYX |
| 18 |
2.5 |
RD/BU |
1842 |
Battery Positive Voltage |
III |
- |
| 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
1.5 |
RD/BN |
4940 |
Battery Positive Voltage |
III |
- |
| 21 |
- |
- |
- |
Not Occupied |
- |
- |
| 22 |
2.5 |
RD/BU |
1542 |
Battery Positive Voltage |
III |
F48 |
| 23 |
2.5 |
RD/GY |
1740 |
Battery Positive Voltage |
III |
|
| 24 - 28 |
- |
- |
- |
Not Occupied |
- |
- |
| 29 |
1 |
RD/WH |
4740 |
Battery Positive Voltage |
III |
KA6 |
| 30 |
2.5 |
RD/GN |
1540 |
Battery Positive Voltage |
III |
TC2 |
| 31 - 33 |
- |
- |
- |
Not Occupied |
- |
- |
| 34 |
1.5 |
BK |
2150 |
Ground |
IV |
- |
| 35 |
0.35 |
RD/WH |
2040 |
Battery Positive Voltage |
II |
AL0 |
| 36 |
- |
- |
- |
Not Occupied |
- |
- |
| 37 |
1 |
RD/GN |
5140 |
Battery Positive Voltage |
II |
(AAB/HS1) |
| 38 |
0.5 |
RD/YE |
4340 |
Battery Positive Voltage |
II |
|
| 39 |
- |
- |
- |
Not Occupied |
- |
- |
| 40 |
0.35 |
BN/VT |
193 |
Rear Defogger Relay Control |
II |
- |
| 41 |
0.5 |
RD/VT |
1940 |
Battery Positive Voltage |
II |
AXG |
| 42 - 44 |
- |
- |
- |
Not Occupied |
- |
- |
| 45 |
2.5 |
RD/BU |
1842 |
Battery Positive Voltage |
III |
(AXG/AEF) |
| 46 |
0.75 |
RD/BN |
1440 |
Battery Positive Voltage |
II |
KU9/AT9 |
| 47 |
2.5 |
RD/WH |
4042 |
Battery Positive Voltage |
III |
- |
| 48 |
2.5 |
RD/WH |
4042 |
Battery Positive Voltage |
III |
(AEF/AED) |
| 49 |
3 |
RD/GN |
742 |
Battery Positive Voltage |
I |
VR2/V92 |
