X53A Fuse Block - Rear Body X1
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

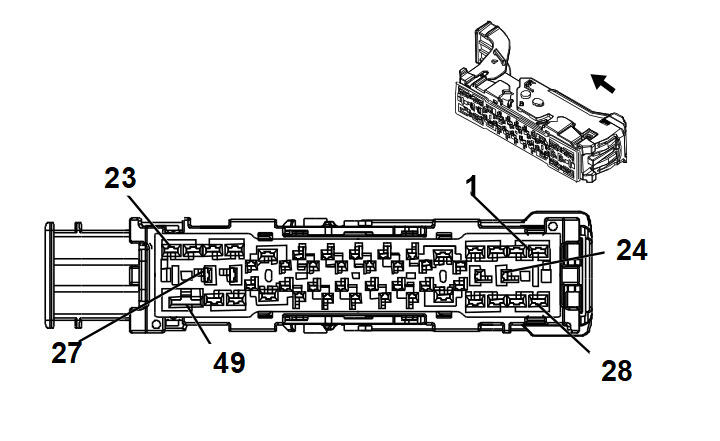

Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 23161963
- Service Connector: 19352071
- Description: 49-Way F 1.5, 2.8, 6.3 Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19332534 |
J-35616-2A (GY) |
J-38125-557 |
| II |
85544080 |
J-35616-4A (PU) |
J-38125-11A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
BN/VT |
293 |
Rear Defogger Grid Control |
II |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
2.5 |
RD/VT |
2640 |
Battery Positive Voltage |
II |
- |
| 4 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
1 |
RD/BU |
840 |
Battery Positive Voltage |
I |
TC2 |
| 8 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.75 |
RD/GN |
2440 |
Battery Positive Voltage |
I |
- |
| 14 - 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
1 |
VT/BK |
1639 |
Run/Crank Ignition 1 Voltage |
II |
|
| 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
0.75 |
RD/YE |
5040 |
Battery Positive Voltage |
II |
KU9/AL9 |
| 21 |
2.5 |
BU |
47 |
Trailer Auxiliary Control |
II |
(VR2/V92) |
| 22 - 26 |
- |
- |
- |
Not Occupied |
- |
- |
| 27 |
0.75 |
WH/GN |
1624 |
Trailer Backup Lamp Control |
I |
(VR2/V92) |
| 28 |
0.5 |
VT |
1093 |
Rear Defogger Grid Control |
II |
- |
| 29 - 30 |
- |
- |
- |
Not Occupied |
- |
- |
| 31 |
0.5 |
BN/YE |
2267 |
Outside Rearview Mirror Heater Control |
II |
- |
| 32 |
0.35 |
BN/VT |
193 |
Rear Defogger Relay Control |
I |
- |
| 33 - 35 |
- |
- |
- |
Not Occupied |
- |
- |
| 36 |
0.35 |
BN/YE |
186 |
Fuel Fill Door Lock Relay Control |
I |
N08 |
| 37 |
- |
- |
- |
Not Occupied |
- |
- |
| 38 |
0.5 |
VT |
1093 |
Rear Defogger Grid Control |
I |
- |
| 39 - 40 |
- |
- |
- |
Not Occupied |
- |
- |
| 41 |
0.75 |
GY |
5911 |
Door Lock Actuator Lock Control 2 |
I |
|
| 42 |
- |
- |
- |
Not Occupied |
- |
- |
| 43 |
0.75 |
BU |
6800 |
Fuel Fill Door Lock/Unlock 1 Signal |
I |
N08 |
| 44 - 45 |
- |
- |
- |
Not Occupied |
- |
- |
| 46 |
0.5 |
GN/WH |
24 |
Backup Lamp Control |
I |
(VR2/V92) |
| 47 - 49 |
- |
- |
- |
Not Occupied |
- |
- |
