Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

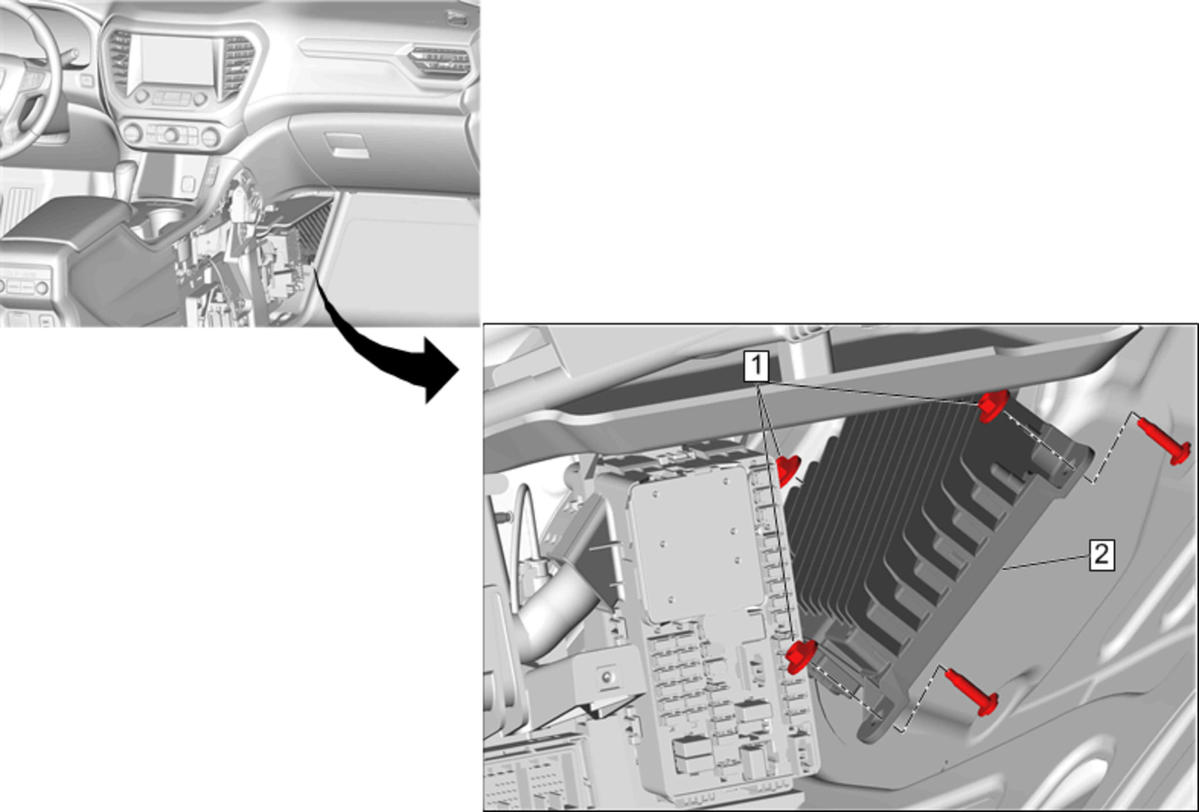

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Panel Replacement - Left Side Front Floor Console Extension Panel Replacement - Right Side
1	Radio Speaker Amplifier Nut [3x] CAUTION: Fastener Caution Tighten 6 N.m (53 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedures

Front Floor Console Extension Panel Replacement - Left Side
Front Floor Console Extension Panel Replacement - Right Side

Radio Speaker Amplifier Nut [3x]

CAUTION:

Fastener Caution

Tighten
6 N.m (53 lb in)

Radio Speaker Amplifier

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure:Control Module References
