Front Floor Console Extension Panel Replacement - Left Side

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

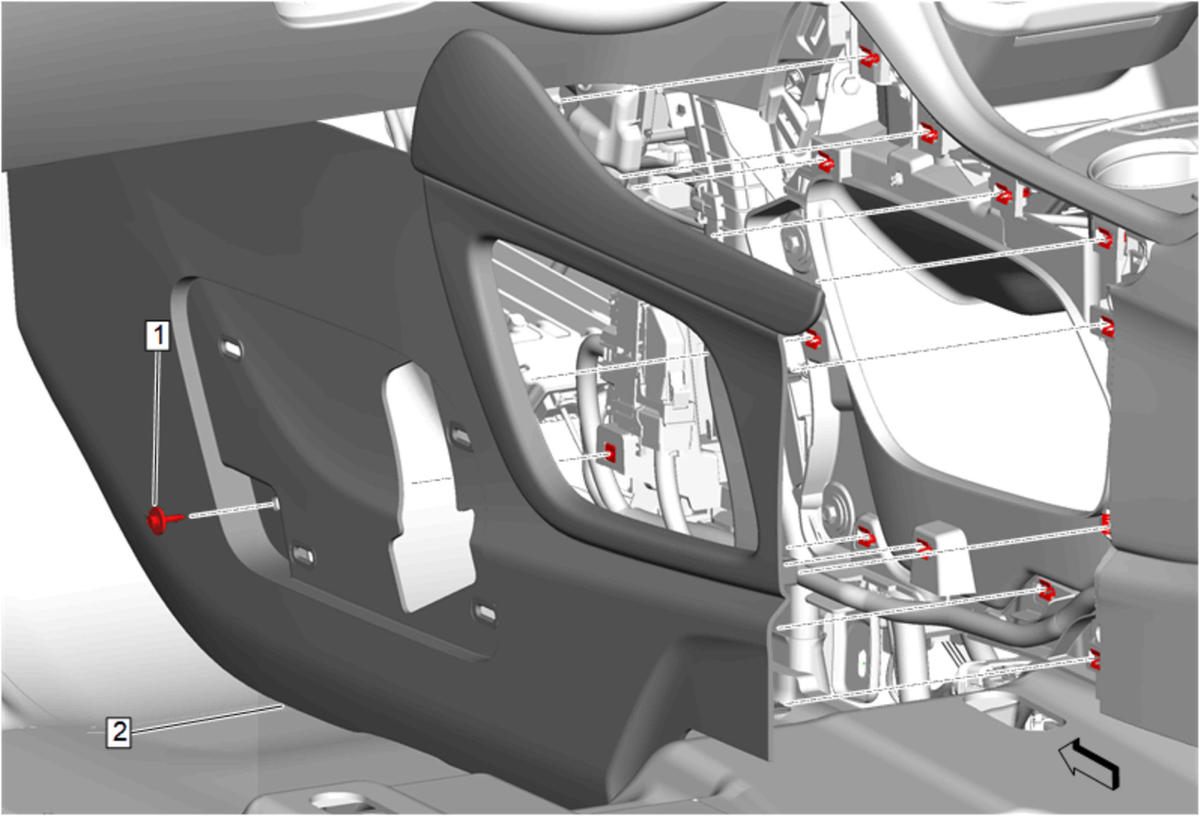

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Floor Console Side Trim Panel Replacement
1	Front Floor Console Extension Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Extension Panel - Left Side Procedure Move the front seat to access the retainers. Use a flat bladed plastic trim tool. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Front Floor Console Side Trim Panel Replacement

Front Floor Console Extension Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Floor Console Extension Panel - Left Side

Procedure

Move the front seat to access the retainers.
Use a flat bladed plastic trim tool.
Transfer components as necessary.
