Front Floor Console Extension Panel Replacement - Right Side

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

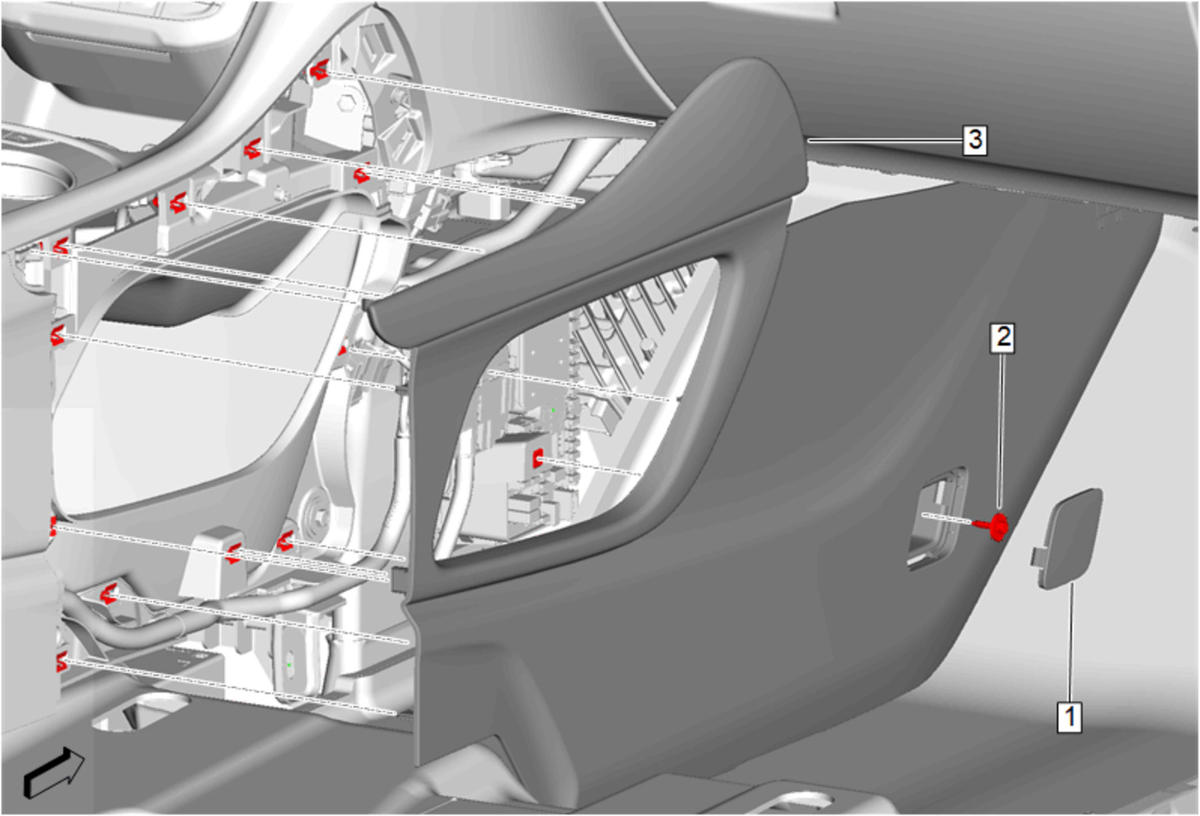

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Front Floor Console Bolt Access Hole Cover Procedure Using a suitable trim tool, remove the cover.
2	Front Floor Console Extension Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Front Floor Console Extension Panel - Right Side Procedure Move the front seat to access the retainers. Using a flat-bladed plastic trim tool, release the retaining clips. Transfer components as necessary.

Callout

Component Name

Front Floor Console Bolt Access Hole Cover
Procedure
Using a suitable trim tool, remove the cover.

Front Floor Console Extension Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Floor Console Extension Panel - Right Side

Procedure

Move the front seat to access the retainers.
Using a flat-bladed plastic trim tool, release the retaining clips.
Transfer components as necessary.
