Front Fender Replacement - Right Side (Without ULV, ZR2)

Courtesy of GENERAL MOTORS COMPANY

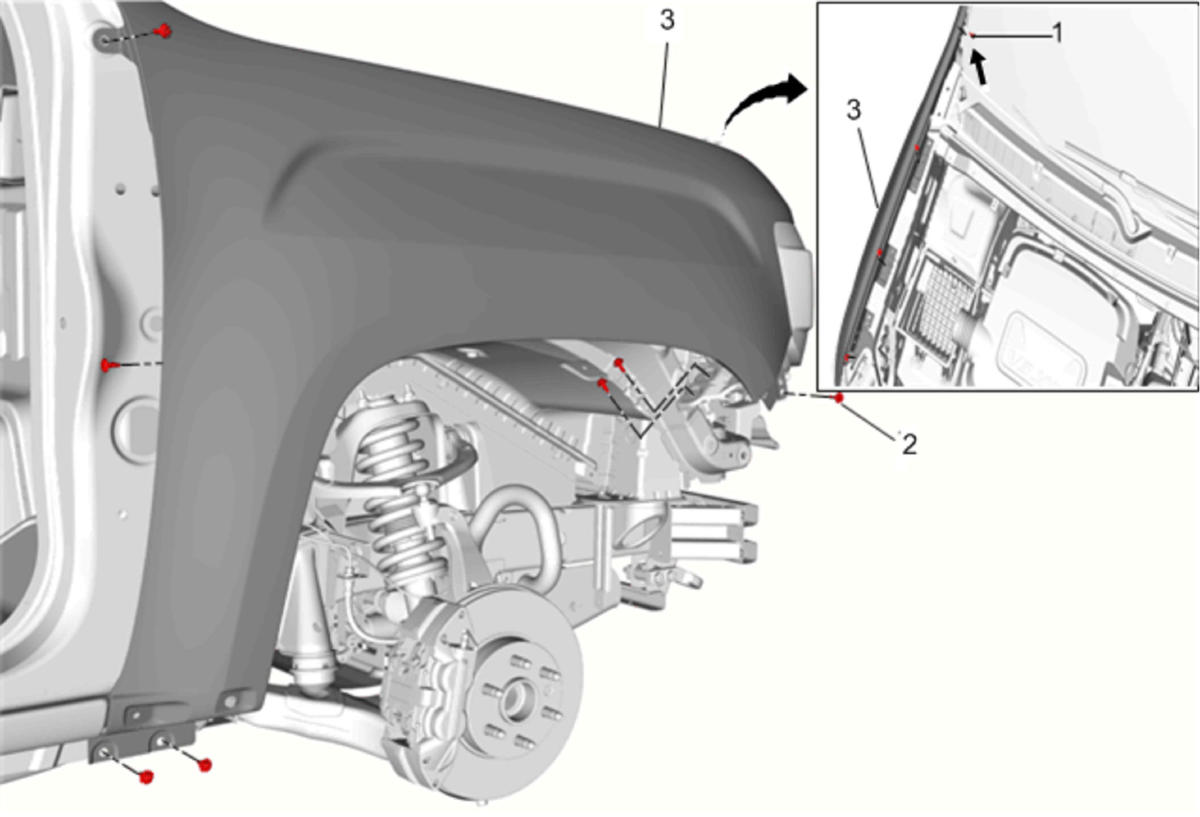

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (GMC) , or Front Bumper Fascia Replacement (Chevrolet) Remove the intake air splash shield. Refer to Intake Air Splash Shield Replacement Remove the right hand air inlet grille extension. Refer to Air Inlet Grille Panel Extension Replacement Remove the front compartment side sight shield. Refer to Front Compartment Side Sight Shield Replacement Remove the front fender paint protector if equipped. Refer to Front Fender Paint Protector Replacement (Without Bison) , or Front Fender Paint Protector Replacement (With Bison)
1	Right Front Fender Upper Bolt CAUTION: Refer to Fastener Caution . Procedure Using ball end TORX driver to loosen bolt only, bolt does not have to be removed as fender is slotted. NOTE: Place protective covering over windshield at top rear bolt to prevent windshield breakage (arrow). Tighten 9 N.m (80 lb in)
2	Right Front Fender Bolt (Qty: 10) Tighten 9 N.m (80 lb in)
3	Right Front Fender Procedure Transfer any necessary additional parts as needed.
