Air Inlet Grille Panel Extension Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Open the hood. |
|

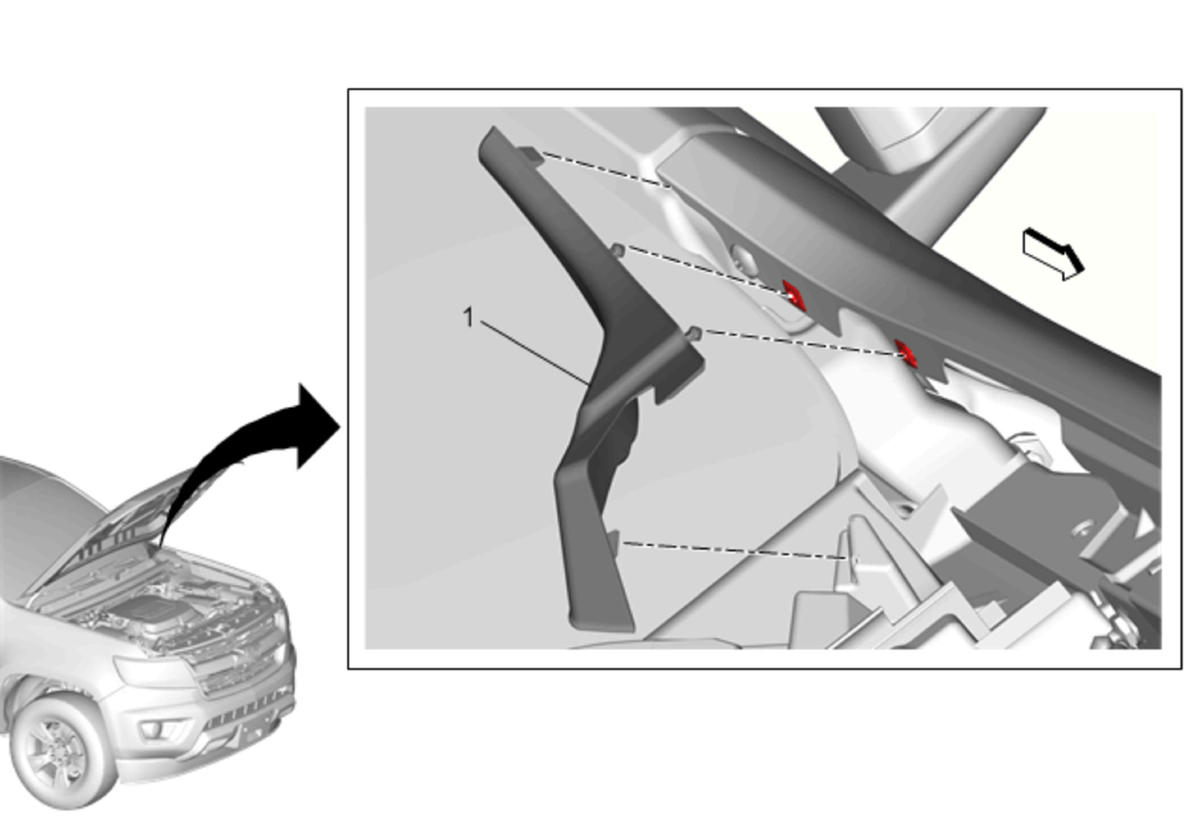

| 1 | Air Inlet Grille Panel Extension Procedure Carefully grasp the extension and disengage the tabs from the rear edge of the fender and rear edge of the air inlet panel.
NOTE:
Retaining tabs on the air inlet grille panel extension are fragile. Becareful not to damage or break tabs. |
