Front Fender Paint Protector Replacement (Without Bison)

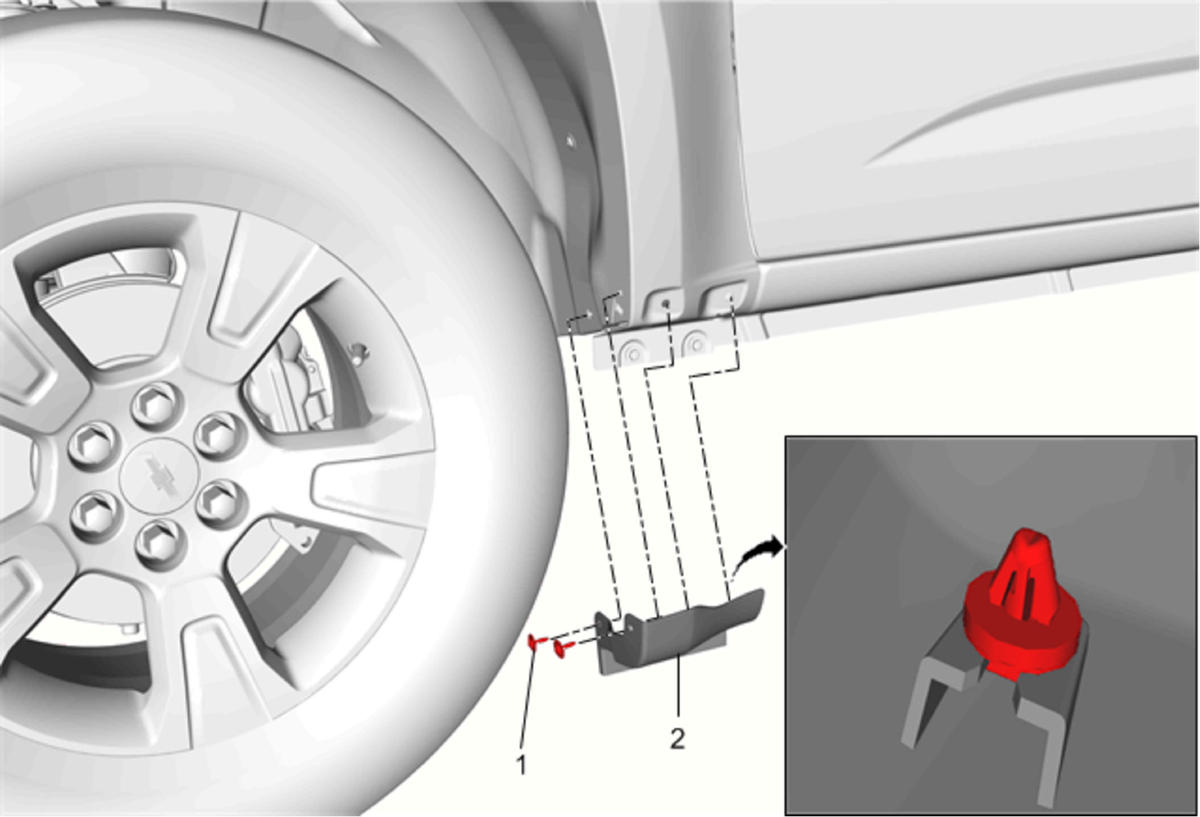

GM3766453Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Fender Paint Protector Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten:
2.5 N.m (22 lb in)
2 Front Fender Paint Protector
Procedure
With a trim-type release tool disengage the 2 retainers.
