Removal Procedure

  1. Front Bumper Fascia - Remove - Front Bumper Fascia Replacement (ZR2)

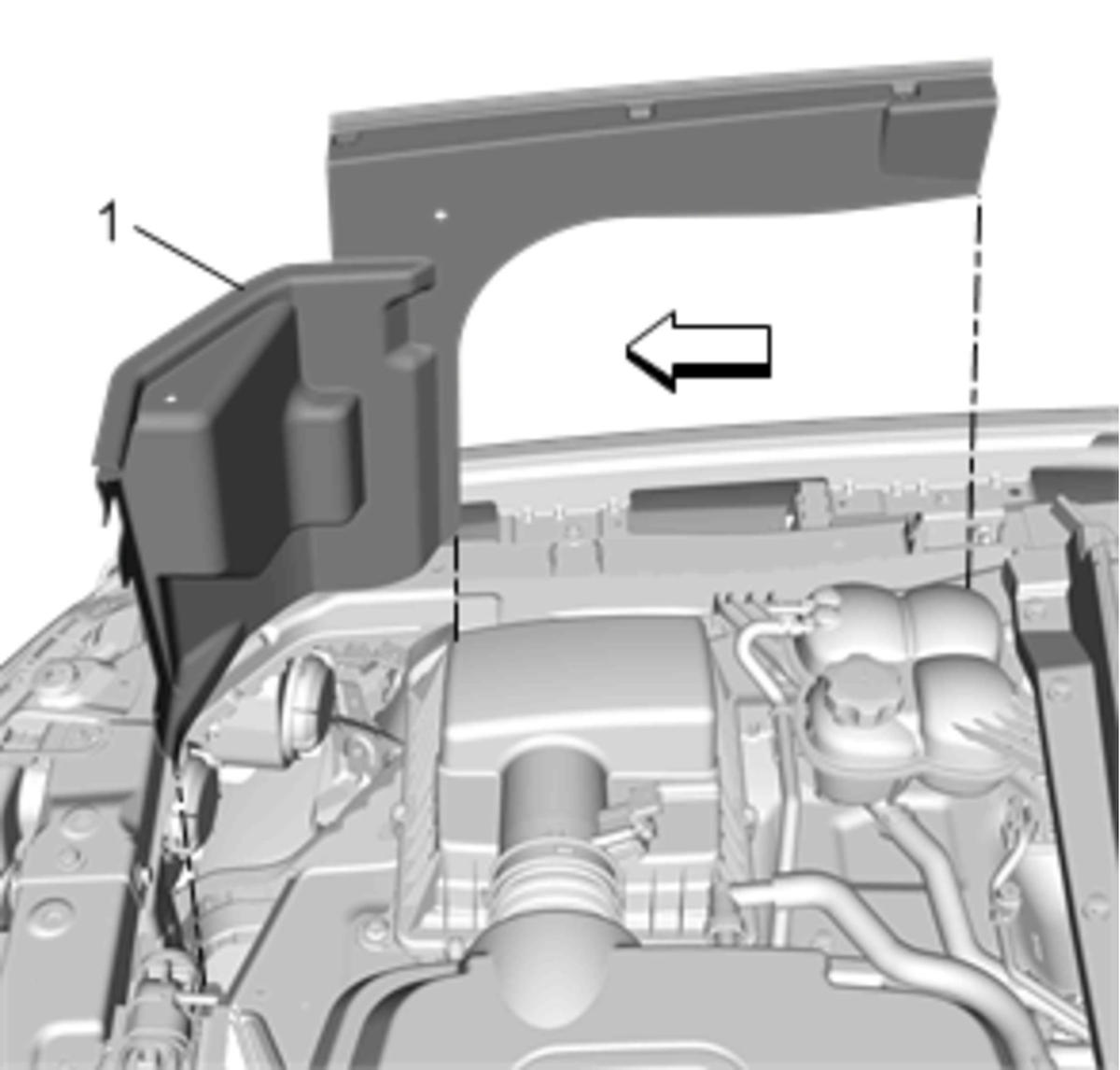

  2. GM3789694Courtesy of GENERAL MOTORS COMPANY

    Intake Air Splash Shield (1) - Remove - Intake Air Splash Shield Replacement

  3. GM3802322Courtesy of GENERAL MOTORS COMPANY

    Remove the right side air inlet grille panel extension (1). Air Inlet Grille Panel Extension Replacement

  4. GM3716493Courtesy of GENERAL MOTORS COMPANY

    Remove the right side front compartment side sight shield (2). Front Compartment Side Sight Shield Replacement

  5. Remove the right side front fender paint protector. Front Fender Paint Protector Replacement (Without Bison) , or Front Fender Paint Protector Replacement (With Bison)
  6. GM3716772Courtesy of GENERAL MOTORS COMPANY

    Remove the right side front fender insulator (2). Front Fender Insulator Replacement

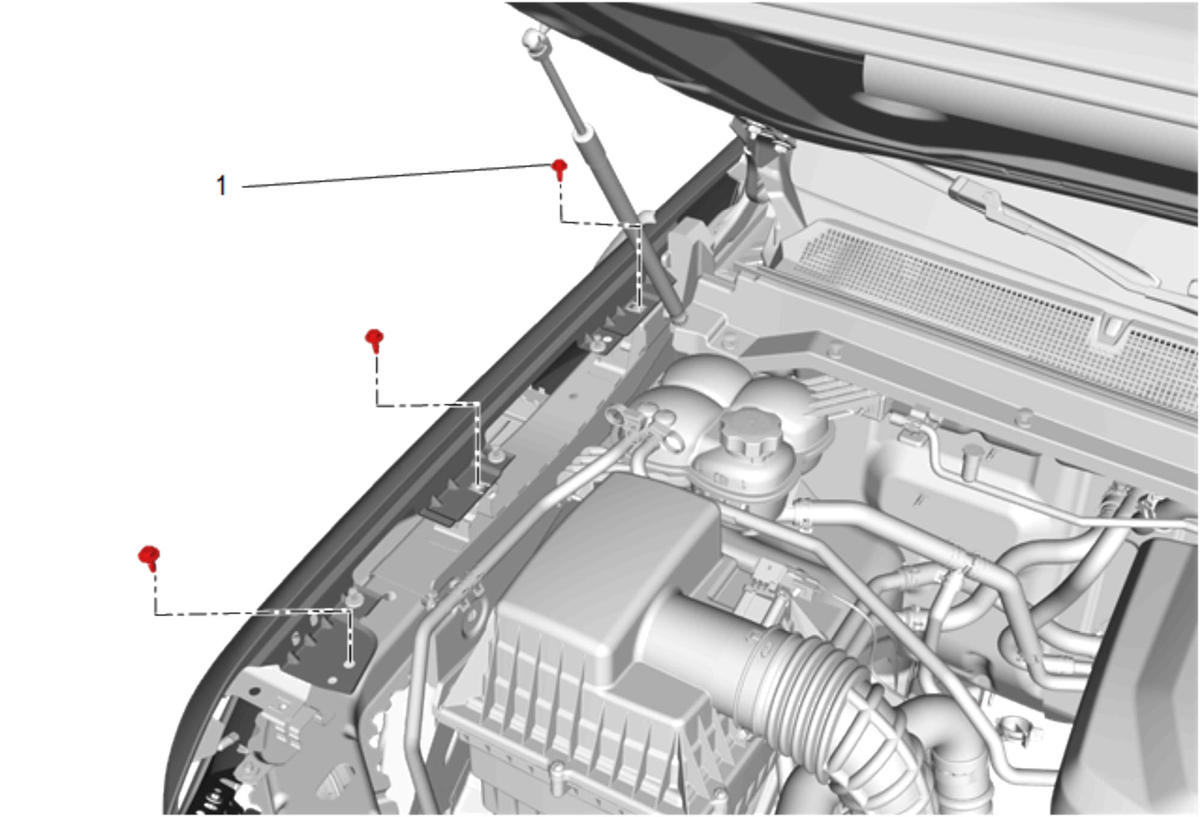

  7. GM5164183Courtesy of GENERAL MOTORS COMPANY

    Front Fender Bolt (1) - Remove [3x]

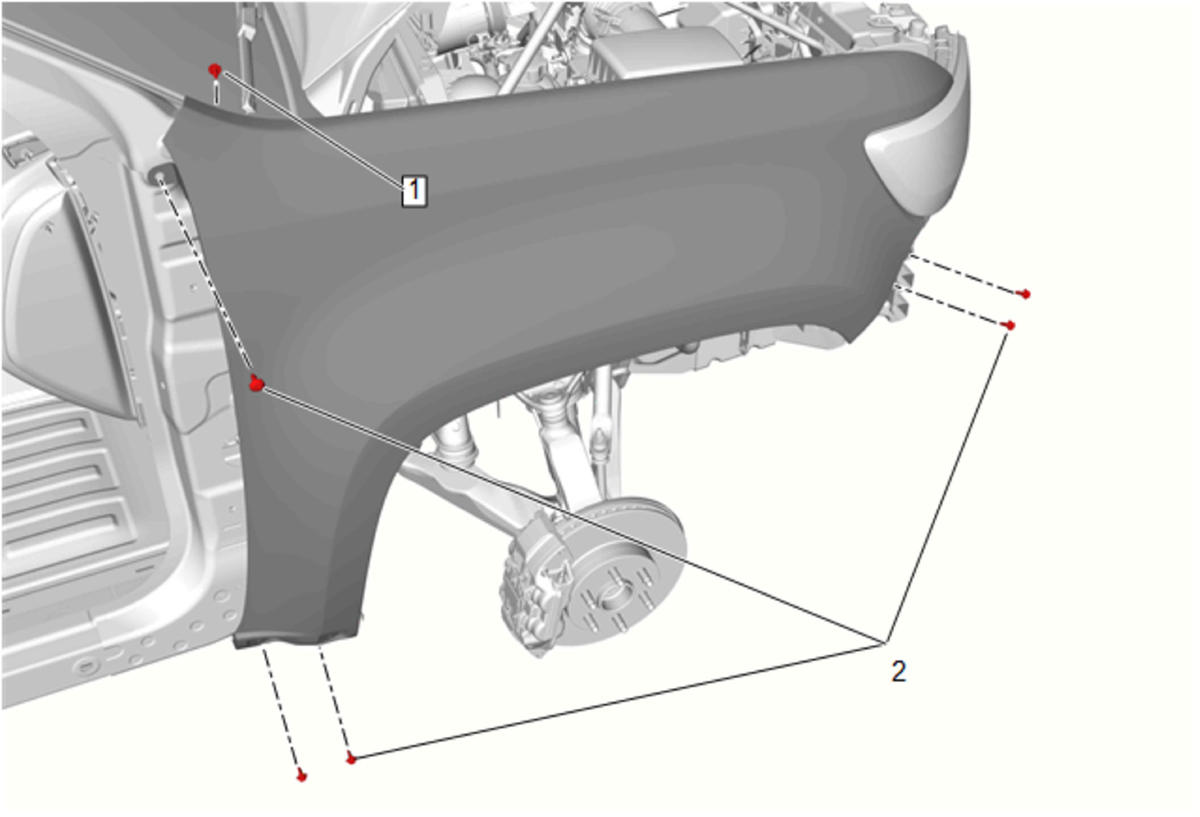

  8. GM5164187Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Place protective covering over windshield at top rear fender bolt to prevent windshield breakage.
    • Fender bolt does not have to be removed as the fender is slotted.

    Use a torx driver to loosen the fender bolt (1).

  9. Front Fender Bolt (2) - Remove [5x]

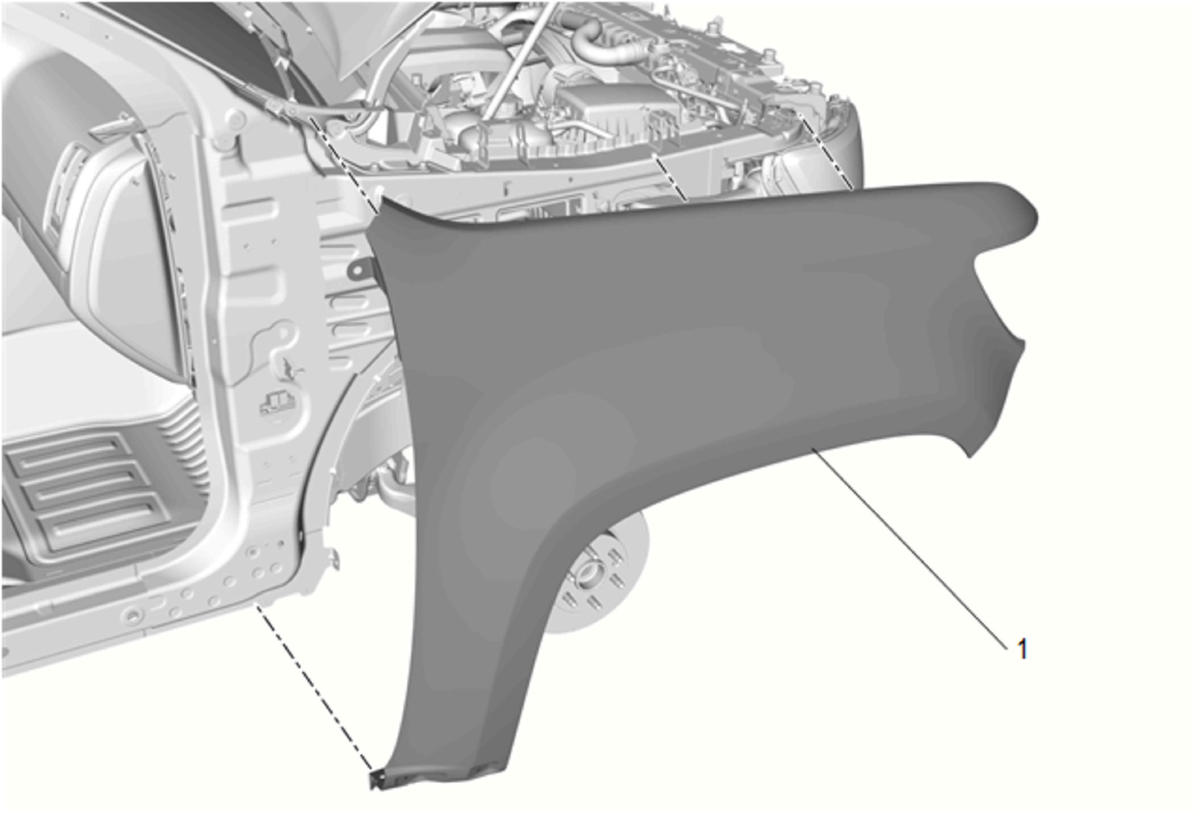

  10. GM5164188Courtesy of GENERAL MOTORS COMPANY

    Front Fender (1) - Remove

  11. Transfer components as necessary.
