Front Fender Rear Upper Stiffener Replacement

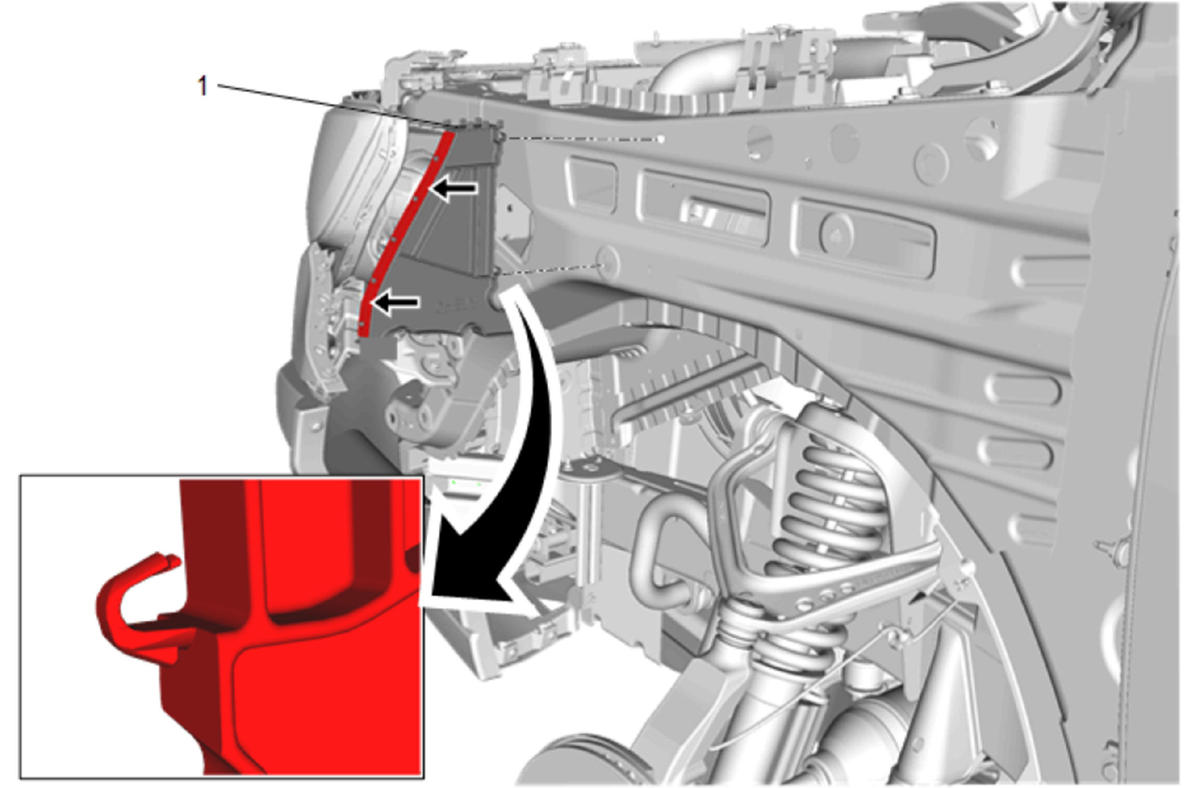

GM3717016Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove either the left hand or right hand fender. Refer to Front Fender Replacement - Left Side (Without, ULV, ZR2) , or Front Fender Replacement - Left Side (With ULV, ZR2) , Front Fender Replacement - Right Side (Without ULV, ZR2) , or Front Fender Replacement - Right Side (With ULV, ZR2)
1 Front Fender Rear Upper Stiffener

Procedure

  1. Release the upper and lower integral retainers.
  2. Pull the front fender rear upper stiffener from the upper side rail.
