Preliminary Procedures
- Air Inlet Grille Panel Replacement
- Front Headlamp Replacement - Left Side (GMC)
- Front Wheel Opening Molding Replacement
|
| 1 |

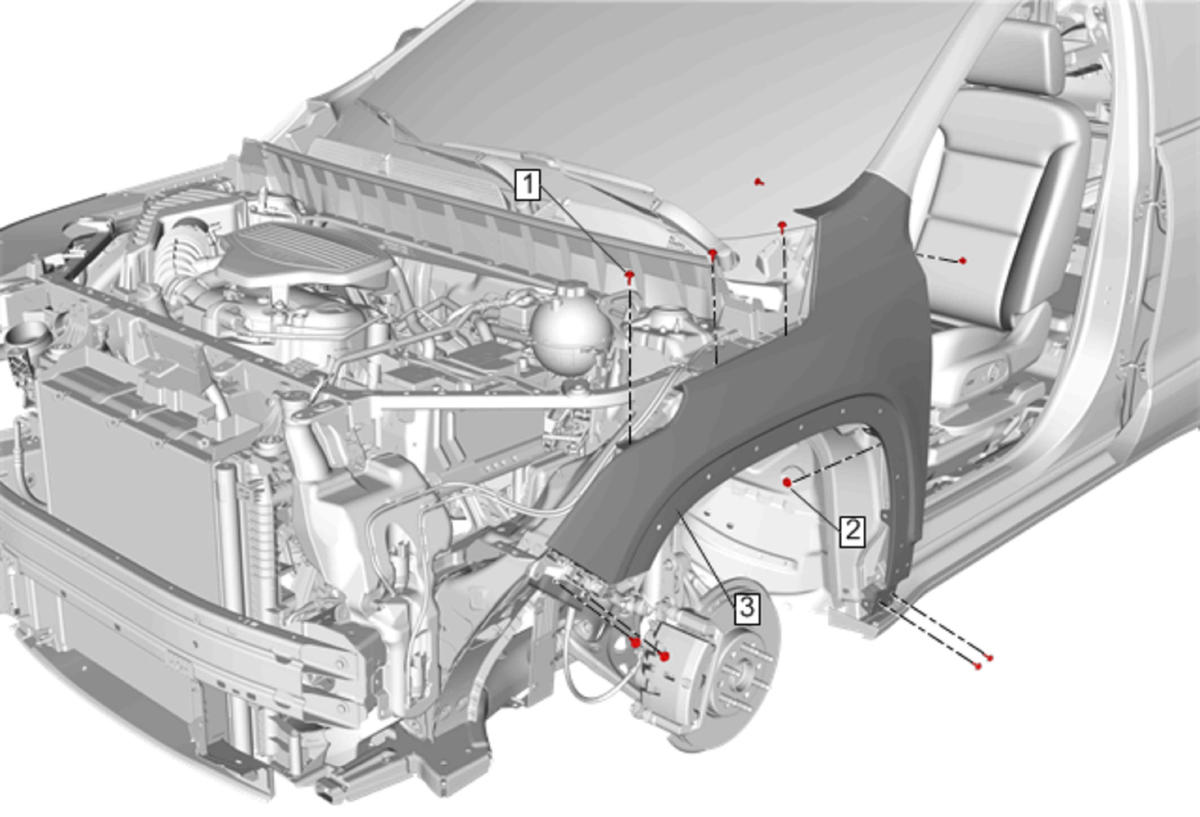

Front Fender Bolt [9x]
Tighten
9 N.m (80 lb in) |
| 2 |
Front Fender Nut
Tighten
9 N.m (80 lb in) |
| 3 |
Front Fender
Procedure
Transfer components as necessary. |
