Air Inlet Grille Panel Replacement

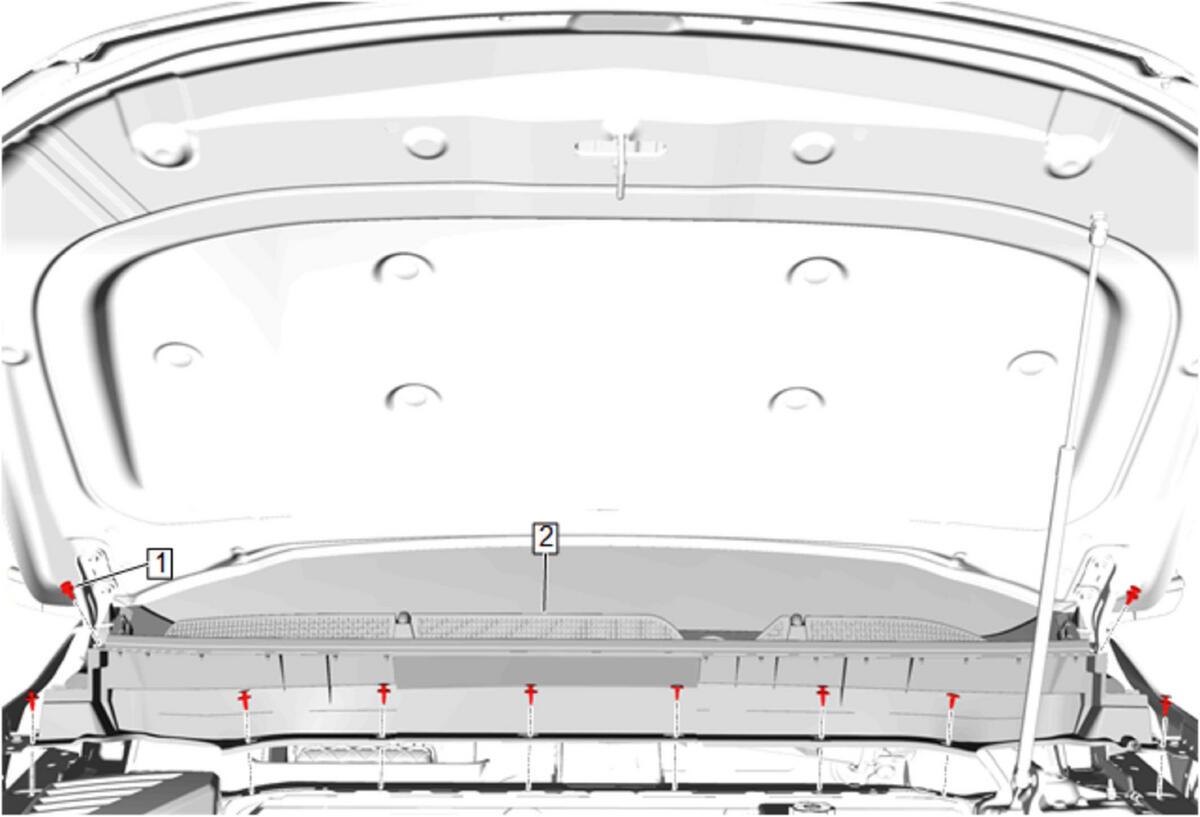

GM5342211Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Windshield Wiper Arm Replacement
  2. Air Inlet Grille Panel Extension Replacement
  3. Hood Rear Outer Air Inlet Seal Replacement
1 Air Inlet Grille Panel Retainer [10x]
2 Air Inlet Grille Panel

Procedure

  1. Using an appropriate tool, release the air inlet grille panel from the windshield lower molding.
  2. Lift up the front edge of the air inlet grille panel, slide the grille panel forward from both hood hinges.
  3. Disconnect the windshield washer nozzle hose from the rear window washer pump hose.
  4. Transfer components as necessary.
