Front Headlamp Replacement - Left Side (GMC)

Courtesy of GENERAL MOTORS COMPANY

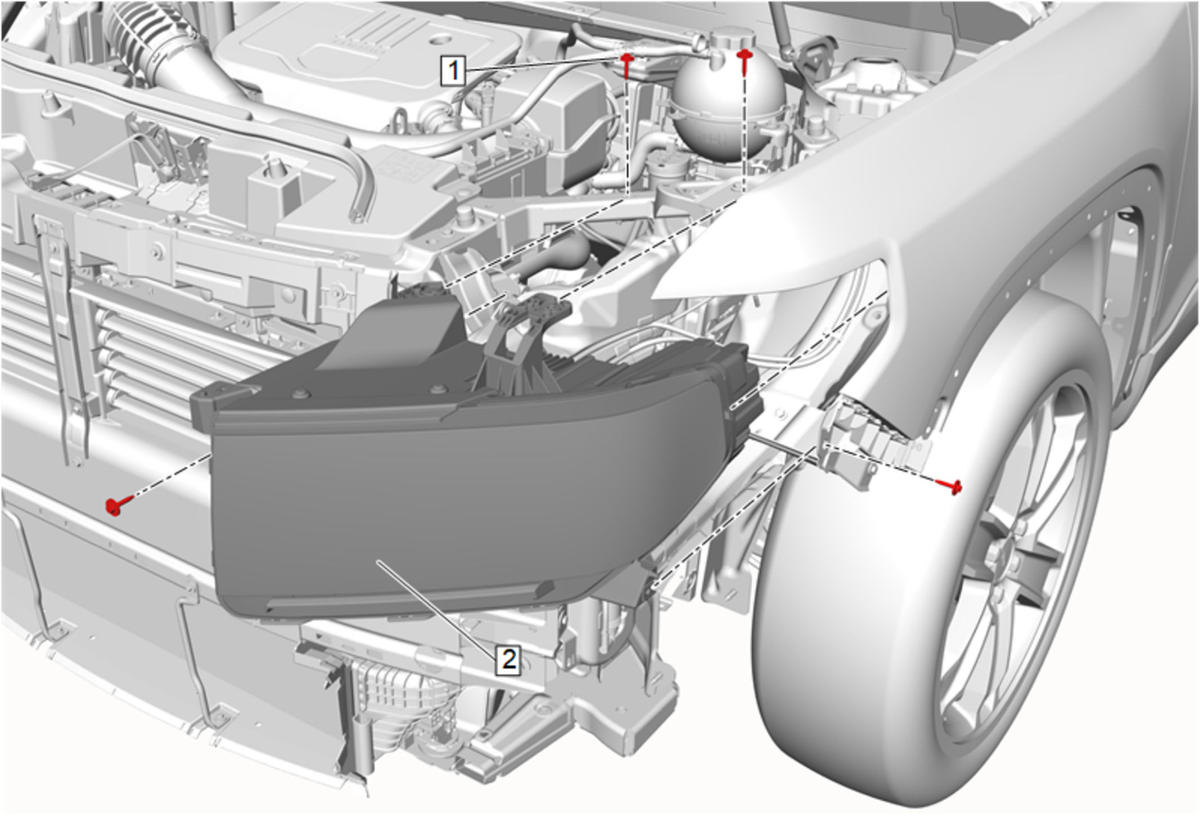

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Removal and Installation
1	Headlamp Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Headlamp Procedure Disconnect the electrical connector. After installation, aim the front headlamps. Front Headlamp Aiming

Callout

Component Name

Headlamp Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Headlamp

Procedure
