Windshield Wiper Arm Replacement

Courtesy of GENERAL MOTORS COMPANY

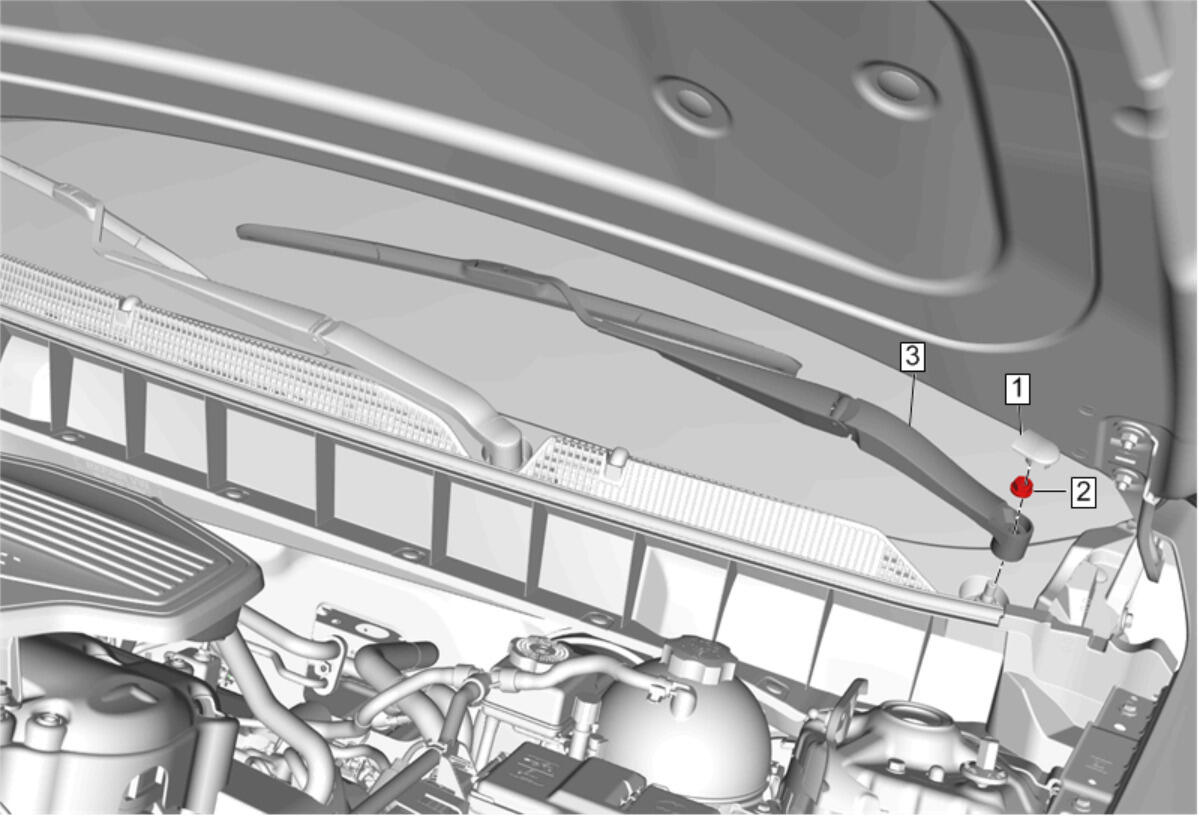

Callout	Component Name
1	Windshield Wiper Arm Finish Cap Procedure Using an appropriate trim tool, remove the finish cap on the wiper arm.
2	Windshield Wiper Arm Nut CAUTION: Refer to Fastener Caution . Tighten 30 N.m (22 lb ft)
3	Windshield Wiper Arm Procedure Grasp the outer end of the wiper arm and gently rock the arm back and forth to remove from the pivot shaft. Clean the wiper motor pivot shaft knurls with a soft wire brush before installing the wiper arm. Transfer components as necessary. Position the wiper arm on the wiper motor pivot shaft. Properly align the windshield wiper arm. Windshield Wiper Arm Adjustment

Callout

Component Name

Windshield Wiper Arm Finish Cap
Procedure
Using an appropriate trim tool, remove the finish cap on the wiper arm.

Windshield Wiper Arm Nut

CAUTION:

Tighten
30 N.m (22 lb ft)

Windshield Wiper Arm

Procedure

Grasp the outer end of the wiper arm and gently rock the arm back and forth to remove from the pivot shaft.
Clean the wiper motor pivot shaft knurls with a soft wire brush before installing the wiper arm.
Transfer components as necessary.
Position the wiper arm on the wiper motor pivot shaft.
Properly align the windshield wiper arm. Windshield Wiper Arm Adjustment
