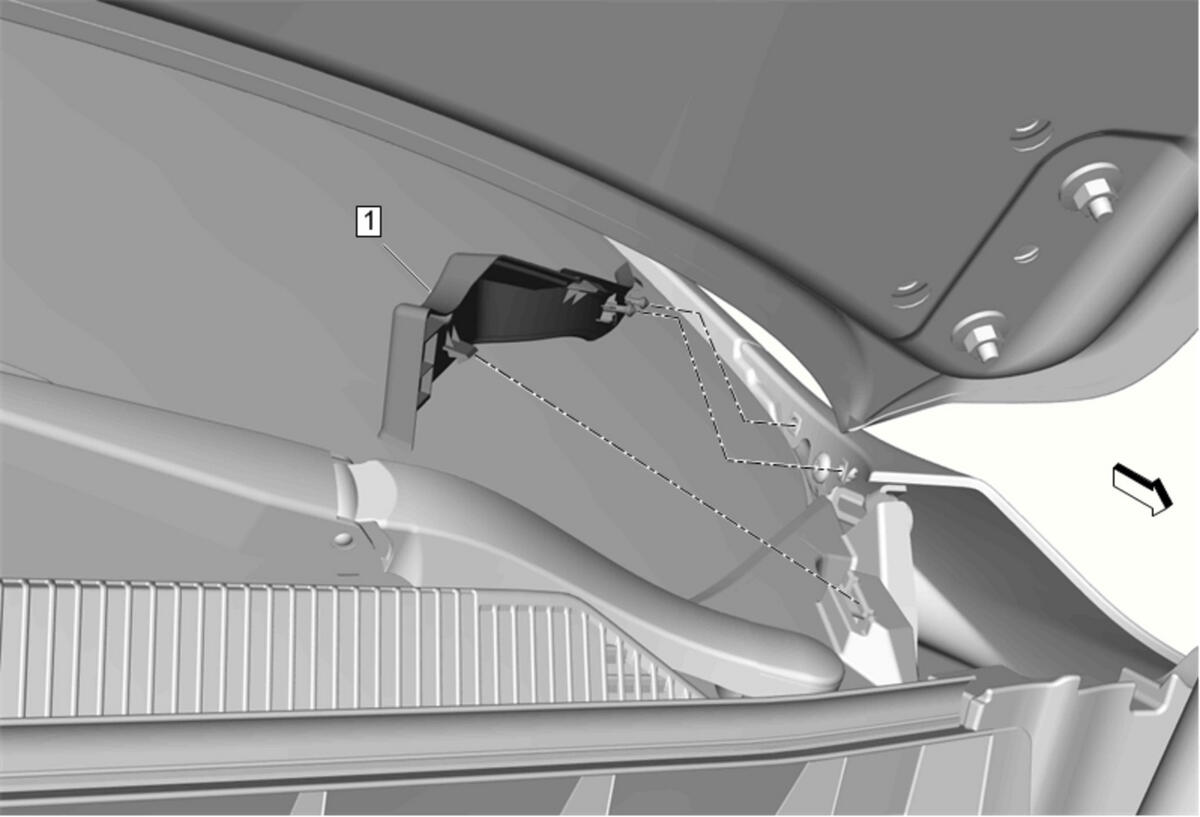

Air Inlet Grille Panel Extension Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedure
Open and support the hood.
1
Air Inlet Grille Panel Extension
Procedure
Grasp the air inlet grille panel extension and disengage the retainers from the top edge of the fender and the end of the air inlet grille panel.
