Body Harness Routing - Rear of Vehicle (1 of 2)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

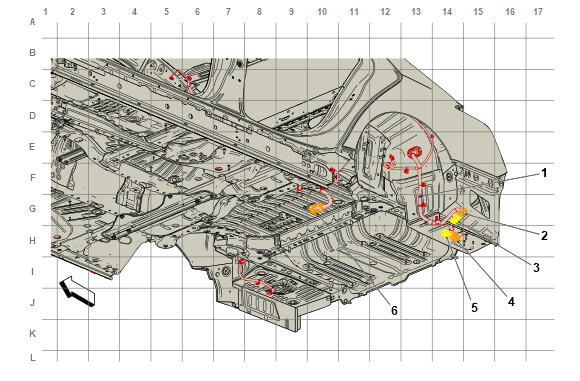

Body Harness Routing - Rear of Vehicle (1 of 2)
| Harness Name | Callout |
|---|---|
| J403 Body Wiring Harness | 1 |
| X410 Body Wiring Harness to Rear Object Alarm Sensor Wiring Harness X410 Body Wiring Harness to Rear Object Alarm Sensor Wiring Harness | 2 |
| X411 Body Wiring Harness to Rear Object Alarm Sensor Wiring Harness X411 Body Wiring Harness to Rear Object Alarm Sensor Wiring Harness | 3 |
| X331 Body Wiring Harness to Chassis Wiring Harness X331 Body Wiring Harness to Chassis Wiring Harness | 4 |
| X330 Body Wiring Harness to Chassis Wiring Harness X330 Body Wiring Harness to Chassis Wiring Harness | 5 |
| X350 Body Wiring Harness to Fuel Sender Wiring Harness X350 Body Wiring Harness to Fuel Sender Wiring Harness (-LF4)X350 Body Wiring Harness to Fuel Sender Wiring Harness (LF4) | 6 |
