X410 Body Wiring Harness to Rear Object Alarm Sensor Wiring Harness

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

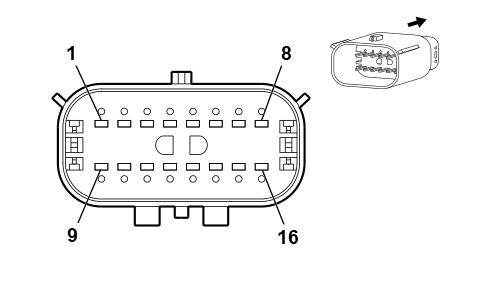

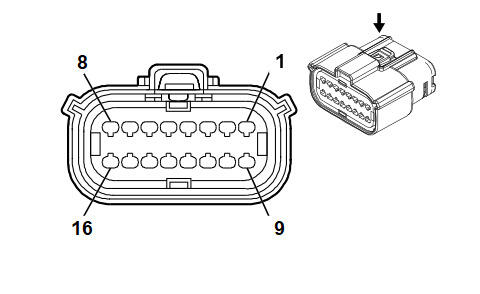

Connector Part Information Harness Type: Body Wiring Harness OEM Connector: 13778557 Service Connector: 13584788 Description: 16-Way F 1.5 Series, Sealed (BK)	Connector Part Information Harness Type: Rear Object Alarm Sensor Wiring Harness OEM Connector: 33372790 Service Connector: Service by Harness - See Part Catalog Description: 16-Way M 1.5 MX Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	19368973	J-35616-2A (GY)	J-38125-217
I	19368973	J-35616-2A (GY)	J-38125-217
II	Not required	J-35616-3 (GY)	No Tool Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.35	GN / GY	3569	I	-	Rear Closure Passive Entry Antenna Low Signal	1	0.5	GN / GY	3569	II	-
2	0.35	BN / GN	3568	I	-	Rear Closure Passive Entry Antenna High Signal	2	0.5	BN / GN	3568	II	-
3	-	WH / GY	4104	I	-	AUTOSAR CAN Bus [-] 8 Serial Data	3	-	-	-	-	-
4	-	BU / GY	4105	I	-	AUTOSAR CAN Bus [+] 8 Serial Data	4	-	-	-	-	-
5	-	-	-	-	-	Not Occupied	5	-	-	-	-	-
6	0.35	YE / WH	2377	I	-	Right Rear Middle Parking Assist Sensor Signal	6	0.35	YE / WH	2377	II	-
7	0.35	YE / VT	2378	I	-	Right Rear Outer Parking Assist Sensor Signal	7	0.35	YE / VT	2378	II	-
8	0.35	BK / GY	2379	I	-	Object Sensor Low Reference	8	0.35	BK / GY	2379	II	-
9	-	-	-	-	-	Not Occupied	9	-	-	-	-	-
10	0.5	BK / WH	2551	I	-	Signal Ground	10	0.35	BK	2550	II	-
11	0.5	RD / YE	6540	I	-	Battery Positive Voltage	11	0.35	RD / YE	6540	II	-
12	0.5 0.35	BU / VT BU / VT	4101 4101	I I	- (A45/UKL) A45	AUTOSAR CAN Bus [+] 4 Serial Data AUTOSAR CAN Bus [+] 4 Serial Data	12	0.5	BU / VT	4101	II	-
13	0.5 0.35	WH WH	4100 4100	I I	- (A45/UKL) A45	AUTOSAR CAN Bus [-] 4 Serial Data AUTOSAR CAN Bus [-] 4 Serial Data	13	0.5	WH	4100	II	-
14	-	-	-	-	-	Not Occupied	14	-	-	-	-	-
15	0.35 0.35	BU / GY WH / GY	4105 4104	I I	UKL -UKL	AUTOSAR CAN Bus [+] 8 Serial Data AUTOSAR CAN Bus [-] 8 Serial Data	15	0.5 0.5	BU / GY WH / GY	4105 4104	II II	UKL -UKL
16	0.35 0.35	WH / GY BU / GY	4104 4105	I I	UKL -UKL	AUTOSAR CAN Bus [-] 8 Serial Data AUTOSAR CAN Bus [+] 8 Serial Data	16	0.5 0.5	WH / GY BU / GY	4104 4105	II II	UKL -UKL
