X350 Body Wiring Harness to Fuel Sender Wiring Harness (LF4)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

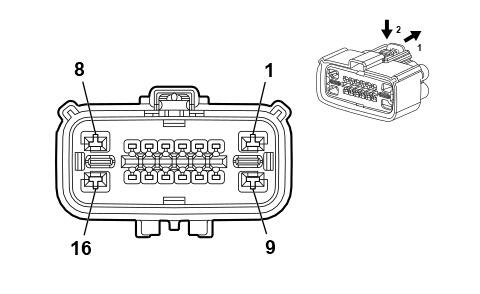

Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 35142877
- Service Connector: 84766506
- Description: 16-Way F 1.5, 2.8 MX Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Fuel Sender Wiring Harness
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
13576377 |
J-35616-35 (VT) |
J-38125-12A |
| II |
85528055 |
J-35616-2A (GY) |
J-38125-217 |
| III |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
2 |
RD / VT |
2640 |
I |
- |
Battery Positive Voltage |
1 |
2 |
RD / VT |
2640 |
III |
- |
| 2 |
0.5 |
BN / GN |
4305 |
II |
- |
Exhaust Flow Control Valve 1 |
2 |
0.5 |
BN / GN |
4305 |
III |
- |
| 3 |
0.5 |
BU / WH |
4306 |
II |
- |
Exhaust Flow Control Valve 1 - Cylinder Deactivation Feedback Signal |
3 |
0.5 |
BU / WH |
4306 |
III |
- |
| 4 |
0.5 |
VT / YE |
4317 |
II |
- |
Exhaust Flow Control Valve 2 - Cylinder Deactivation Feedback Signal |
4 |
0.5 |
VT / YE |
4317 |
III |
- |
| 5 |
0.5 |
WH |
4055 |
II |
- |
Private Serial Data Powertrain CAN Bus [+] Serial Data |
5 |
0.5 |
WH |
4055 |
III |
- |
| 6 |
0.5 |
BU / GY |
4054 |
II |
- |
Private Serial Data Powertrain CAN Bus [-] Serial Data |
6 |
0.5 |
BU / GY |
4054 |
III |
- |
| 7 |
- |
- |
- |
- |
- |
Exhaust Flapper Valve 3 Feedback Signal |
7 |
0.5 |
GY |
10145 |
III |
- |
| 8 |
- |
- |
- |
- |
- |
Exhaust Flow Control Valve 2 |
8 |
0.5 |
GN / VT |
4316 |
III |
- |
| 9 |
- |
- |
- |
- |
- |
Not Occupied |
9 |
- |
- |
- |
- |
- |
| 10 |
0.5 |
WH |
1310 |
II |
- |
EVAP Vent Solenoid Valve Control |
10 |
0.5 |
WH |
1310 |
III |
- |
| 11 |
0.5 |
VT / GN |
4320 |
II |
- |
Powertrain Sensor Bus Enable |
11 |
0.5 |
GN / BU |
4320 |
III |
- |
| 12 - 13 |
- |
- |
- |
- |
- |
Not Occupied |
12 - 13 |
- |
- |
- |
- |
- |
| 14 |
0.5 |
GN / GY |
465 |
II |
- |
Fuel Pump Primary Relay Control |
14 |
0.5 |
GN / GY |
465 |
III |
- |
| 15 |
- |
- |
- |
- |
- |
Exhaust Flapper Valve 4 Feedback Signal |
15 |
0.5 |
YE |
10146 |
III |
- |
| 16 |
2 |
BK |
2550 |
I |
- |
Ground |
16 |
2 |
BK |
2550 |
III |
- |
