Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove Air Cleaner Assembly -Air Cleaner Assembly Replacement
  2. Remove Fuel Injection Fuel Rail Assembly -Fuel Injection Fuel Rail Assembly Replacement
  3. Remove Vacuum Pump Assembly - Vacuum Pump Assembly Replacement
    4. Fig 1: Wiring Harness And Fastener
    GM4584630Courtesy of GENERAL MOTORS COMPANY
  4. Remove the wiring harness fastener (1) then reposition the wiring harness (2) as needed.
    5. Fig 2: Engine Wiring Harness Bolt And Retainer
    GM4584719Courtesy of GENERAL MOTORS COMPANY
  5. Remove Engine Wiring Harness Bolt.
  6. Remove Engine Wiring Harness Retainer (2) - [2x]
  7. Disconnect Electrical Connector (3).
  8. Remove Air Cleaner Outlet Duct@Turbocharger - Air Cleaner Outlet Duct Replacement
    9. Fig 3: PCV Valve Tube And Fastener
    GM4585166Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The positive crankcase ventilation valve and tube assembly (2) are not reusable. If reinstalling the camshaft cover, do not remove the PCV valve and tube assembly (2) from the camshaft cover.

  9. Remove the PCV valve tube fastener (1).
  10. Remove Turbocharger Coolant Return Pipe - Turbocharger Coolant Return Pipe Replacement (LYX)
  11. Remove Engine Lift Rear Bracket - Engine Lift Rear Bracket Replacement
  12. Remove the oil level indicator.

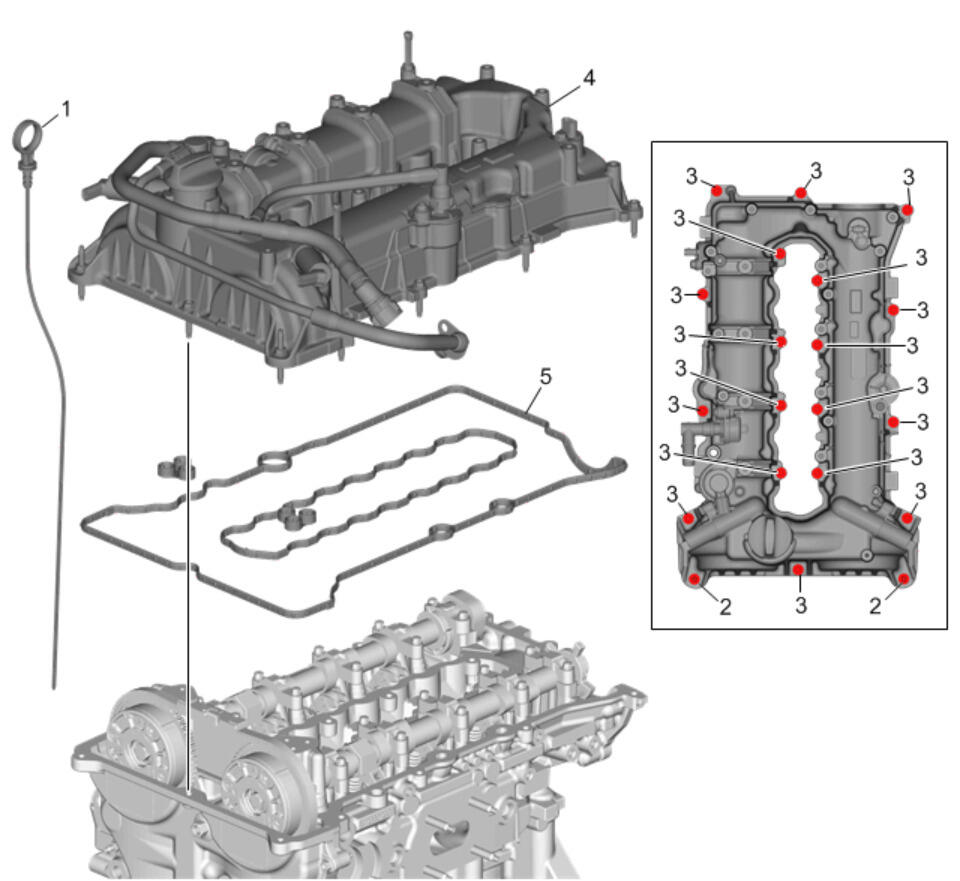

    13. Fig 4: Camshaft Cover and Gasket
    GM3599998Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Remove the camshaft cover with the PCV tubes attached.

  13. Remove Camshaft Cover (4) -Camshaft Cover Removal
  14. If reinstalling the camshaft cover, clean and inspect the cover, replace seals, gaskets and transfer components as needed.
  15. If replacing the camshaft cover, remove the following:
    1. Remove Camshaft Position Actuator Solenoid Valve - Intake - Camshaft Position Actuator Solenoid Valve Replacement - Intake
    2. Remove Camshaft Position Actuator Solenoid Valve - Exhaust - Camshaft Position Actuator Solenoid Valve Replacement - Exhaust
    3. Remove Camshaft Position Sensor - Camshaft Position Sensor Replacement - Intake
    4. Remove Camshaft Position Sensor - Camshaft Position Sensor Replacement - Exhaust
    5. Remove Camshaft Position Actuator Locating Pin Control Valve -Camshaft Position Actuator Locating Pin Control Valve Replacement
