Turbocharger Coolant Return Pipe Replacement (LYX)

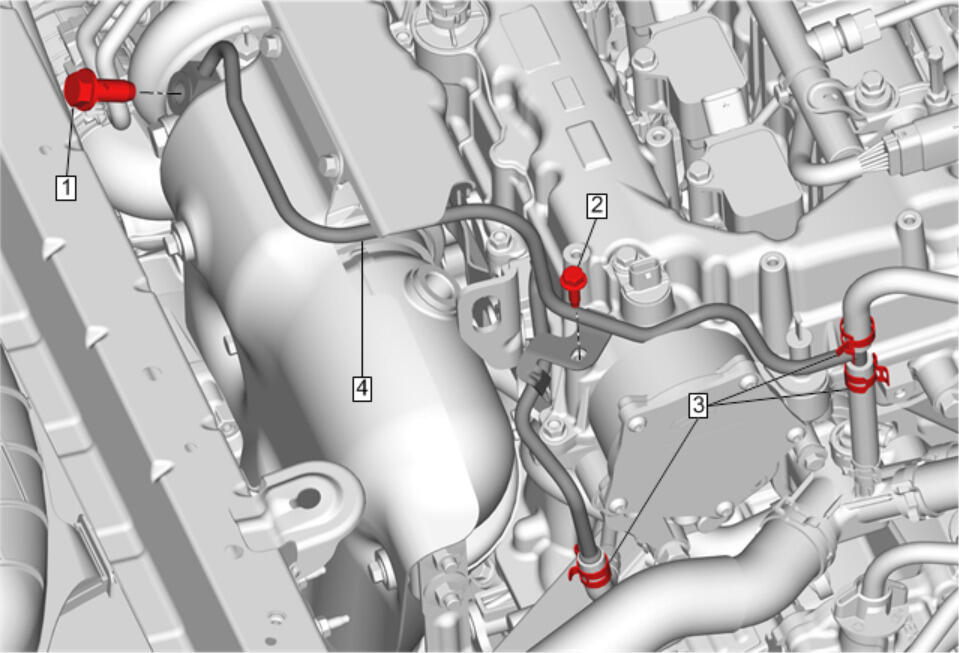

Fig 1: Turbocharger Coolant Return Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Cooling System Draining and Filling (GE 47716) Cooling System Draining and Filling (Static) Intake Manifold Cover Replacement Disconnect the heated oxygen sensor electrical connector. Reposition Charge Air Cooler Outlet Air Tube Replacement
1	Turbocharger Coolant Return Pipe Hollow Screw CAUTION: Refer to Fastener Caution . Tighten 35 N.m (26 lb ft)
2	Turbocharger Coolant Return Pipe Fastener Tighten 10 N.m (89 lb in)
3	Clamp [3x] Procedure Install a NEW clamp. Hose Clamp Replacement Guidelines - Spring Type
4	Turbocharger Coolant Return Pipe
