Camshaft Position Actuator Solenoid Valve Replacement - Intake

WARNING: This page is about a different variant/trim than selected.

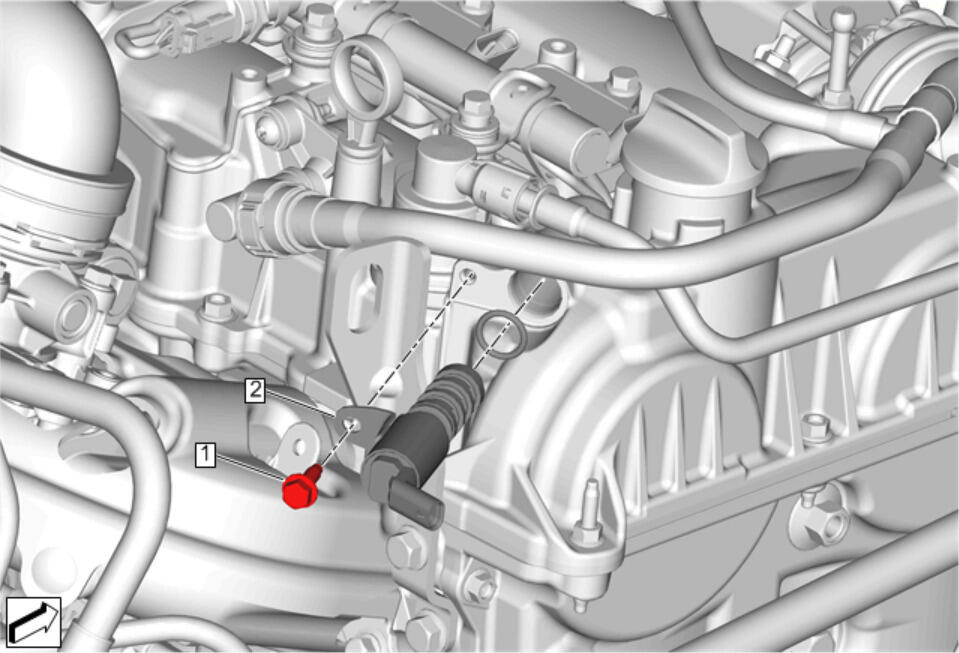

Fig 1: Camshaft Position Actuator Solenoid Valve - Intake

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement
1	Camshaft Position Actuator Solenoid Valve Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Camshaft Position Actuator Solenoid Valve Procedure Disconnect the electrical connector. Install a NEW O-ring seal.

Callout

Component Name

Camshaft Position Actuator Solenoid Valve Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Camshaft Position Actuator Solenoid Valve

Procedure
