Right Passenger Components (Crew Cab)

Right Passenger Components (Crew Cab)

Items
1. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1K73 Telematics Communication Interface Control Module X2K73 Telematics Communication Interface Control Module X5 (UE1)K73 Telematics Communication Interface Control Module X7 (UE1)
2. F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right
3. B63RR Side Impact Sensor - Right Rear B63RR Side Impact Sensor - Right Rear
4. F112P Seat Belt Retractor Pretensioner - Passenger F112P Seat Belt Retractor Pretensioner - Passenger
5. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X1X51A Fuse Block - Instrument Panel X2X51A Fuse Block - Instrument Panel X3X51A Fuse Block - Instrument Panel X3 ((LCV/LFX)+N8D)X51A Fuse Block - Instrument Panel X3X51A Fuse Block - Instrument Panel X3 (LWN)
6. K69 Transfer Case Control Module (NQ6/NQ7) K69 Transfer Case Control Module X1K69 Transfer Case Control Module X2K69 Transfer Case Control Module X3
7. T15 Navigation Antenna Signal Splitter (IO6) T15 Navigation Antenna Signal Splitter X1 (IO6)T15 Navigation Antenna Signal Splitter X2 (IO6)T15 Navigation Antenna Signal Splitter X3 (IO6)

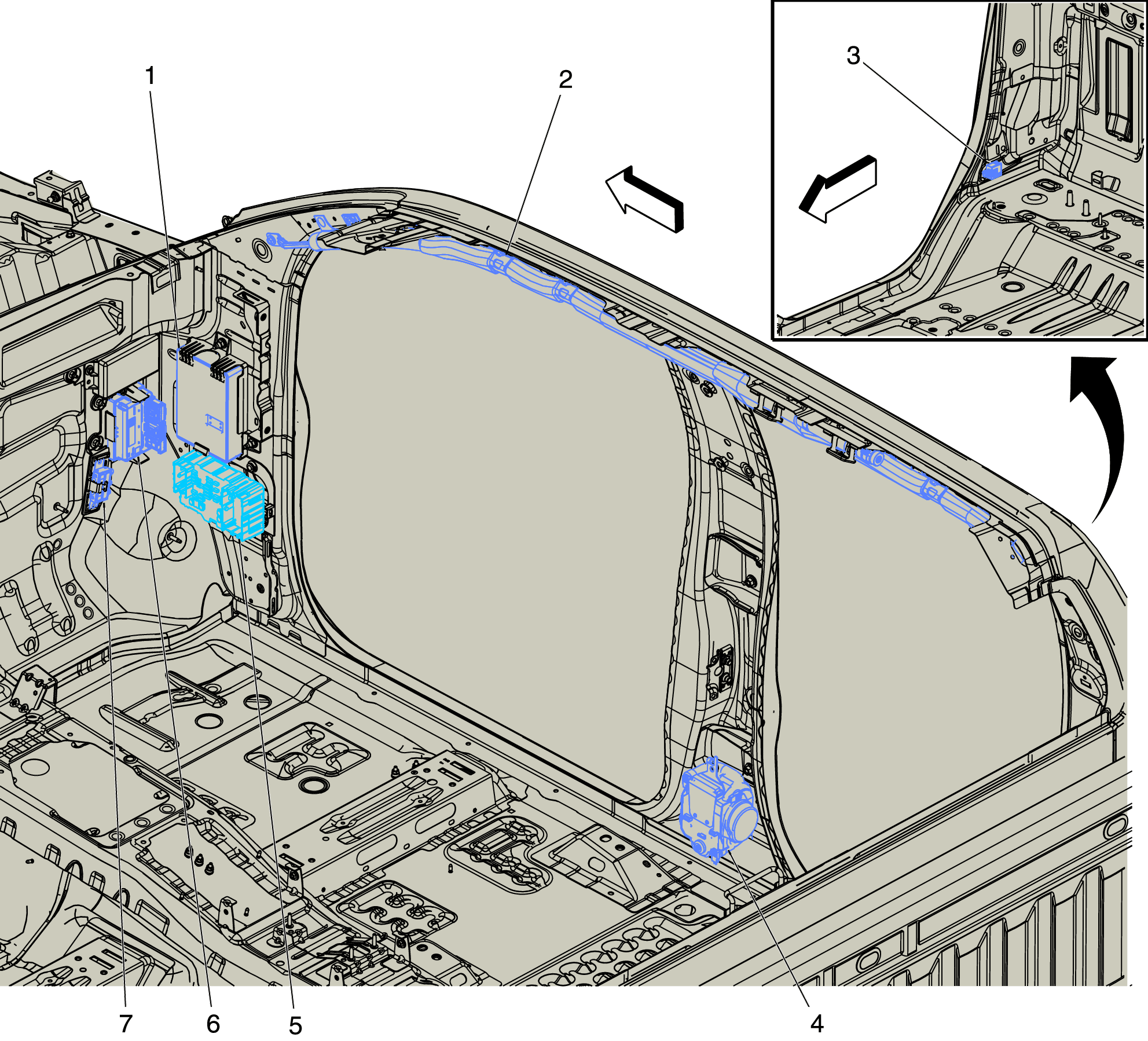

Fig 1: Right Passenger Components (Crew Cab)

Courtesy of GENERAL MOTORS COMPANY
