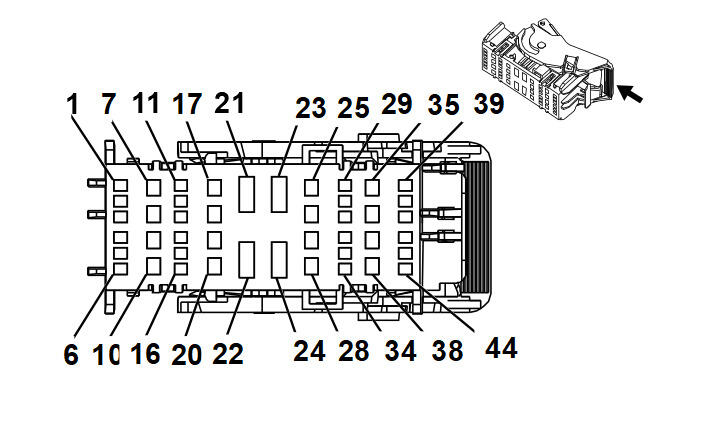

X51A Fuse Block - Instrument Panel X2
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13967688
- Service Connector: 19329456
- Description: 44-Way F 1.5, 2.8, 800 Metri-Pack Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19300649 |
J-35616-16 (LT GN) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
19301752 |
J-35616-35 (VT) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
19301761 |
J-35616-35 (VT) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| IV |
19301767 |
J-35616-2A (GY) |
J-38125-560 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
IV |
- |
| 4 |
0.35 |
BN |
6136 |
Control |
IV |
- |
| 5 |
0.5 |
RD/BU |
540 |
Battery Positive Voltage |
IV |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
2.5 |
RD/VT |
4040 |
Battery Positive Voltage |
II |
- |
| 8 |
0.35 |
RD/WH |
6440 |
Battery Positive Voltage |
I |
- |
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
1.5 |
VT |
2101 |
Retained Accessory Power Fuse Ignition |
II |
- |
| 11 - 13 |
- |
- |
- |
Not Occupied |
- |
- |
| 14 |
0.5 |
RD/VT |
340 |
Battery Positive Voltage |
IV |
- |
| 15 |
0.5 |
VT/WH |
1139 |
Run/Crank Ignition 1 Voltage |
IV |
- |
| 16 - 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
2.5 |
RD/GN |
2440 |
Battery Positive Voltage |
II |
- |
| 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
1.5 |
VT |
1701 |
Retained Accessory Power Ignition |
II |
- |
| 21 - 24 |
- |
- |
- |
Not Occupied |
- |
- |
| 25 |
0.5 |
RD/VT |
3340 |
Battery Positive Voltage |
I |
- |
| 26 |
- |
- |
- |
Not Occupied |
- |
- |
| 27 |
0.5 |
RD/WH |
640 |
Battery Positive Voltage |
I |
- |
| 28 |
0.5 |
VT/BK |
1639 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 29 - 34 |
- |
- |
- |
Not Occupied |
- |
- |
| 35 |
1 |
RD/VT |
340 |
Battery Positive Voltage |
III |
- |
| 36 |
- |
- |
- |
Not Occupied |
- |
- |
| 37 |
0.35 |
VT/GY |
539 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 38 |
0.5 |
VT/GN |
1739 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 39 - 43 |
- |
- |
- |
Not Occupied |
- |
- |
| 44 |
0.75 |
BK |
2050 |
Ground |
IV |
- |
