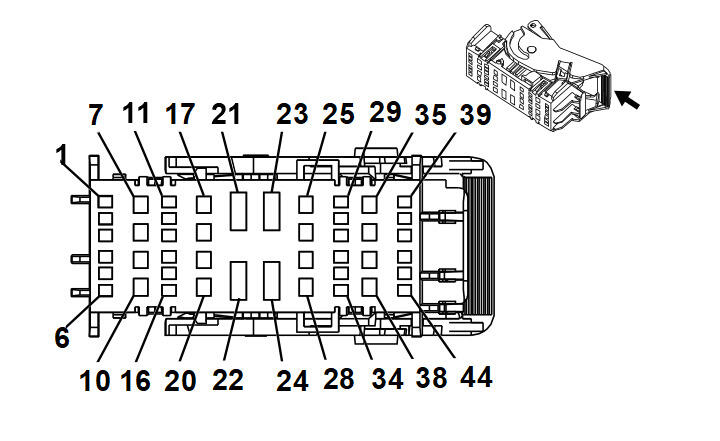

X51A Fuse Block - Instrument Panel X1
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13967687
- Service Connector: 19329455
- Description: 44-Way F 1.5, 2.8, 800 Metri-Pack Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19301752 |
J-35616-35 (VT) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
19301767 |
J-35616-2A (GY) |
J-38125-560 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
Not Required |
J-35616-44 (YE) |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
RD/BN |
2240 |
Battery Positive Voltage |
II |
- |
| 2 |
0.5 |
RD/GY |
2840 |
Battery Positive Voltage |
II |
- |
| 3 |
0.35 |
RD/YE |
3040 |
Battery Positive Voltage |
II |
- |
| 4 |
0.5 |
RD/GY |
2140 |
Battery Positive Voltage |
II |
- |
| 5 |
0.5 |
RD/GN |
4440 |
Battery Positive Voltage |
II |
- |
| 6 - 13 |
- |
- |
- |
Not Occupied |
- |
- |
| 14 |
0.35 |
RD/BU |
3240 |
Battery Positive Voltage |
II |
- |
| 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.35 |
RD/VT |
1940 |
Battery Positive Voltage |
II |
- |
| 17 |
2.5 |
RD/YE |
3740 |
Battery Positive Voltage |
I |
- |
| 18 |
1.5 |
RD/WH |
2740 |
Battery Positive Voltage |
I |
- |
| 19 |
1.5 |
RD/VT |
2640 |
Battery Positive Voltage |
I |
- |
| 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
10 |
RD/VT |
842 |
Battery Positive Voltage |
III |
- |
| 22 |
- |
- |
- |
Not Occupied |
- |
- |
| 23 |
10 |
RD/BU |
42 |
Battery Positive Voltage |
III |
- |
| 24 |
- |
- |
- |
Not Occupied |
- |
- |
| 25 |
2.5 |
RD/BU |
1240 |
Battery Positive Voltage |
I |
- |
| 26 |
- |
- |
- |
Not Occupied |
- |
- |
| 27 |
2.5 |
RD/YE |
5040 |
Battery Positive Voltage |
I |
- |
| 28 - 29 |
- |
- |
- |
Not Occupied |
- |
- |
| 30 |
0.75 |
VT/BK |
1239 |
Run/Crank Ignition 1 Voltage |
II |
- |
| 31 |
- |
- |
- |
Not Occupied |
- |
- |
| 32 |
0.35 |
VT/GN |
1739 |
Run/Crank Ignition 1 Voltage |
II |
- |
| 33 - 34 |
- |
- |
- |
Not Occupied |
- |
- |
| 35 |
2.5 |
RD/WH |
1340 |
Battery Positive Voltage |
I |
- |
| 36 |
2.5 |
RD/BN |
1440 |
Battery Positive Voltage |
I |
- |
| 37 - 41 |
- |
- |
- |
Not Occupied |
- |
- |
| 42 |
0.35 |
GN/VT |
5199 |
Run/Crank Relay Coil Control |
II |
- |
| 43 |
0.35 |
GY/VT |
755 |
RAP Relay Coil Control |
II |
- |
| 44 |
0.35 |
VT |
801 |
Retained Accessory Power Fuse Control |
II |
- |
