Radio Speaker Amplifier Replacement

Courtesy of GENERAL MOTORS COMPANY

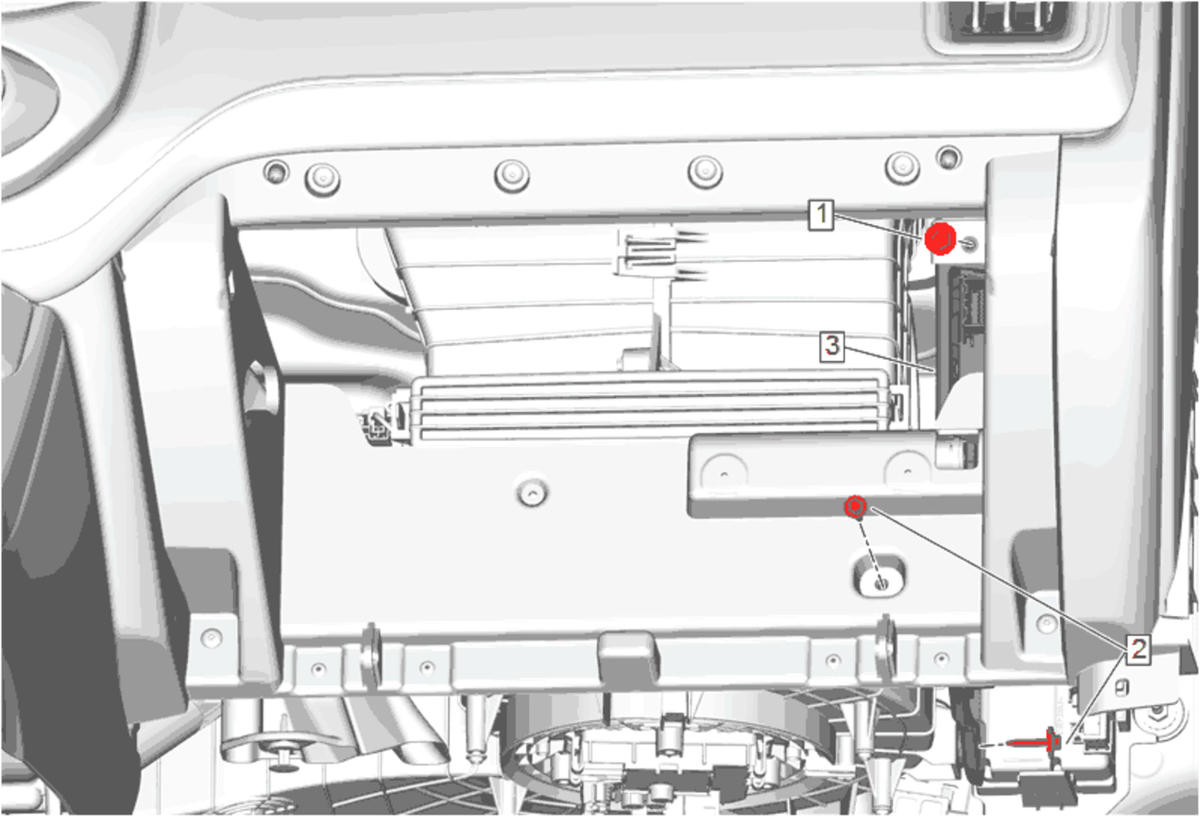

Callout	Component Name
Preliminary Procedure Instrument Panel Outer Trim Cover Replacement Body Hinge Pillar Garnish Molding Replacement (Left Side)Body Hinge Pillar Garnish Molding Replacement (Right Side) Instrument Panel Compartment Door Replacement Instrument Panel Lower Trim Panel Insulator Replacement Disconnect the blower motor electrical connector and reposition the electrical harness.
1	Radio Speaker Amplifier Fastener - Upper CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Radio Speaker Amplifier Fastener - Lower [2x] Tighten 2.5 N.m (22 lb in)
3	Radio Speaker Amplifier Procedure Disconnect the electrical connectors.
