Body Hinge Pillar Garnish Molding Replacement (Right Side)

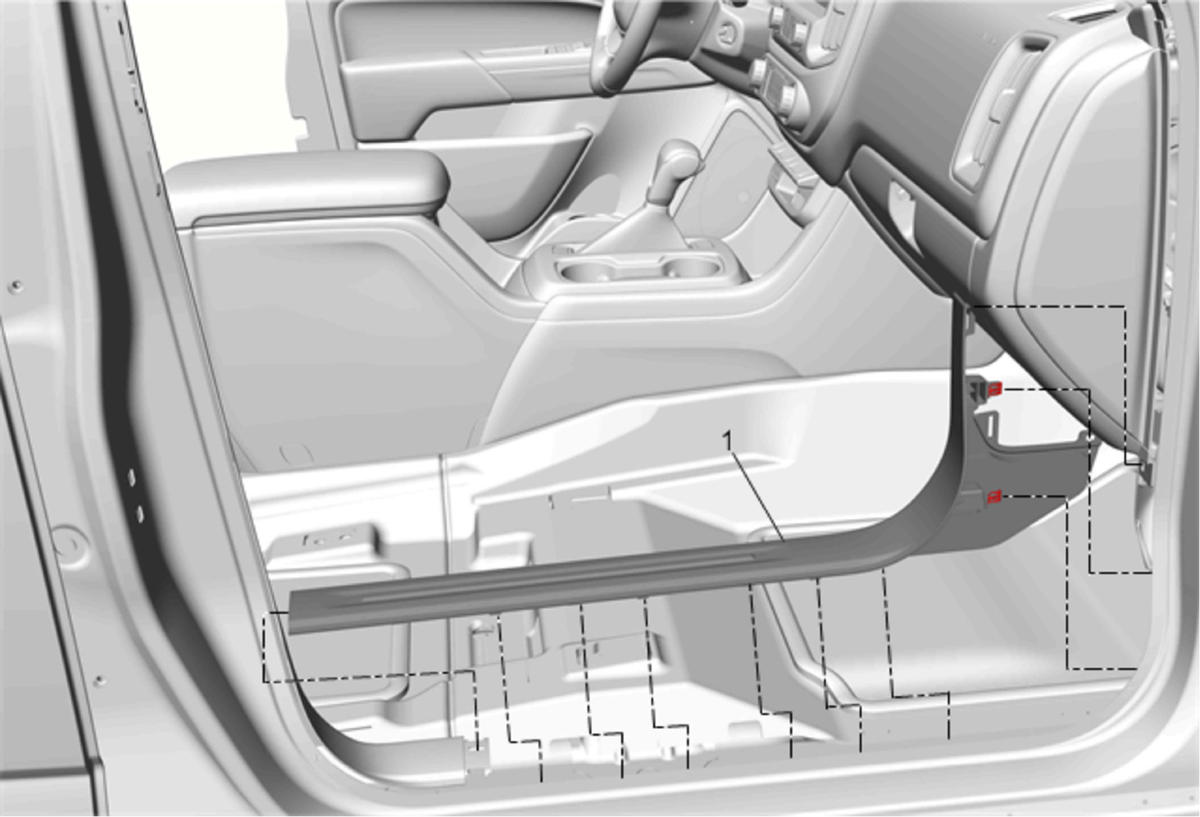

GM3814589

Callout

Component Name

Preliminary Procedure
Remove the front compartment fuse block cover. Refer to Front Compartment Fuse Block Cover Replacement .

1

Body Hinge Pillar Garnish Molding Assembly - Right Side

Procedure

Starting at the rear of the garnish molding, pull upward at the B-Pillar joint to disengage garnish molding.
Work your way forward disengaging all of the garnish molding clips then pull rearward to disengage the 2 clips on the forward vertical wall.
Reposition the front floor panel carpet as needed.
