Instrument Panel Outer Trim Cover Replacement
Instrument Panel Outer Trim Cover Replacement

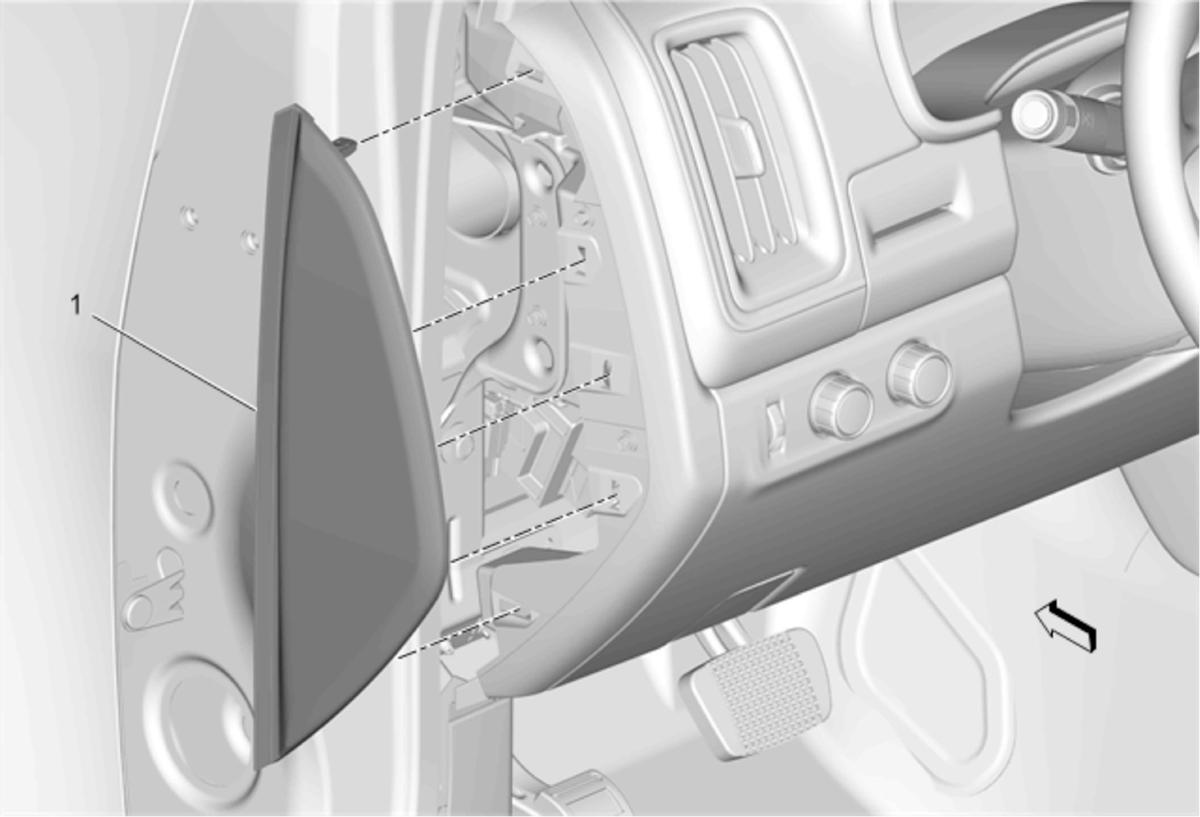

Callout
Component Name
1
Instrument Panel Outer Trim Cover
Procedure
Use a flat bladed plastic trim tool to aid in the removal of the cover from the instrument panel assembly.
NOTE:
Left instrument panel outer trim cover shown, right side similar.
