Removal Procedure

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Suspension components attached to the frame use Torque-to-Yield fasteners and must be DISCARDED and replaced with NEW Torque Angle Yield (TAY) fasteners. The frame to body fasteners are not TAY fasteners.

NOTE:

Vehicle alignment is not required if the cradle is being lowered or dropped to perform another procedure. This vehicle is equipped with a cradle to body aligning feature: cradle to body through holes or self-aligning pins that are part of the cradle or body. Only align if replacing the cradle with a NEW part and transferring components.

  1. Using mechanics wire, support the radiator and AC condenser assembly to the vehicle body.
  2. Install the engine support fixture. Engine Support Fixture
    3. Fig 1: Vacuum Filter
    GM2780480Courtesy of GENERAL MOTORS COMPANY
  3. If equipped with vacuum controlled engine mounts, disconnect the vacuum filter (1) from the radiator assembly.
    4. Fig 2: Left Engine Mount Fastener
    GM2779637Courtesy of GENERAL MOTORS COMPANY
  4. Remove the left engine mount fastener (1).
  5. Raise and support the vehicle. Lifting and Jacking the Vehicle (Base)
    6. Fig 3: Right Engine Mount Fastener
    GM2779687Courtesy of GENERAL MOTORS COMPANY
  6. Remove the right engine mount fastener (1).
  7. Remove the front wheels. Tire and Wheel Removal and Installation (Non V-Series)
  8. Remove the lower noise shield. Engine Compartment Lower Noise Shield Replacement
  9. Remove the front wheelhouse panel splash shields. Front Wheelhouse Splash Shield Replacement (AWD) Front Wheelhouse Splash Shield Replacement (RWD)
  10. Remove the front air deflector. Front Air Deflector Replacement
    11. Fig 4: Jack Pad
    GM2812200Courtesy of GENERAL MOTORS COMPANY
  11. Remove the jack pad fasteners (2) and jack pad (1) from the frame.
    12. Fig 5: Electric Power Steering Electrical Connectors
    GM2780190Courtesy of GENERAL MOTORS COMPANY
  12. Disconnect the electric power steering electrical connectors (1). FEP Connectors (Steering Gear)
  13. Disconnect the lower steering intermediate shaft (1) from the electric power steering assembly (2). Intermediate Steering Shaft Replacement (RWD)Intermediate Steering Shaft Replacement (AWD)
  14. If equipped, disconnect the electrical connectors from the engine mount vacuum control solenoids (2).

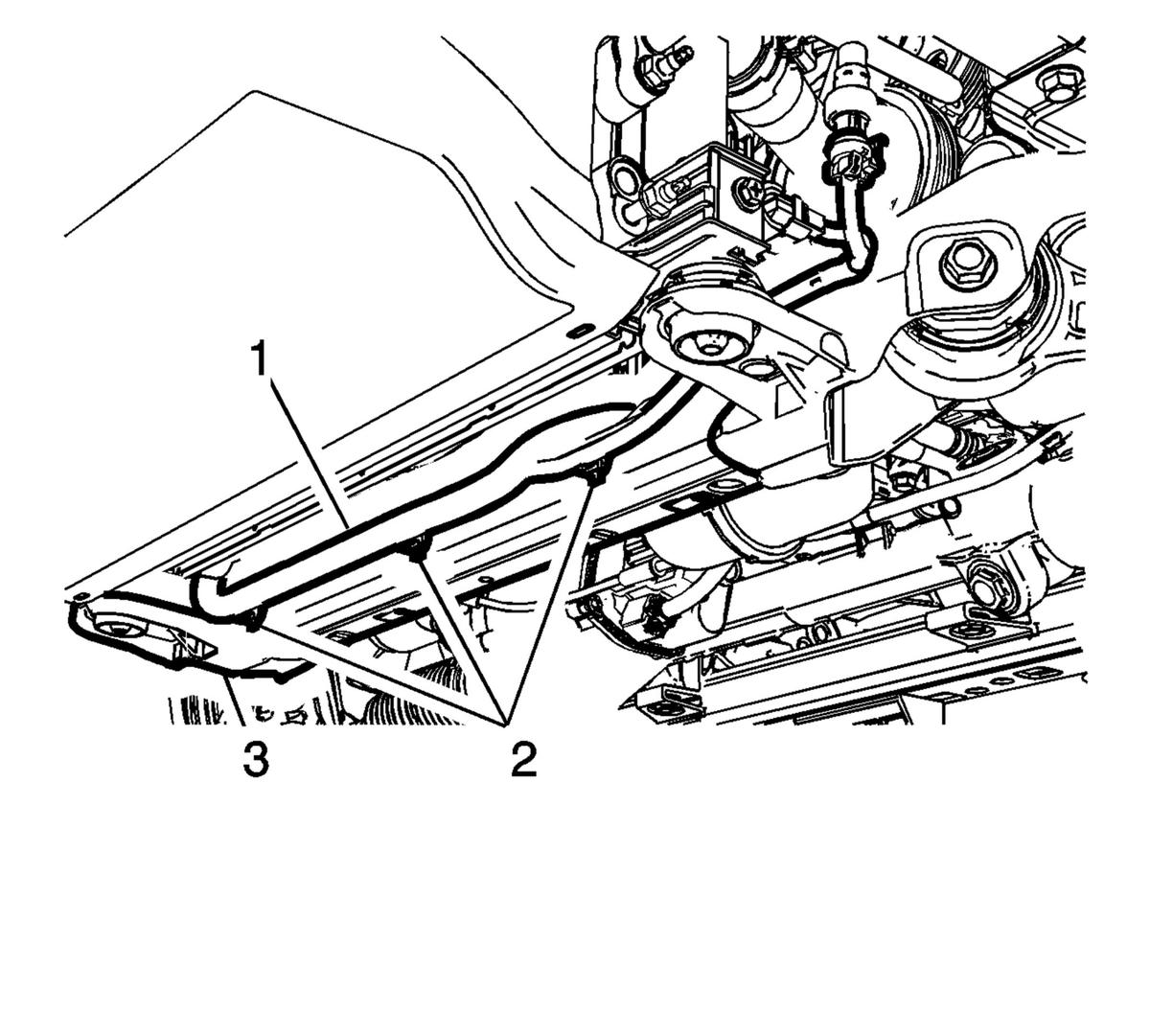

    15. Fig 6: Electrical Harness
    GM2780377Courtesy of GENERAL MOTORS COMPANY
  15. Disconnect the electrical harness (1) from the frame (3).
    16. Fig 7: Frame Brace & Fasteners (RWD)
    GM3749726Courtesy of GENERAL MOTORS COMPANY
  16. For RWD, remove the frame brace fasteners (1 and 2).
  17. Remove the frame brace (3) from the vehicle.

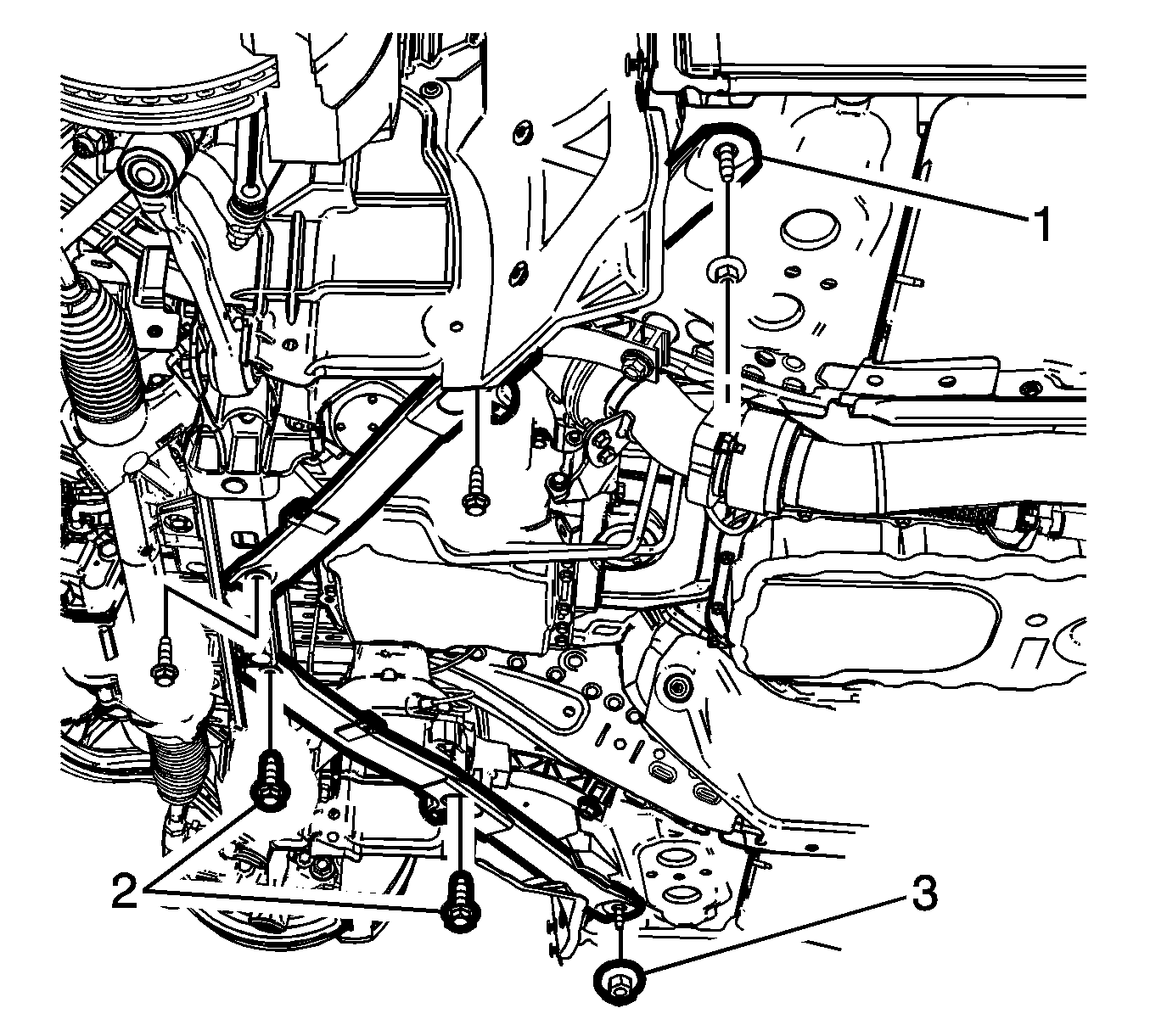

    18. Fig 8: Frame Brace & Fasteners (AWD)
    GM2779522Courtesy of GENERAL MOTORS COMPANY
  18. For AWD, remove the frame brace fasteners (2 and 3).
  19. Remove the frame braces (1) from the vehicle.
    20. Fig 9: Engine Mount Vacuum Line
    GM2780499Courtesy of GENERAL MOTORS COMPANY
  20. If equipped, disconnect the engine mount vacuum line (1).
  21. Disconnect the right and left lower stabilizer shaft links from the stabilizer bar. Stabilizer Shaft Link Replacement (Non V-Series)
  22. Disconnect the outer tie rod ends from the steering knuckles. Steering Linkage Outer Tie Rod Replacement (Non V-Series)
  23. Disconnect the front lower control front links from the front suspension frame. Front Lower Control Front Link Replacement (Non V-Series With RWD)Front Lower Control Front Link Replacement (Non V-Series With AWD)
  24. Disconnect the front lower control rear links from the front suspension frame. Front Lower Control Rear Link Replacement (Non V-Series)
    25. Fig 10: Electronic Level Sensor & Electrical Connector
    GM2868517Courtesy of GENERAL MOTORS COMPANY
  25. Disconnect the ride height sensor (2) connector from the ride height sensor (1).
  26. Remove the front wheel drive shafts. Front Wheel Drive Shaft Replacement - Left Side , and Front Wheel Drive Shaft Replacement - Right Side

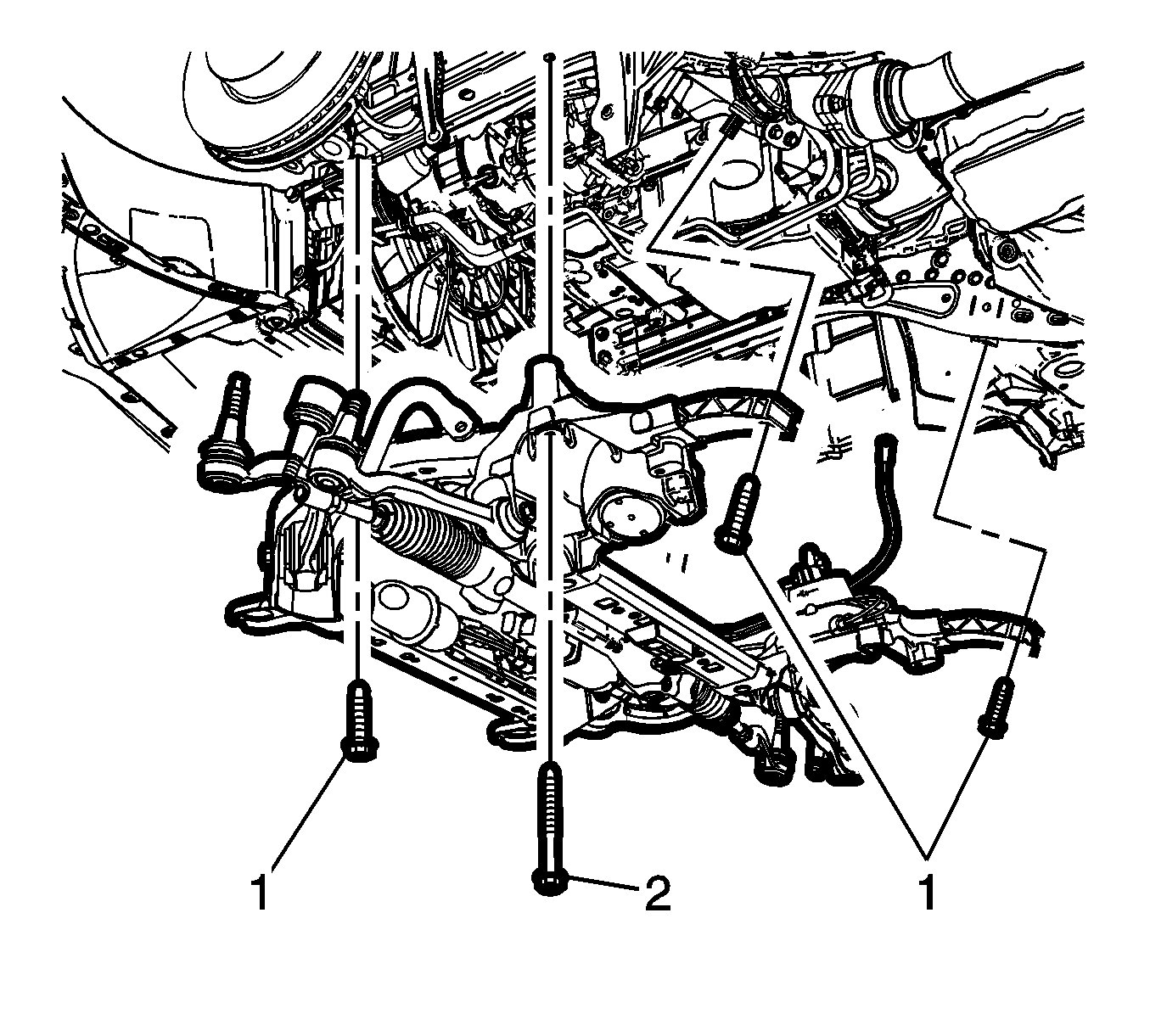

    27. Fig 11: Frame Mounting Points
    GM2780896Courtesy of GENERAL MOTORS COMPANY
  27. Install J-39580  stand under the frame.
  28. Lower the vehicle to the frame support table.
  29. Remove the six frame mounting bolts (1, 2).
  30. With the aid of an assistant, carefully raise the body from the frame.
  31. Ensure when raising the body the following items are clear from the frame:
    • Vacuum lines
    • Steering knuckles
    • Electrical wiring harnesses
    • Oil coolers lines
    32. Fig 12: Frame Transfer Components
    GM2781658Courtesy of GENERAL MOTORS COMPANY
  32. If the frame is being replaced, transfer the following components to the new frame;
    33. Fig 13: Vacuum Controlled Engine Mount System
    GM2781062Courtesy of GENERAL MOTORS COMPANY
  33. If equipped with vacuum controlled engine mounts, transfer the vacuum system (1) from the frame.
  34. Install the vacuum solenoid (2) fasteners and tighten to 9 N.m (80 lb in).
    35. Fig 14: Vacuum Tank
    GM2781109Courtesy of GENERAL MOTORS COMPANY
  35. Install the vacuum tank fastener (1) and tighten to 9 N.m (80 lb in).
  36. With the aid of an assistant, remove the frame from the support fixture.
