Stabilizer Shaft Replacement (Non V-Series With AWD)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

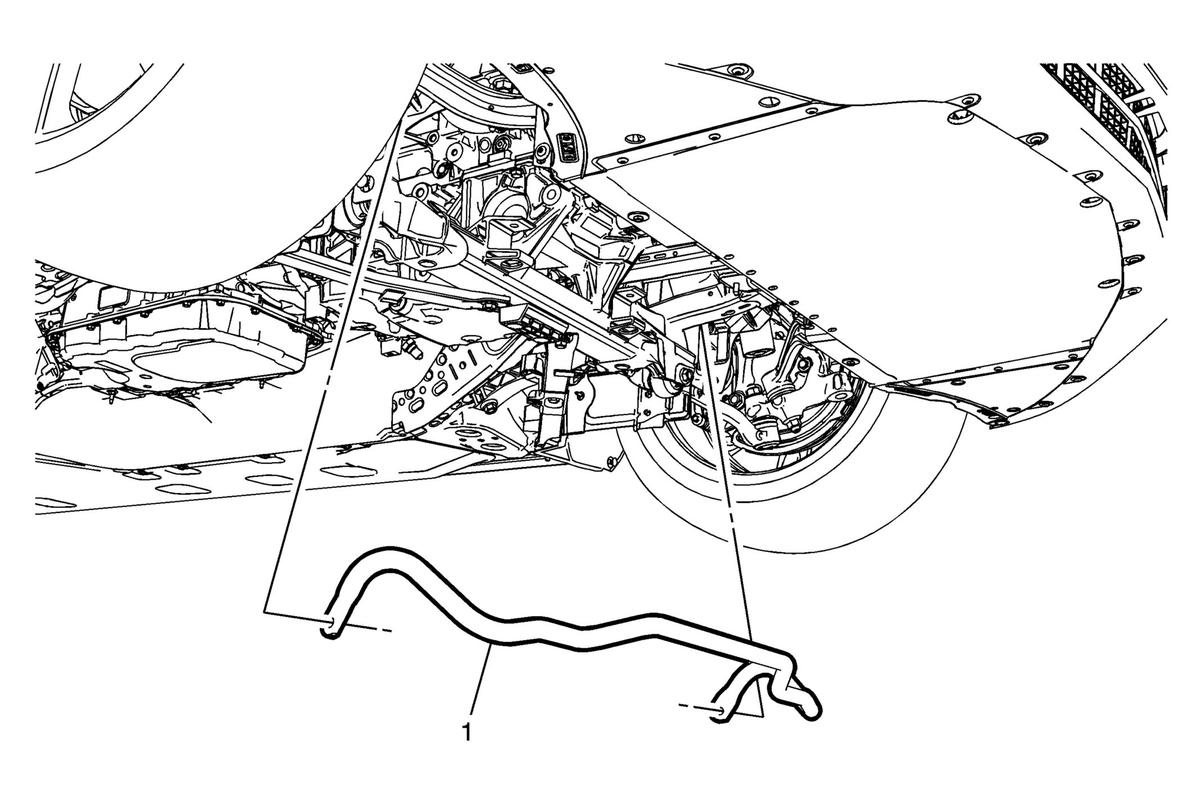

Fig 1: Stabilizer Shaft (Non V-Series With AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Air Deflector Replacement Engine Compartment Lower Noise Shield Replacement Front Wheelhouse Splash Shield Replacement (AWD) Front Stabilizer Shaft Link@Front Stabilizer Shaft - Separate - Stabilizer Shaft Link Replacement (Non V-Series) Electric Belt Drive Rack and Pinion Steering Gear Replacement (Non V-Series With AWD) Place match marks on the OLD front stabilizer shaft to mark the positions of the front stabilizer shaft bushings. Copy the match marks from the OLD parts to the NEW parts to aid in installation. Stabilizer Shaft Insulator Replacement (Non V-Series With AWD Only) - Remove
1	Front Stabilizer Shaft

Callout

Component Name

Preliminary Procedures

Front Air Deflector Replacement
Engine Compartment Lower Noise Shield Replacement
Front Wheelhouse Splash Shield Replacement (AWD)
Front Stabilizer Shaft Link@Front Stabilizer Shaft - Separate - Stabilizer Shaft Link Replacement (Non V-Series)
Electric Belt Drive Rack and Pinion Steering Gear Replacement (Non V-Series With AWD)
Place match marks on the OLD front stabilizer shaft to mark the positions of the front stabilizer shaft bushings. Copy the match marks from the OLD parts to the NEW parts to aid in installation.
Stabilizer Shaft Insulator Replacement (Non V-Series With AWD Only) - Remove

Front Stabilizer Shaft
