Turn Signal Switch Bracket Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

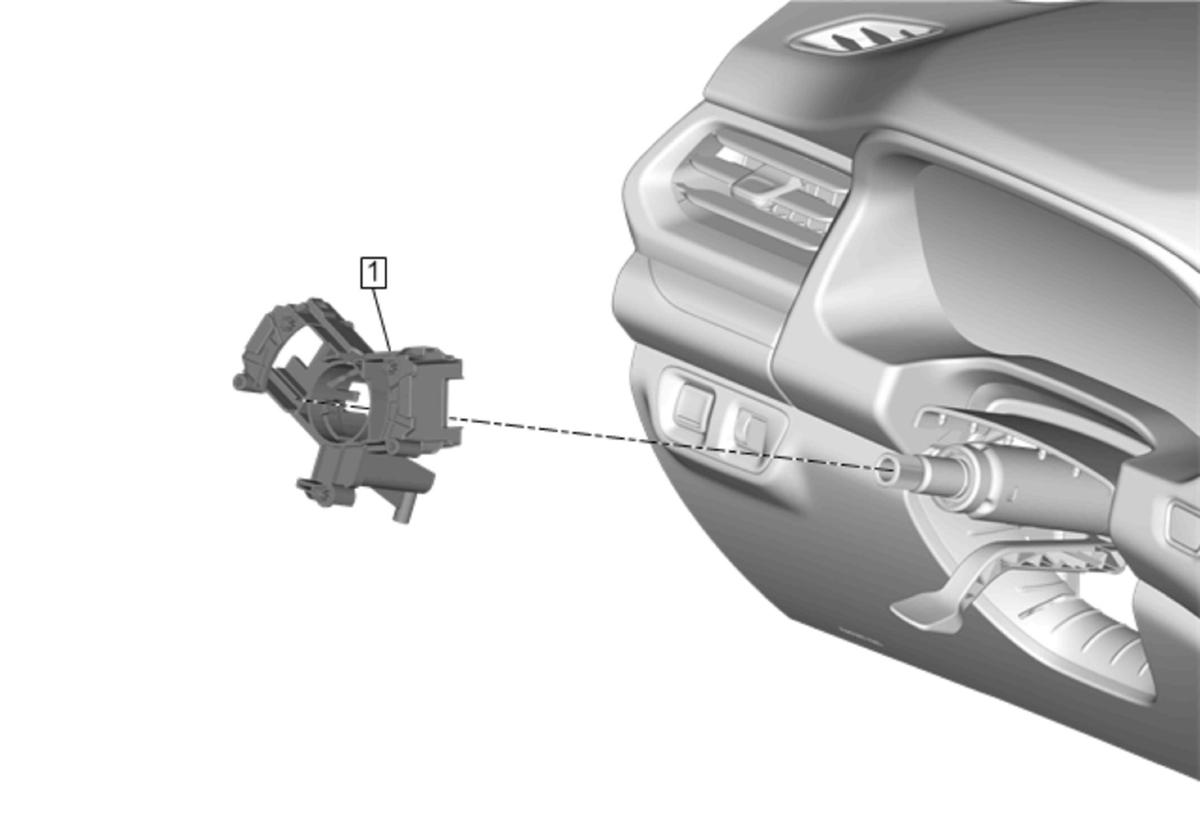

Fig 1: Turn Signal Switch Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Steering Wheel Airbag Coil Replacement Turn Signal Switch Replacement Windshield Wiper and Washer Switch Replacement
1	Turn Signal Switch Bracket Procedure Release the retaining tabs and remove the turn signal switch bracket from the steering column.

Callout

Component Name

Preliminary Procedures

Steering Wheel Airbag Coil Replacement
Turn Signal Switch Replacement
Windshield Wiper and Washer Switch Replacement

Turn Signal Switch Bracket
Procedure
Release the retaining tabs and remove the turn signal switch bracket from the steering column.
