Steering Wheel Airbag Coil Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

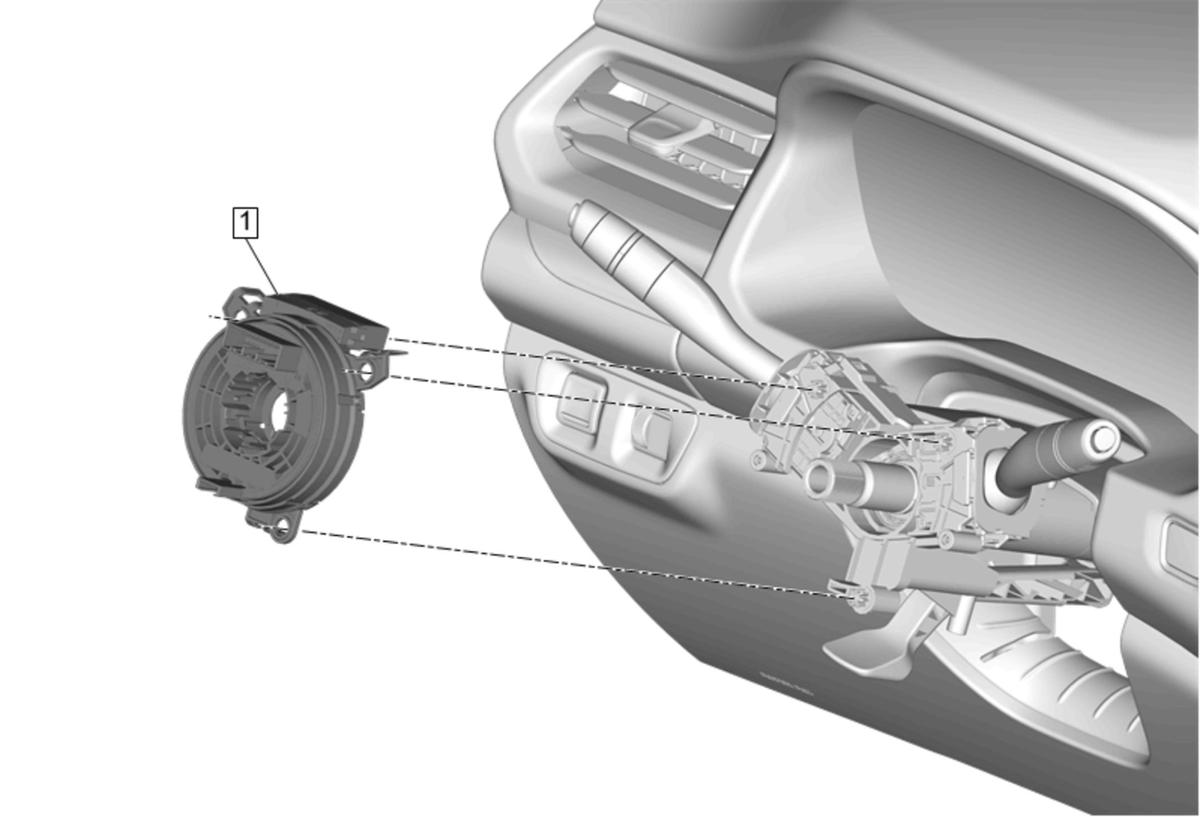

Fig 1: Steering Wheel Airbag Coil

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Steering Wheel Replacement Steering Column Lower Trim Cover Replacement (RPO N38)Steering Column Lower Trim Cover Replacement (RPO N37)
1	Steering Wheel Airbag Coil Procedure Disconnect the electrical connectors. Release the retaining tabs and remove the steering wheel airbag coil from the steering column. Ensure the steering wheel airbag coil is CENTERED during installation. Airbag Steering Wheel Module Coil Centering

Callout

Component Name

Preliminary Procedures

Steering Wheel Replacement
Steering Column Lower Trim Cover Replacement (RPO N38)Steering Column Lower Trim Cover Replacement (RPO N37)

Steering Wheel Airbag Coil

Procedure

Disconnect the electrical connectors.
Release the retaining tabs and remove the steering wheel airbag coil from the steering column.
Ensure the steering wheel airbag coil is CENTERED during installation. Airbag Steering Wheel Module Coil Centering
