Turn Signal Switch Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

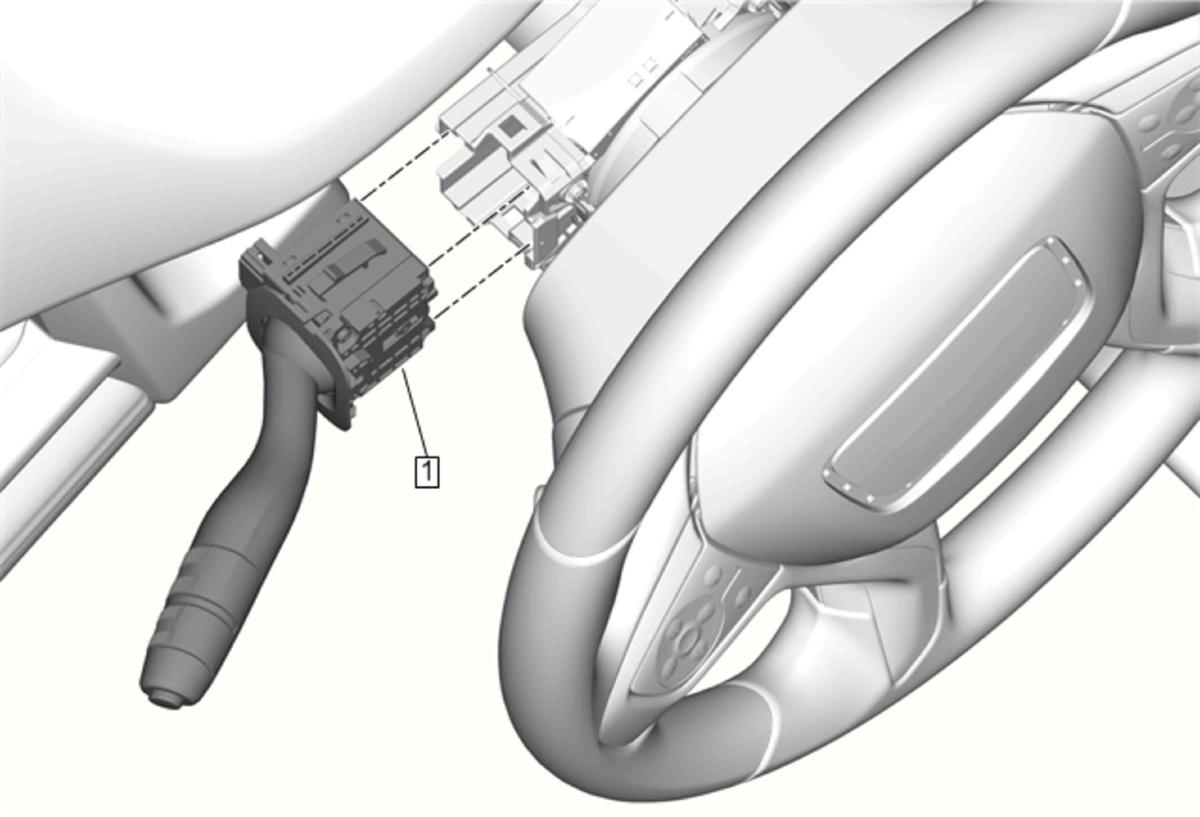

Fig 1: Turn Signal Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Column Lower Trim Cover Replacement (RPO N38) Steering Column Lower Trim Cover Replacement (RPO N37)
1	Turn Signal Switch Procedure Disconnect the electrical connector. Release the retaining tabs and remove the turn signal switch from the turn signal switch bracket.

Callout

Component Name

Preliminary Procedure
Steering Column Lower Trim Cover Replacement (RPO N38) Steering Column Lower Trim Cover Replacement (RPO N37)

Turn Signal Switch

Procedure

Disconnect the electrical connector.
Release the retaining tabs and remove the turn signal switch from the turn signal switch bracket.
