Load Floor Trim Panel Replacement (All Terrain)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

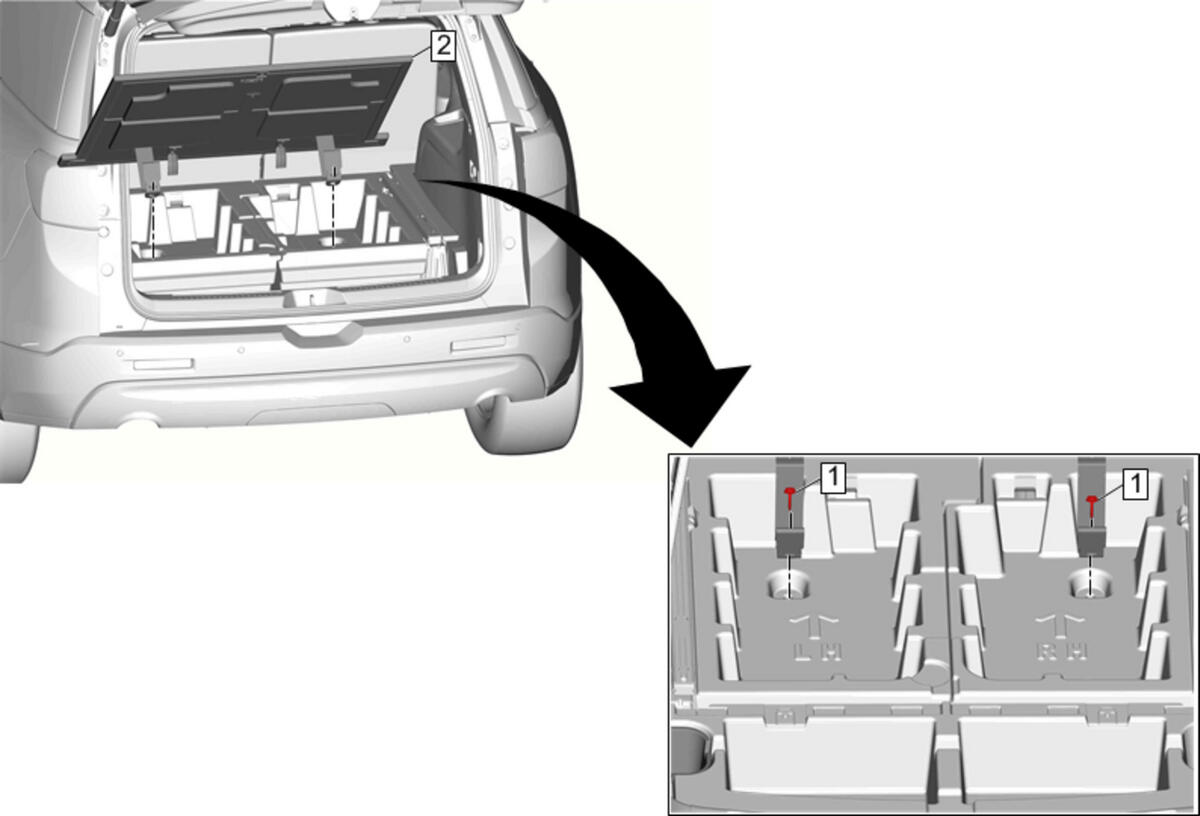

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Compartment Floor Stowage Compartment Tray Replacement (All Terrain) |
|
| 1 | Cargo Net Front Bracket Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution .
NOTE:
Open the load floor trim panel to access the fasteners. Tighten 4.5 N.m (40 lb in) |
| 2 | Load Floor Trim Panel |
